Quick-Start Guide; Figure 1A: Ir400 With Junction Box; Figure 1B: Ir400 With European Junction Box - General Monitors IR400 Manual

Model IR400

Quick-Start Guide

Mounting and Orientation
The Model IR400 should be mounted horizontally (Figure 1a/Figure 1b) to reduce the likelihood
of dirt and dust build-up on the windows. For optimum performance, the splashguards should
be located on the top and bottom as shown in Figure 1a/Figure 1b. Apply the supplied thread
lubricant/sealant to all conduit entries before use to prevent binding.

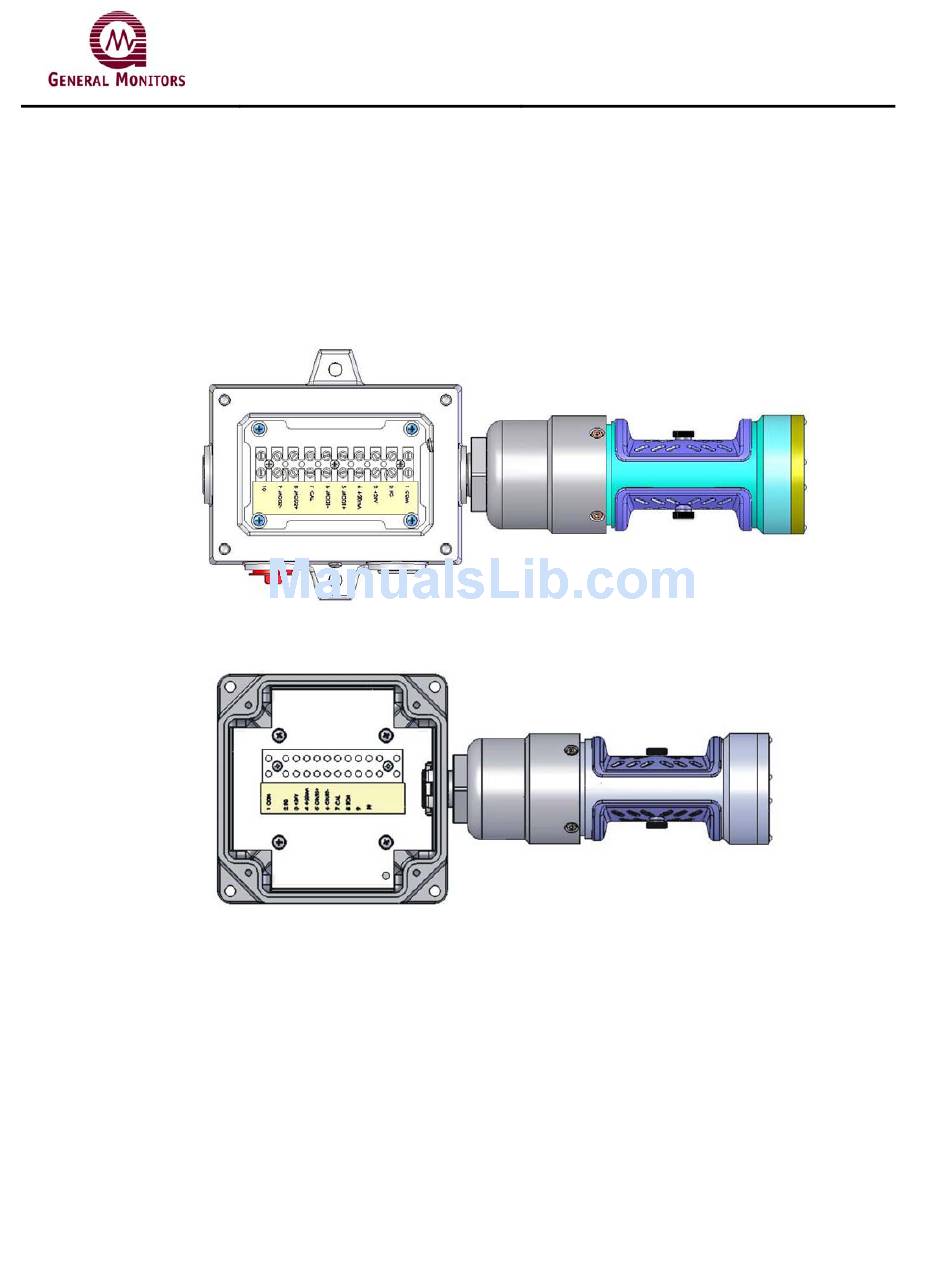

Figure 1a: IR400 with Junction Box

Figure 1b: IR400 with European Junction Box
