General Monitors FL3102 Instruction Manual

Digital frequency infra-red flame detector
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

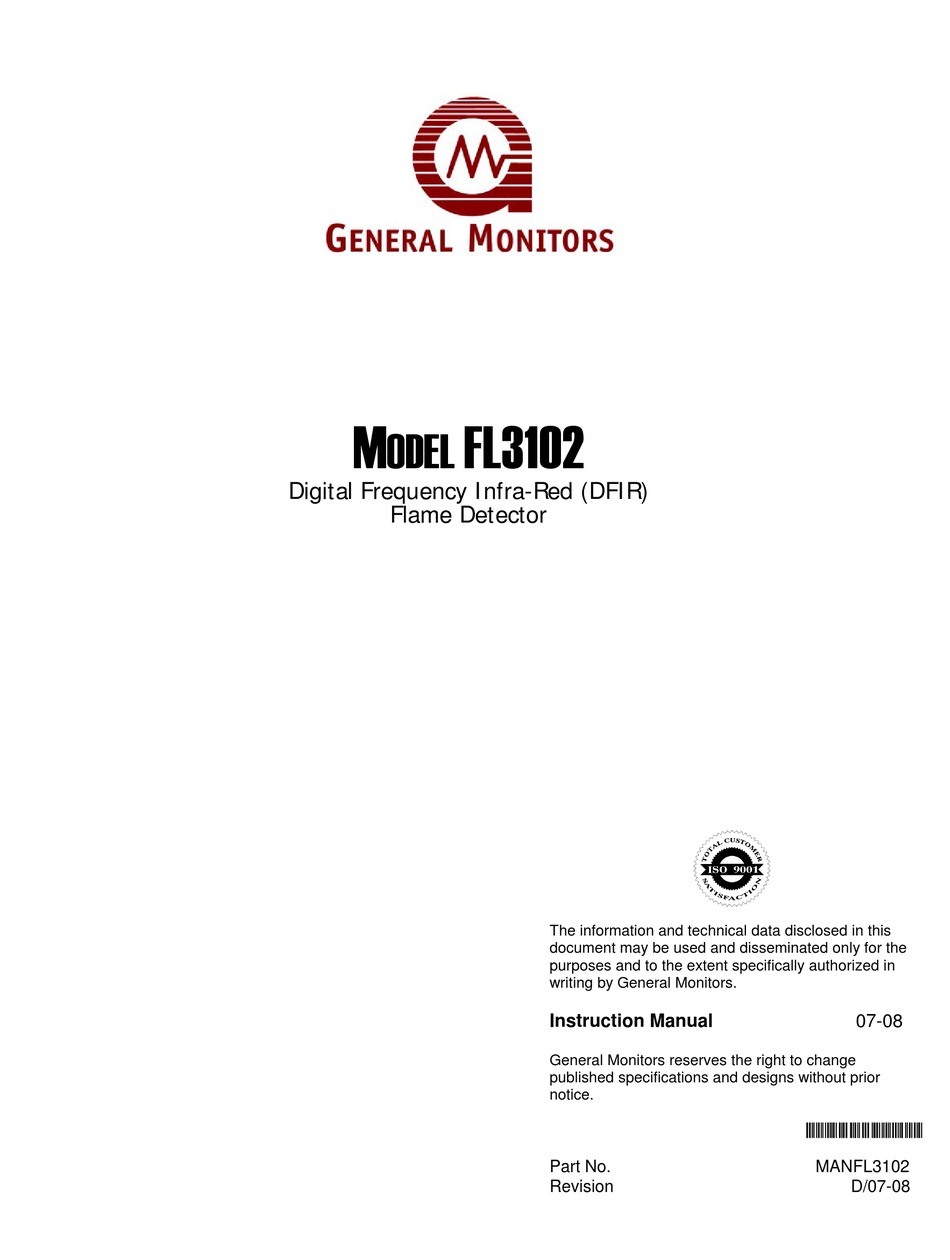

M
FL3102
ODEL
Digital Frequency Infra-Red (DFIR)
Flame Detector
The information and technical data disclosed in this
document may be used and disseminated only for the
purposes and to the extent specifically authorized in
writing by General Monitors.
Instruction Manual
07-08
General Monitors reserves the right to change
published specifications and designs without prior
notice.
MANFL3102
Part No.
MANFL3102
Revision
D/07-08

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FL3102 and is the answer not in the manual?

Questions and answers

Related Manuals for General Monitors FL3102

Summary of Contents for General Monitors FL3102

  • Page 1 General Monitors. Instruction Manual 07-08 General Monitors reserves the right to change published specifications and designs without prior notice. MANFL3102 Part No.

  • Page 2: Warranty

    Model FL3102 Warranty General Monitors warrants the Model FL3102 to be free from defects in workmanship or material under normal use and service within two (2) years from the date of shipment. General Monitors will repair or replace without charge any such equipment found to be defective during the warranty period.

  • Page 3: System Integrity Verification

    Model FL3102 System Integrity Verification General Monitors mission is to benefit society by providing solutions through industry leading safety products, services and systems that save lives and protect capital resources from the dangers of hazardous flames, gases and vapors. The safety products you have purchased should be handled carefully and installed, calibrated and maintained in accordance with the respective product instruction manual.
  • Page 4 Model FL3102 Periodic System Verification The following system verifications should be performed at least annually: Verify wiring, terminal connections and stability of mounting for all integral safety equipment including, but not limited to: • Power supplies • Control modules •...

  • Page 5: Quick Start Guide

    1.2.1 Detector Field of View Each Model FL3102 Flame Detector has a 120° maximum Cone of Vision. This Cone has its vertex at the center of the detector (see Figure 1). 1.2.2 Optical Sensitivity Range The distance at which the detector will respond to a flame is a function of the intensity of that flame.
  • Page 6 Quick Start Guide Detector Installation The Model FL3102 Detector is an explosion proof assembly rated for use in Class I, Divisions 1 & 2, Group B, C & D, Class II, Group E, F & G, and Class III areas. The detector(s) should be mounted pointing downward so that dust/moisture will not accumulate on the IR windows.
  • Page 7 Model FL3102 Quick Start Guide Figure 1 FL3102 Field of View...
  • Page 8 Model FL3102 Quick Start Guide Figure 2 Swivel Elbow Drawing (Class I, Div 1&2, Groups C&D) 3.75[95.3] 5.00[127.0] REF HOLE : 4X Ø.26[6.6] 60° 30° 30° 4.66[118.4] 2.80[71.12] 2.80[71.12] 4X M6 X 14 REAR VIEW 4X M6 WASHER WALL MOUNTING...
  • Page 9 DATA+ Figure 4 FL3102 Outline Drawing WARNING – General Monitors requires that the conduit entry be sealed per the Canadian Electrical Code Handbook (Part 1, Section 18-154). Conduit seals prevent water from entering the units’ housing through the conduit entry. Water entering the housing through the conduit entry will damage the electronics and nullify the warranty.
  • Page 10 Model FL3102 Quick Start Guide Terminal Connections All wire connections are made through the ¾ NPT openings in the Base Assembly to the terminal block (See Figure 7). The Terminal Block is located on the Base Assembly (See Figure 8) and accepts 12 AWG to 22 AWG stranded or solid-core wire.
  • Page 11 Model FL3102 Quick Start Guide Figure 7 Terminal Block Operation There are twenty possible terminal connections. On this and the following pages is a description and specification for each connection. 1.4.1 Alarm Relay TB2, Term 2 = ALARM C TB2, Term 3 = ALARM 1 TB2, Term 4 = ALARM 2 Description: The connections are to the SPDT ALARM relay.
  • Page 12 TB2, Term 7 = WARN 2 Description: These connections are to the SPDT WARN relay. The WARN output is immediate on the Model FL3102. The WARN output can be normally energized or normally de-energized, latching or non-latching. These options are also set via RS-485 or by a DIP-switch.
  • Page 13 Model FL3102 Quick Start Guide Normally de-energized TB2, Term 6 = WARN 1 = Normally Closed TB2, Term 7 = WARN 2 = Normally Open Normally energized TB2, Term 6 = WARN 1 = Normally Open TB2, Term 7 = WARN 2 = Normally Closed The WARN relay contact ratings are 8A @ 250VAC and 8A @ 30VDC.
  • Page 14 The Flame Detector will remain in this state until the switch is released. The latching WARN and/or ALARM will have to be RESET manually. The Auto- test feature cannot be daisy chained between two or more FL3102 Flame Detectors.
  • Page 15 Model FL3102 Quick Start Guide 1.4.7 Power TB1, Term 7, 8 = +24VDC TB1, Term 9, 10 = COM These are the power connections. The supply voltage range is 20 to 36VDC at the detector (low voltage is detected at 18.5 VDC). The following maximum cable...
  • Page 16 Quick Start Guide Switch Selectable Options All settings on the Model FL3102 are done via a DIP-switch on the Power/Relay board or via RS-485 (overrides switch settings). To set these options, remove the detector head from the Base Assembly and locate the DIP-switch (see Figure 12).
  • Page 17 Model FL3102 Quick Start Guide NOTE - The instrument is now ready to operate! Please consult the manual for more information on the instrument’s many features. NOTE - If you have any problems in the setup or testing of the detector, please refer to the “Troubleshooting Section”, or call the factory direct.

  • Page 18: Table Of Contents

    Model FL3102 Table of Contents WARRANTY ..................I WARNINGS ..................I SYSTEM INTEGRITY VERIFICATION ..............II QUICK START GUIDE................I Upon Receipt of Equipment ............i Choosing Detector Locations ............i 1.2.1 Detector Field of View ............i 1.2.2 Optical Sensitivity Range ..........i 1.2.3...
  • Page 19 Exception Responses........... 31 7.5.1.1 Function Code Field ......... 31 7.5.1.2 Exception Code Field ........31 Command Register Locations ........... 32 7.6.1 Operational Mode Commands ........32 FL3102 Operational Mode Command Register Details .... 35 7.7.1 Analog ................35 7.7.2 Mode................35 7.7.3 Status/Error ..............
  • Page 20 Model FL3102 7.7.6 Software Revision ............36 7.7.7 COPM Fault..............36 7.7.8 EEPROM Override ............36 7.7.9 Options ................. 37 7.7.10 Comm 1 Address............38 7.7.11 Comm 1 Baud Rate............38 7.7.12 Comm 1 Data Format........... 39 7.7.13 Fire Window COPM Fault Total (Photodiode)....39 7.7.14 Fire Sensor COPM Fault Total ........
  • Page 21 Model FL3102 8.1.4.3 Humidity range ..........47 8.1.5 Modbus RTU Protocol ..........47 Approvals................... 47 Spare Parts and Accessories ............ 47 8.3.1 Spare Parts..............47 8.3.2 TL103 Test Lamp ............48 8.3.3 Mounting Swivel / Union..........48 8.3.4 Mounting Bracket ............49 8.3.5...
  • Page 22 Figure 34 MODBUS Read Response Messages ..........28 Figure 35 MODBUS Write Query Message............29 Figure 36 MODBUS Write Response Message ..........29 Figure 37 Typical Response Times for FL3102 ..........30 Figure 38 Exception Responses ................. 31 Figure 39 Exception Code Field ................31...
  • Page 23 Model FL3102 Figure 40 Operational Mode Commands ............33 Figure 40 Operational Mode Commands Continued........... 34 Figure 41 Mode ....................35 Figure 42 Status/Error ..................35 Figure 43 Model Type..................36 Figure 44 EEPROM Override ................37 Figure 45 Options ....................38 Figure 46 Comm 1 Baud Rate................

  • Page 24: Figure 14 Model Fl3102

    In addition, the FL3102 can see through most smoky type fires such as diesel, rubber, etc. The Model FL3102 has features that include: •...

  • Page 25: Figure 15 Spectral Response Of Ir Detectors

    Principle of Operation 2.2.1 IR Flame Detector The Model FL3102 is a discriminating Dual Frequency Infra-Red Detector, which makes use of Infrared detectors for different IR wavelengths and characteristics. This combination provides a flame detection system, which is highly immune to false alarms.
  • Page 26 2.2.3 Alarm Test The Model FL3102 Flame Detector has a built-in Alarm Test feature. By connecting one contact of a SPST momentary switch to TB1 position 4 and the other contact to DC COM (see Section 3.4 Terminal Connections), the user can test the alarm outputs of the Flame Detector by activating this switch for one to eight seconds depending on the Alarm Delay Setting.

  • Page 27: Upon Receipt Of Equipment

    3.2.1 Detector Field of View Each Model FL3102 Flame Detector has a 120° maximum Cone of Vision. This Cone has its vertex at the center of the detector (see Figure 16). 3.2.2 Optical Sensitivity Range The distance at which the detector will respond to a flame is a function of the intensity of that flame.

  • Page 28: Detector Installation

    Model FL3102 Detector Installation The Model FL3102 Detector is an explosion proof assembly rated for use in Class I, Divisions 1 & 2, Group B, C & D, Class II, Group E, F & G, and Class III areas. The detector(s) should be mounted pointing downward so that dust/moisture will not accumulate on the IR windows.

  • Page 29: Figure 16 Fl3102 Field Of View

    Model FL3102 Figure 16 FL3102 Field of View...

  • Page 30: Figure 17 Swivel Elbow Drawing (Class I, Div 1&2, Groups C&D)

    Model FL3102 Figure 17 Swivel Elbow Drawing (Class I, Div 1&2, Groups C&D) 3.75[95.3] 5.00[127.0] REF HOLE : 4X Ø.26[6.6] 60° 30° 30° 4.66[118.4] 2.80[71.12] 2.80[71.12] 4X M6 X 14 REAR VIEW 4X M6 WASHER WALL MOUNTING BRACKET ASSEMBLY Figure 18 Mounting Bracket Drawing...

  • Page 31: Figure 19 Fl3102 Outline Drawing

    DATA+ Figure 19 FL3102 Outline Drawing WARNING – General Monitors requires that the conduit entry be sealed per the Canadian Electrical Code Handbook (Part 1, Section 18-154). Conduit seals prevent water from entering the units’ housing through the conduit entry. Water entering the housing through the conduit entry will damage the electronics and nullify the warranty.

  • Page 32: Terminal Connections

    Model FL3102 Terminal Connections All wire connections are made through the ¾ NPT openings in the Base Assembly to the terminal block (See Figure 22). The Terminal Block is located on the Base Assembly (See Figure 23) and accepts 12 AWG to 22 AWG stranded or solid-core wire.

  • Page 33: Alarm Relay

    Model FL3102 Figure 22 Terminal Block Operation There are twenty possible terminal connections. On this and the following pages is a description and specification for each connection. 3.4.1 Alarm Relay TB2, Term 2 = ALARM C TB2, Term 3 = ALARM 1 TB2, Term 4 = ALARM 2 Description: The connections are to the SPDT ALARM relay.

  • Page 34: Warning Relay

    TB2, Term 7 = WARN 2 Description: These connections are to the SPDT WARN relay. The WARN output is immediate on the Model FL3102. The WARN output can be normally energized or normally de-energized, latching or non-latching. These options are also set via RS-485 or by a DIP-switch.

  • Page 35: Fault Relay

    Model FL3102 The WARN relay contact ratings are 8A @ 250VAC and 8A @ 30VDC. CAUTION – For all relay connections see Figure 24. Figure 24 Relay Contacts 3.4.3 Fault Relay TB2, Term 8 = FLT C TB2, Term 9 = FLT 1 TB2, Term 10 = FLT 2 Description: These connections are to the SPDT FAULT relay.

  • Page 36: Alarm Reset Terminal

    The Flame Detector will remain in this state until the switch is released. The latching WARN and/or ALARM will have to be RESET manually. The Auto- test feature cannot be daisy chained between two or more FL3102 Flame Detectors.

  • Page 37: Power

    Model FL3102 3.4.7 Power TB1, Term 7, 8 = +24VDC TB1, Term 9, 10 = COM These are the power connections. The supply voltage range is 20 to 36VDC at the detector (low voltage is detected at 18.5 VDC). The following maximum cable...

  • Page 38: Switch Selectable Options

    Model FL3102 Switch Selectable Options All settings on the Model FL3102 are done via a DIP-switch on the Power/Relay board or via RS-485 (overrides switch settings). To set these options, remove the detector head from the Base Assembly and locate the DIP-switch (see Figure 27).

  • Page 39: Maintenance

    WINDEX® with Ammonia D” The lenses are not glass. One IR lens material is quartz and the other IR lens material is sapphire. The cleaning solution should be General Monitors’ P/N 10272-1 (Industrial Strength Windex® with Ammonia D). Figure 29 IR Windows...

  • Page 40: Sensitivity Check

    Model FL3102 Sensitivity Check To verify that each detector is functioning correctly, a General Monitors’ Test Lamp and/or the ALARM TEST function (see section 2.2 Principle of Operation - Alarm Test) should be used. See Section 8.3, Spares & Accessories, for details on test lamps.

  • Page 41: Troubleshooting

    Trouble Shooting Chart This section is intended to be a guide in correcting problems, which may arise in the field. This section is no all-inclusive, and General Monitors should be contacted for assistance if the corrective action listed does not eliminate the problem.

  • Page 42: Final Assemblies

    Model FL3102 Final Assemblies Figure 31 FL3102 (DFIR) Final Assembly...

  • Page 43: Customer Support

    Model FL3102 6.0 Customer Support GENERAL MONITORS’ OFFICES Area Phone/Fax/Email UNITED STATES Corporate Office: Phone: +1-949-581-4464 26776 Simpatica Circle Fax: +1-949-581-1151 Lake Forest, CA 92630 Email: sales@generalmonitors.com 9776 Whithorn Drive Phone: +1-281-855-6000 Houston, TX 77095 Fax: +1-281-855-3290 Email: gmhou@generalmonitors.com UNITED KINGDOM...

  • Page 44: Modbus Communications

    Model FL3102 7.0 Modbus Communications Standard Model FL3102 Flame Detectors include a Single MODBUS Communications Board that is referenced as Comm 1. A Dual MODBUS feature is optional, which includes two independent communications channels referenced as Comm 1 and Comm 2.

  • Page 45: Modbus Read Status Protocol (Query/Response)

    Address Function Read Holding Registers Code Byte Count No. of Data Bytes Data Hi 00-FF (Hex) FL3102 Hi Byte Status Data Data Lo 00-FF (Hex) FL3102 Lo Byte Status Data CRC Lo 00-FF (Hex) CRC Lo Byte CRC Hi 00-FF (Hex)

  • Page 46: Modbus Write Command Protocol (Query/Response)

    Register Address Hi** Not used by FL3102 Register Address Lo** 00-FF (Hex) FL3102 Command Registers Preset Data Hi 00-FF (Hex) FL3102 Hi Byte Command Data Preset Data Lo 00-FF (Hex) FL3102 Lo Byte Command Data CRC Lo 00-FF (Hex) CRC Lo Byte...

  • Page 47: Exception Responses And Exception Codes

    Model FL3102 Exception Responses and Exception Codes In a normal exchange, the master device sends a query to the FL3102. The FL3102 receives the query and returns a normal response to the master. If a normal communications error occurs, there are 4 possible responses from the FL3102: 1.

  • Page 48: Exception Responses

    All the Function Codes have a most-significant bit (MSB). In an exception response, the FL3102 sets the MSB of the function code to a one (1). With the function code’s MSB set, the master can recognize the exception response and can process the data field for the exception code from the FL3102 response message.

  • Page 49: Command Register Locations

    Model FL3102 Command Register Locations 7.6.1 Operational Mode Commands See section number listed below and reference Section 7.7 for details of each register.

  • Page 50: Figure 40 Operational Mode Commands

    Status/Error Indicates Error 8-Bit 0002 40003 7.7.3 Fire Type LFF, HFF or both (1,2,3) 0003 40004 7.7.4 Model Type Identifies the Model FL3102 Decimal 3102 0004 40005 7.7.5 Software Rev Indicates the Software Revision ASCII 2-Char 0005 40006 7.7.6 COPM Fault...

  • Page 51: Figure 40 Operational Mode Commands Continued

    Model FL3102 R - indicates Read Only Access R/W - indicates Read/Write Access Master Refer to Parameter Function Type Scale Access Addr Section Addr Comm 1 Only Total # of Comm 1 Only Value 8-Bit 0024 40037 7.7.23 Total Receive...

  • Page 52: Fl3102 Operational Mode Command Register Details

    A read returns a value, which is proportional to the 0-20mA output current. The current is based on a 16-bit value. The master scaling is 0-65535 decimal, which corresponds to the FL3102 scaling, which is 0-20mA. 7.7.2 Mode A read returns the fire status mode of the FL3102. Decimal Mode Value...

  • Page 53: Fire Type

    (Digital Frequency Infra-Red) Figure 43 Model Type 7.7.6 Software Revision A read returns the software revision of the FL3102 in 2 ASCII characters. (Usually a blank and then a letter revision ex. A, B, C, etc). 7.7.7 COPM Fault A read returns the type of Continuous Optical Path Monitoring (COPM) Fault, which is a Fire Window COPM Fault, Fire Sensor COPM Fault or a Sun COPM Fault.

  • Page 54: Options

    NOTE - By grounding the ALARM TEST input during the first 10 seconds of the 2 minute power-up cycle, the FL3102 will Disable the EEPROM Override and set the Bit = 0, enabling the 8-position Dip-switch. The red and green LED’s will flash simultaneously while the ALARM TEST input is grounded.

  • Page 55: Comm 1 Address

    7.7.11 Comm 1 Baud Rate A read returns the baud rate of the FL3102. A write changes the baud rate to the requested baud rate. After the baud rate has been changed to the addressed unit, the MODBUS communications will cease because the baud rate has changed;...

  • Page 56: Comm 1 Data Format

    7.7.12 Comm 1 Data Format A read returns the Comm 1 data format of the FL3102. A write changes the data format to the requested data format. After the data format has been changed to the addressed unit, the MODBUS communications may cease or start producing Comm errors because the data format has changed;...

  • Page 57: Fire Sensor Copm Fault Total

    Model FL3102 7.7.14 Fire Sensor COPM Fault Total A read indicates the total number of Fire Channel Sensor COPM Faults that have occurred in the slave device. This fault is usually caused by a faulty Fire Channel Sensor or Circuitry. The maximum count is 255 and then the counter will roll over to zero and begin counting again.

  • Page 58: Comm 1 Or 2 Total Receive Errors

    Model FL3102 7.7.19 Comm 1 or 2 Total Receive Errors A read indicates the total MODBUS Comm 1 or 2 Receive Errors that occurred in the slave device. The maximum count is 255 and then the counter will rollover to zero and begin counting again.

  • Page 59: Comm 1 Only Noise Flag Errors

    Model FL3102 7.7.27 Comm 1 Only Noise Flag Errors A read indicates the number of Comm 1 Only Noise Flag Errors that occurred in the slave device. The maximum count is 255 and then the counter will rollover to zero and begin counting again.

  • Page 60: Comm 2 Address

    FL3102 Address will default to 1. 7.7.34 Comm 2 Baud Rate A read returns the Comm 2 baud rate of the FL3102. A write changes the baud rate to the requested baud rate. After the baud rate has been changed to the addressed unit, the MODBUS communications will cease because the baud rate has changed.

  • Page 61: Comm 2 Data Format

    Model FL3102 7.7.35 Comm 2 Data Format A read returns the Comm 2 data format of the FL3102. A write changes the data format to the requested data format. After the data format has been changed to the addressed unit, the MODBUS communications may cease or start producing Comm errors because the data format has changed.

  • Page 62: Appendix

    *NOTE – Response Times and Field of View data have been derived by testing the Model FL3102 Flame Detector with a 1 square-foot gasoline fire. One cup of unleaded gasoline on top of a one-inch layer of water was ignited for each test.

  • Page 63: Warranty

    Model FL3102 8.1.1.8 Warranty Two Years 8.1.2 Mechanical Specifications Enclosure material Material (Aluminum): A-356, Optional (Stainless Steel) Color Finish Chemical Film per MIL-C-5541, Epoxy Powder Coated Dimensions Height 6.000 in (15.2cm) Width 6.000 in (15.2cm) Depth 5.500 in (14.0cm) Weight 5 lbs (2.3 kg) AL;...

  • Page 64: Environmental Specifications

    CSA approved, Cenelec & CE Marking pending Spare Parts and Accessories 8.3.1 Spare Parts When ordering Spare Parts and/or Accessories, please contact your nearest General Monitors’ Representative or General Monitors directly and give the following information: 1. Part Number 2. Description 3.

  • Page 65: Tl103 Test Lamp

    It is always important to begin a series of flame detector checks with a fully charged TL103. Stand within 10 feet (FL3102) from the unit to be tested and aim the TL103 directly into the detector windows. Press the ON button and be sure the high intensity pulsing beam strikes the detector face squarely.

  • Page 66: Mounting Bracket

    An optical air guard is available for applications such as paint spray booths, which require a method to keep detector optics clean. This air guard mounts at the front of the FL3102 and has a connection for shop air. The air when turned on creates an air wall to keep optics clean.
  • Page 67 ADDENDUM Product Disposal Consideration This product may contain hazardous and/or toxic substances. EU Member states shall dispose according to WEEE regulations. For further General Monitors’ product WEEE disposal information please visit: www.generalmonitors.com/customer_support/faq_general.html All other countries or states: please dispose of in accordance with existing federal, state and local...
