- Page 1 AC/DC DUAL BALANCE CHARGER/DISCHARGER POWER SUPPLY WARNING: THE CHARGING AND DISCHARGING OF RC HOBBY BATTERIES CAN BE DANGEROUS. FAILURE TO FOLLOW THE INSTRUCTIONS AND WARNINGS IN THIS MANUAL MAY RESULT IN PROPERTY DAMAGE AND/OR LOSS OF LIFE.
-
Page 2: Table Of Contents
Table of Contents Table of Contents: Introduction..........................03 Warning and Safety Notes.....................04 Product Layout..........................08 Charger Content / Specifications..................09 Features............................10 Battery & Power Supply Connections................13 Power Distribution........................13 Operation............................14 Program Flow Chart........................17 Charger Operation........................18 Lithium Battery Program ..............19 [LiPo/LiHV/LiFe/Lilon] NiMH/NiCd Battery Program....................27 Pb Lead-Acid Battery Program....................31 DC Power Supply........................34 Battery Voltage Meter......................35 Battery Resistance Meter......................36... -
Page 3: Introduction
This latest addition to our innovative charger line offers expanded capacity and compatibility in a portable and compact package. With dual inputs affording flexible battery charging at home and in the field, the X2 AC Plus Black Edition also boasts Hitec’s innovative power distribution mode which allows you to efficiently assign output power based on individual battery requirements. -
Page 4: Warning And Safety Notes
Warning and Safety Notes Warning: Be sure to read this section for your own safety. Caution: Be sure to read this section to prevent accidents and damage to your charger. Warning Tip: This section will help you maximize the performance of your charger. - Page 5 Warning and Safety Notes [cont.] Never attempt to charge or discharge the following types of batteries: • A battery fitted with an integral charge circuit or a protection circuit • A battery pack which consists of different types of cells (including different manufacturer’s cells) •...
- Page 6 Keep in mind that the gauge or thickness of your charging leads from the X2 AC Plus Black Edition to your battery must be of an acceptable current rating to handle the Applied charge current. For maximum safety and charging effectiveness, always match or exceed the main battery lead rating when assembling or selecting your charging leads.
- Page 7 Do not attempt to disassemble or modify Lithium or Lead-Acid battery packs. Discharging The X2 AC Plus Black Edition discharging functions are for two specific purposes: • Refreshing the capacity of a Nickel-based battery that has lost capacity over time (NiMH or NiCd).
-
Page 8: Product Layout

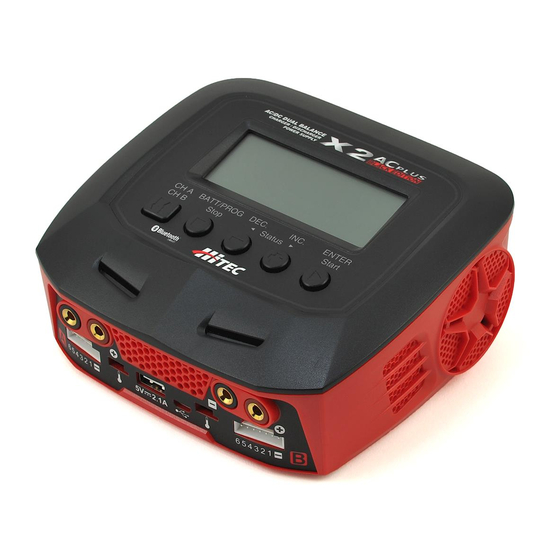

Product Layout Dot Matrix 128 x 64 LCD Display Output Socket 4mm Banana Plug Balance Lead Socket Cooling Fan Temperature Sensor Port USB Port Balance Lead Socket Micro USB Port for PC Link & Temperature firmware upgrade Output Socket Sensor Port 4mm Banana Plug Alter Values, See the Status of Individual Cells in Balance... -
Page 9: Charger Content / Specifications
Charger Contents The Set Contains: X2 AC Plus Black Edition Charger Two (2) x XH Adaptor Power Cord Two (2) x Banana Connectors with XT60 Connector Charging Cable Two (2) x 2 Pin T-Type Charging Cables Two (2) x Bare Charge Cables... -
Page 10: Features
NiCd/Pb) batteries into any of the charging ports. Dual Input and Power Distribution: The X2 AC Plus Black Edition has a dual AC/DC input comprised of AC 100-240V and DC 11-18V. In DC mode, the power of each channel is 100W with an overall power of 200W. - Page 11 DC Power Output Port: The X2 AC Plus Black Edition has a DC output port capable of delivering up to 100 watts @ 13.6 volts DC. This eliminates the need to bring a separate power supply to the racing track or flying filed.
- Page 12 Features [cont.] Delta-Peak Sensitivity for NiMH/NiCd: This automatic charge termination program is based on the principle of the Delta- peak voltage detection. When the battery’s voltage exceeds the threshold, the process will be terminated automatically. Cyclic Charging/Discharging: 1 to 5 cyclic and continuous charge > discharge or discharge > charge sessions are optimal for battery performance and balancing.
-
Page 13: Battery & Power Supply Connections
Battery & Power Supply Connections TO AVOID SHORT CIRCUITS, ALWAYS CONNECT THE CHARGE LEADS TO THE CHARGER FIRST, AND THEN TO THE BATTERY. REVERSE THE Warning SEQUENCE WHEN DISCONNECTING THE PACK. Battery Connection with Balance Adaptor. X1 CHARGER BALANCE ADAPTOR BALANCE DC 11-18V SOCKET... -
Page 14: Operation
Connection Connecting to power source There are two kinds of inputs for X2 AC Plus Black Edition, DC 11-18V and AC 100-240V. A. Operating in AC mode X2 AC Plus Black Edition comes with built-in switching power supply. You can connect the AC power cord directly to the main AC socket. - Page 15 Operation [ cont.] Connecting the battery IMPORTANT: Before connecting a battery it is absolutely essential to check one last time that you have set the parameters correctly. If the settings are incorrect, the battery may be damaged and could potentially burst into flames or explode. To avoid short circuits between the banana plugs, always connect the charge leads to the charger first and then to the battery.
- Page 16 Operation [ cont.] Resume or Start Switch from Channel A Charge Processes to B or Channel B to A Confirm Any Action Scroll Through the Main Menu , Alter Values, See the Status Stop Any Charge Processes of Individual Cells in Balance Charge Mode CH A / CH B: Switch from Channel A to B or from Channel B to A.
-
Page 17: Program Flow Chart
Program Flow Chart The flow chart depicts one channel as the example for both channels. Channel A and Channel B are identical. Note START LiPo BALANCE LiPo CHARGE LiPo FAST CHG LiPo STORAGE LiPo DISCHARGE BATT/PROGRAM 2.0A 7.4V (2S) 2.0A 7.4V (2S) 2.0A 7.4V (2S) 2.0A 7.4V (2S) -
Page 18: Charger Operation
BATT PROGRAM screen. Once in the Battery Programming section use the < or > to select the desire battery or function then press ENTER/Start to make your parameter adjustments. The X2 AC Plus Black Edition is capable of the following processes based on the type of battery chosen. -
Page 19: Lithium Battery Program [Lipo/Lihv/Life/Lilon]
This program is only suitable for charging/discharging Lithium chemistry batteries (LiPo, LiHV, LiIon and LiFe). The X2 AC Plus Black Edition offers the following lithium charge modes: Charge, Balance Charge, Fast Charge, Storage and Discharge. BEFORE SELECTING A CHARGE MODE, IT IS CRITICAL THAT YOU SELECT THE CORRECT TYPE OF LITHIUM BATTERY TO BE CHARGED. - Page 20 Lithium Battery Program [LiPo/LiHV/LiFe/Lilon cont.] You are now ready to begin charging. Press and hold the R:3SE R S:3SER ENTER/Start ► button until you see “BATTERY CHECK. ” CANCEL(STOP) followed by the “CONFIRM (ENTER) / CANCEL (STOP)“ R:3SE R S:3SER screen.
- Page 21 Lithium Battery Program [LiPo/LiHV/LiFe/Lilon cont.] See page 12 for the Appropriate charging connections setup for this operation. First, select the correct battery type by following the LiPo BALANCE instructions on page 16. Once you have set the correct 2.7A 11.1V (3S) battery type, press the ►...
- Page 22 Lithium Battery Program [LiPo/LiHV/LiFe/Lilon cont.] Lithium Fast Charge Mode: Charging in Fast Charge Mode allows for a shorter charge time and will result in a slightly reduced charging capacity. To achieve maximum charge capacity, we recommend you use the Lithium Balance Charge Mode. If a fast charge is necessary, select the fast charge mode and follow the same charging instructions as for the Lithium Charge Mode or Lithium Balance Charge Mode.
- Page 23 Lithium Battery Program [LiPo/LiHV/LiFe/Lilon cont.] DURING CHARGING/DISCHARGING, THE BATTERY SHOULD BE PLACED INSIDE A FIRE PROOF/RETARDANT BAG AND ON A FIRE PROOF SURFACE Caution AWAY FROM OTHER COMBUSTIBLE OBJECTS. Once charging has commenced, the charger will display LP3s 2.7A 11.88V the following real-time information: battery type/cell FAS 005:39 00256 count, charging current, battery voltage, charging time and charged capacity.
- Page 24 Lithium Battery Program [LiPo/LiHV/LiFe/Lilon cont.] Press the ► button again and the voltage value will begin flashing. Use the + or ▬ buttons to adjust the value to the desired rate. The voltage and cell count should match the values listed on the battery label. You are now ready to begin charging.
- Page 25 Lithium Battery Program [LiPo/LiHV/LiFe/Lilon cont.] DISCHARGING LITHIUM CHEMISTRY BATTERIES CAN CAUSE PERMANENT DAMAGE TO THE BATTERY AND IT IS NOT RECOMMENDED FOR Warning ANYTHING OTHER THAN THE DISPOSAL OF THE BATTERY. IF YOU CHOOSE TO DISCHARGE YOUR LITHIUM BATTERIES, MAKE SURE TO PAY CLOSE ATTENTION TO THE MINIMUM VOLTAGE SETTING.
- Page 26 Lithium Battery Program [LiPo/LiHV/LiFe/Lilon cont.] DURING CHARGING/DISCHARGING, THE BATTERY SHOULD BE PLACED INSIDE A FIRE PROOF/RETARDANT BAG AND ON A FIRE PROOF SURFACE Caution AWAY FROM OTHER COMBUSTIBLE OBJECTS. Once charging has commenced, the charger will display LP3s 2.7A 11.88V the following real-time information: battery type/cell DCH 005:39 00256 count, charging current, battery voltage, charging time and charged capacity.
-
Page 27: Nimh/Nicd Battery Program
Auto Charge, Discharge, Re-Peak and Cycle. Selecting the Battery Type: After powering on the X2 AC Plus Black Edition, press the ■ button repeatedly until you reach the Appropriate program for the battery type you wish to charge. For this example we have chosen the “NiMH BATT“ or “NiCd BATT”program. Now press the ►... - Page 28 NiCd/NiMH Battery Program [ cont.] NiCd/NiMH Auto Charge Mode: In this mode, the charger automatically detects the connected NiMH or NiCd battery and determines the proper full charge and cutoff thresholds. Setting the upper charge current limit for safe levels based on your battery specifications will ensure safe charging of your specific battery.
- Page 29 Follow the instructions provided with your battery when setting the voltage cutoff. The X2 AC Plus Black Edition will stop discharging when the battery has reached the preset voltage cutoff. Press and hold the ► button to begin discharging. Once NiMH 1.3A 10.42V...
- Page 30 Use the + or ▬ buttons to change this to the number of cycles you want the X2 AC Plus Black Edition to run. The X2 AC Plus Black Edition can cycle the battery a maximum of 5 times consecutively.
-
Page 31: Pb Lead-Acid Battery Program
Once the cycling process is complete, the screen will read “END: CYCLE” and the charger will emit a chiming sound. The X2 AC Plus Black Edition will display the charge/discharge capacity for each cycle. Using the + and ▬ buttons, you can scroll through this data for each cycle. - Page 32 Pb Lead-Acid Battery Program [ cont.] Pb Charge Mode: BEFORE YOU BEGIN CHARGING YOUR BATTERY, MAKE SURE YOU HAVE READ AND UNDERSTAND ALL OF THE WARNINGS AND SAFETY Warning INFORMATION CONTAINED ON PAGES 02-07. After selecting the correct battery type, use the + or ▬ buttons to change it to the “CHARGE“...
- Page 33 When charging is complete, the screen will read “FINISHED” and the charger will emit a chiming sound. Additional Pb Process Information: During the Pb battery charging/discharging process the X2 AC Plus Black Edition can display a variety of information. Using the + or - buttons you can also view the following information:...
-
Page 34: Dc Power Supply
DC Power Supply To use the X2 AC Plus Black Edition as a power supply, the user must connect the charger to an AC power source. When the green LED on the back side turns on, the user is free to use the power supply. The power of the DC output is adjustable from 10W to 100W and the output voltage is 13.8V. -
Page 35: Battery Voltage Meter
Battery Voltage Meter Battery Voltage Meter: You can use the battery meter function to check your battery’s total voltage, the highest voltage, the lowest voltage, and the voltage of each cell. Simply connect the battery to the charger via the main battery lead to the battery socket and the balance wires to the balance socket as shown below. -
Page 36: Battery Resistance Meter
Battery Resistance Measurement Battery Resistance Measurement: The X2 AC Plus Black Edition has the ability to check your battery’s total internal resistance, highest total resistance, lowest total resistance and the resistance of each cell. Simply connect the battery to the charger via the main battery lead to battery socket and the balance wires to the balance socket as shown below. -
Page 37: Memory Preset - Data Store/Load
Memory Preset - Data Save/Load Memory Preset - Data Save/Load: The Save Data and Load Data programs make it easy to store and load charge and discharge profiles for up to 10 batteries per channel. Data can be saved for each battery type and each charge mode available with the X2 AC Plus Black Edition. - Page 38 Memory Preset - Data Save/Load [ cont.] Per Cell Discharge Voltage: Press the ► button and the DSCH VOLTAGE per cell discharge voltage value will begin to flash. Use 3.0V/CELL the + or ▬ buttons to change the per cell discharge voltage, then press the ► button to confirm your selection.
-
Page 39: Advanced System Set Up
Advanced System Set Up The system will be set to its default parameters when powered on for the first time. The screen displays the following information in sequence and the user can change any given value on each screen. To change a parameter value in the program, press START/ENTER to make that value blink. - Page 40 ITEM SELECTION DESCRIPTION Advanced System Set Up [ cont.] ITEM SELECTION DESCRIPTION NiMH Sensitivit This program is for NiMH/NiCd battery only. D.Pea k Default NiMH Sensitivit Default: 4mV/Cell When the charger detects the delta peak This program is for NiMH/NiCd battery only. D.Pea k Default value reaches the value you set, the...
-
Page 41: Warning And Error Messages
Warning and Error Messages In the case of an error, the screen will communicate the cause of the error and emit an audible sound. An incorrect polarity is detected. The battery has been interrupted. The battery connection is incorrect. The balance connect is incorrect. The input voltage is less than 11V. -
Page 42: Using The Charge Control Software [Charge Master]
Using the Charge Control Software [ Charge Master] The free “Charge Master” software gives you unparalleled ability to operate the charger through your computer. You can monitor pack voltage, cell voltage, and other data during charging, view the charge data in real-time graphs, or control charging and firmware updates from the “Charge Master. -
Page 43: Charger Operation Using The App
App is self-explanatory and the same for both iOS and Android. Explicit pairing is not required; after downloading and installing, activate the Bluetooth on your mobile device and launch the App. The X2 AC Plus Black Edition and your device will establish Bluetooth connectivity automatically. - Page 44 Charger Operation Using the App [ cont.] How to reset password Press ENTER button BATT/PROGRAM SYSTEM SETTING-> Press DEC twice DC SUPPLY: CHA: 50 CHB: 50 Press and hold the ENTER button for 3 seconds to reset Load Factory Set password.
- Page 45 Charger Operation Using the App [ cont.] 3. How to Use the Memory Program 15:53 15:53 15:53 15:53 15:53 Edit 15:53 BACK CH. A CH. B CH. A CH. B Edit BACK CH. A CH. B CH. A CH. B Battery Battery Battery...
-
Page 46: System Setting
System Setting 5. SCAN TO GO A very unique feature of the X2 AC Plus Black Edition is SCAN TO GO (automatic charging system). As the range of battery types and capacity becomes more varied, each battery requires its own dedicated charging process. - Page 47 Charger Operation Using the App [ cont.] How to print the QR code 15:53 15:53 15:53 CH. A CH. B CH. C CH. D CH. A CH. B CH. C CH. D LiPo BAL.CHARGE 15:53 15:53 15:53 Cells： 6 Charge Current： 5.0A 5.0A Voltage：4.20V CH.
-
Page 48: Commonly Used Terms
Commonly Used Terms Commonly Used Terms: A, mA: Unit of measurement relating to a charge or discharge current. 1000 mA = 1A (A = Ampere, mA = Milliampere). Ah, mAh: Unit of measurement for the capacity of a battery (Amperes x Time Unit;... -
Page 49: Conformity Declarations
Conformity Declarations Hitec's X2 AC Plus Black Edition satisfies all relevant and mandatory CE directives and complies with FCC Part 15 Subpart B: 2010. For EC directives: The product has been tested to meet the following technical... -
Page 50: Disposal And Prop 65 Warning
ONE YEAR LIMITED WARRANTY: For a period of one year from the date of purchase HITEC RCD USA, INC. shall REPAIR OR REPLACE, at our option, defective equipment covered by this warranty, otherwise the purchaser and/or consumer is responsible for any charges for the repair or replacement of the charger. -
Page 51: Warranty And Service
4. Ship prepaid (COD or postage-due returns will not be accepted) via a traceable common courier (UPS, insured parcel post, FedEx, etc.) to: Hitec RCD USA, Inc., Customer Service Center, 12115 Paine St., Poway CA 92064... - Page 52 Hitec RCD USA, Inc. | 12115 Paine St., Poway CA 92064 | www.hitecrcd.com 858.748.6948 | service@hitecrcd.com...
