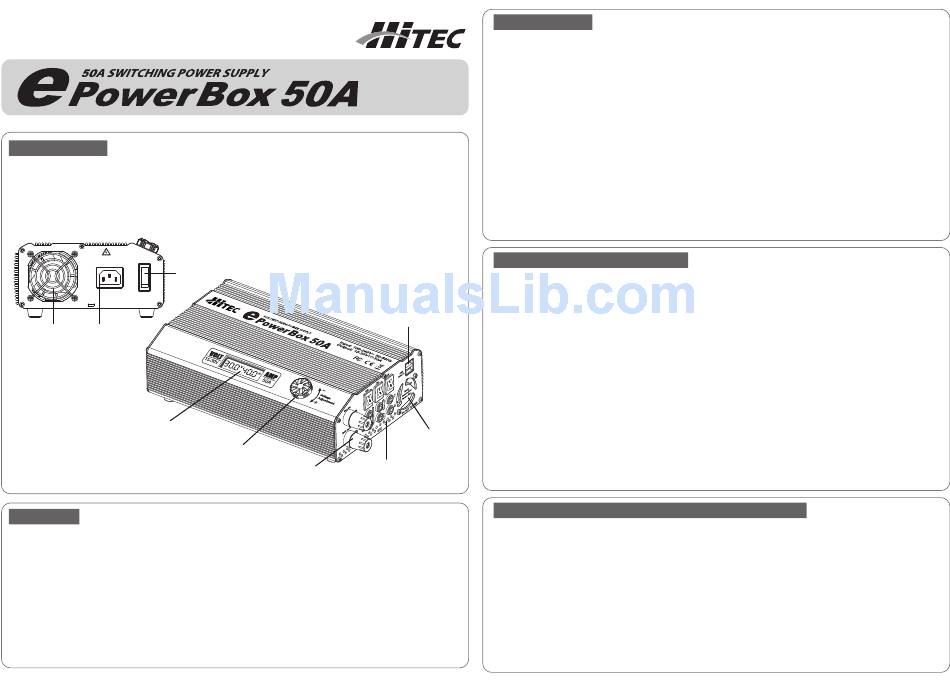

HITEC e PowerBox 50A Instruction Manual

INSTRUCTION MANUAL
INTRODUCTION
Thank you for purchasing the ePowerBox 50 Amp Switching DC Power Supply. Designed and
manufactured for the most demanding battery chargers, the ePowerBox 50A will deliver consis-
tent, clean power for years of performance and reliability. The ePowerBox 50A converts a standard
household power source (100-240 V AC) to DC power (15-30V DC). It can supply up to 50 amps
(1200 Watts) of continuous power.
CA UTION:
ON
Check the AC V oltage
Before POWER ON
Power
Switch
AC INPUT
100-240V OFF
Temp. Controlled Fan
Cooling AC Power
Fan Input Socket
Current & Voltage
Read Out
FEATURES
• One Main 50-Amp DC Power Output and Three 10-Amp Outputs with On/Off Switches
• Adjustable Output Voltage 15~30V
• Large LCD Indicates Voltage Output and Current Output (in Amps)
• 100-240VAC Input for Worldwide Operation
• Two USB ports, 5 volts, 2100mA Total for Mobile Devices, Digital Cameras, etc.
• Active Power Factor Correction (PFC)
• Dual Smart Fan Cooling
• Temperature Protection
• Overload Protection
• Short Circuit Protection
Voltage Adjustment Dial
(15V-30V)
3 Channels with
Main DC Output
ON/OFF Switch
(50A Max)
1
SPECIFICATIONS
• AC Input Voltage:
• AC Input Frequency:
• Output Voltage:
• Output Current:
• Current Overload Protection:
• LCD Display Voltage Accuracy:
• LCD Display Current Accuracy:
• Output Voltage Ripple:
• Power Efficiency:
• Power Factor:
• Temperature Protection Cutoff :
• Cooling Method:
• Operating Temperature:
• Operating Humidity:
• Dimensions (L*W*H):
• Net Weight:
IMPORTANT SAFETY INFORMATION
This manual contains important safety and operating instructions. Before you use the power
supply, thoroughly read all the instructions and cautionary notes on the power supply and the
products you will be connecting to the power supply.
USB Power
5V / 2.1A
• Do not use the power supply near water, for example: a bathtub, sink, wet basement,
swimming pool or in the rain.
• Do not place the power supply on an unstable cart, stand or table. If the power supply falls, it
could injure a person or cause serious damage to the power supply.
• Do not overload power outlets or extension cords. An overload can result in fire or electric
shock.
• Do not disassemble this unit; take it to a qualified service technician or contact Hitec RCD USA
support when service or repair is required. Improper reassembly may result in a risk of electric
shock or fire.
Cooling
• Do not use an attachment not recommended for this power supply as risk of fire, electrical
Fan
shock or injury could occur.
• Never force an object into the slot in the power supply. It could touch dangerous voltage
points or short out parts, resulting in a fire or electrical shock.
CAUTION - To reduce the risk of property damage or injury:
• Do not operate the power supply if it has been dropped or damaged in any way. Contact Hitec
RCD USA support for repair.
• The power supply should be operated only from a standard AC outlet that provides 100-240VAC
with a frequency range of 50/60Hz.
• To protect the power supply during a lightning storm or when it has been unused for a long
period of time, unplug it from the AC outlet. This will prevent damage to the power supply from
lightning and power surges.
• Unplug the power supply from the outlet before attempting any maintenance or cleaning.
• Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning and then wipe it dry immediately.
• If your power supply does not operate normally, particularly if any unusual sounds or smells are
being emitted, unplug it immediately and contact Hitec RCD USA support for repair.
100-240V AC
50-60Hz
15-30V DC±0.5V
50A±1A
≤ 51A 500MS
±0.3V
±0.5A
< 300mV
89%
>0.98
149°F (65°C)
Dual Smart Cooling Fans
32-104°F (0-40°C)
0-90%
12.0 x 6.7 x 3.3 in (305x170x85mm)
6.8lbs. (3.08kg)
2
