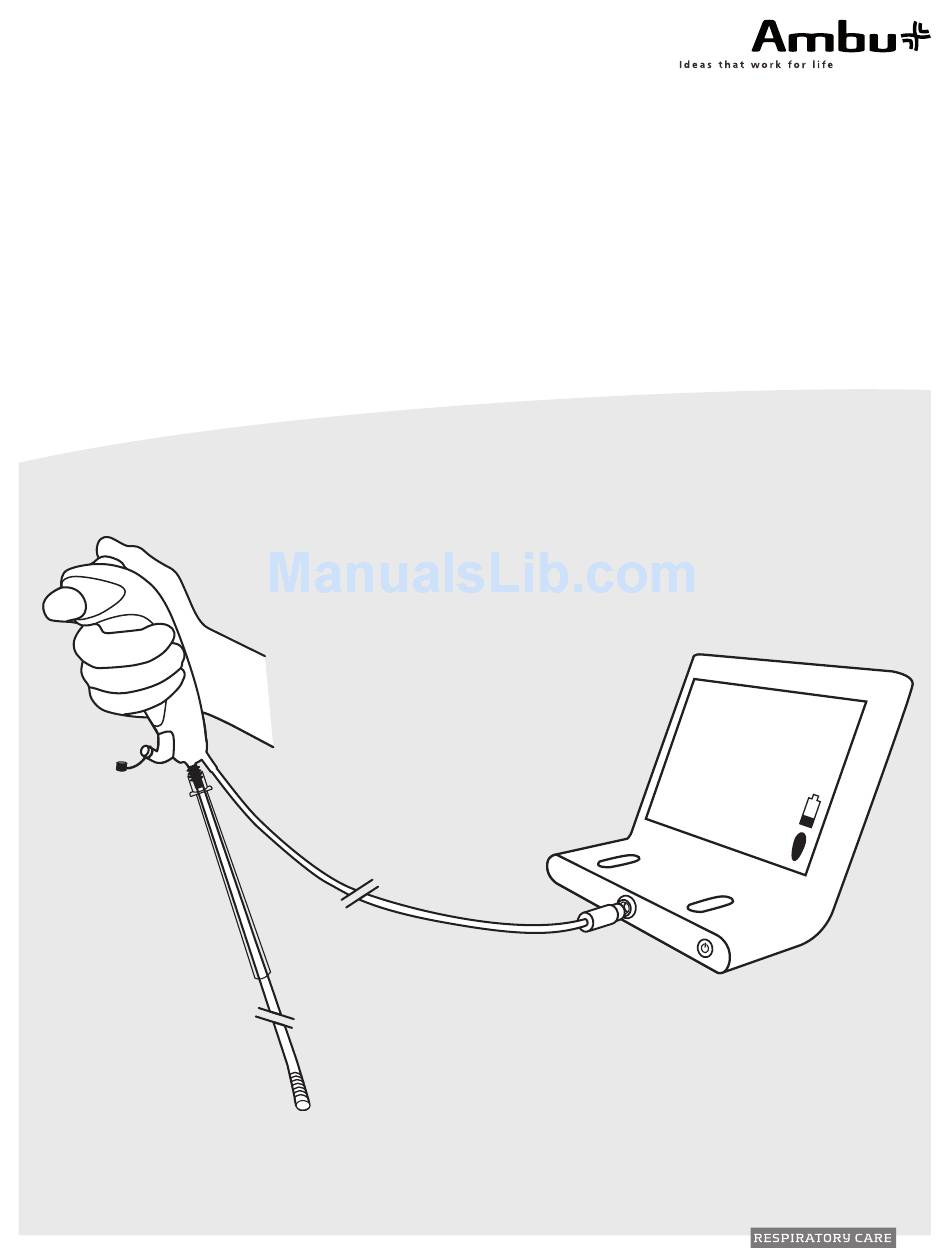

Instructions for use

®
Ambu
aScope™
For Single Patient use only – Sterile
For use by trained clinicians/physicians only. For in-hospital use.
®
aScope™ Monitor
Ambu
For use by trained clinicians/physicians only. For in-hospital use.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the aScope and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ambu aScope

Summary of Contents for Ambu aScope

  • Page 1: Instructions For Use

    Instructions for use ® Ambu aScope™ For Single Patient use only – Sterile For use by trained clinicians/physicians only. For in-hospital use. ® aScope™ Monitor Ambu For use by trained clinicians/physicians only. For in-hospital use.
  • Page 2 +39 039 657811 www.ambu.com Fax: +39 039 6898177 www.ambu.it Germany Spain Ambu GmbH In der Hub 5 Firma Ambu S.L. D-61231 Bad Nauheim C/ Alcalá 261-265, Edificio 1, 3º Izq Tlf. +49 6032 92500 28027 Madrid Fax. +49 800 ambude Tlf.

  • Page 3: Table Of Contents

    Warranty and replacement program......................18 Ambu® is a registered trademark of Ambu A/S, Denmark. Ambu is certified according to ISO 9001 and ISO 13485.

  • Page 4: Warning, Precautions And Notes

    • Total lifetime of the Ambu® aScope™ is 8 hours from first switching on. • Operating time of the Ambu® aScope™ is 30 minutes from switching on. Pay attention to the red symbol (less than 5 minutes left) on the Ambu®...

  • Page 5: Intended Use

    The Ambu® aScope™ achieves its purpose by providing the user with a visual confirmation of where the tip of the Ambu® aScope™ is in the human anatomy. The flexible tip of the Ambu® aScope™ allows the user to guide the ETT in the desired direction.

  • Page 6: Contraindications

    The system is not to be used when delivering highly flammable anaesthetic gasses to the patient such as a Cyclopropane. This could potentially cause patient injury In case of massive bleeding in the airway do not use Ambu® aScope™. 5. Explanation of symbols used...

  • Page 7: Standards Applied

    (WEEE). Only applicable for the Monitor. Li-ion Battery type Lithium ion. Only applicable for the battery inside the Ambu® aScope™ Monitor Re-chargeable battery. Only applicable for the battery inside the Ambu® aScope™ Monitor Tested to comply with FCC Standards- Medical Equipment 6.

  • Page 8: Technical Product Specifications

    30 ~ 85% Storage Temperature 10 ~ 40°C (50 ~ 104°F) Relative humidity 30 ~ 85% Sterilisation Method of sterilisation Table 1 - Specification for the Ambu® aScope™ Ambu® aScope™ Monitor Dimensions Width 196mm (7.76”) Height 160mm (6.30”) Thickness 142mm (5.60”) Weight 1150g (2.5lbs)
  • Page 9 Fixture Mounting interface 75mm (2.96”) Fits poles with thicknesses 10mm ~ 45mm (0.4 ~ 1.8”) Table 2 - Specification for the Ambu® aScope™ Monitor Ambu® aScope™ power supply Dimensions Weight 245g (0.54lbs) Electrical power Power requirement 100 - 240V AC;...

  • Page 10: Ambu® Ascope™ Functions

    The Ambu® aScope™ system will prevent reuse of the Ambu® aScope™. The Ambu® aScope™ can be used/switched on for a total of 30 minutes within an 8 hour period from first switching on. When the 30 minute or 8 hour period is exceeded the power to the Ambu® aScope™ system is switched off. When the Ambu®...

  • Page 11: Ambu® Ascope™ Monitor

    Table 4 – Functions and materials 8.2 Ambu® aScope™ Monitor The monitor displays the video image from the Ambu® aScope™. On startup, it powers the Ambu® aScope™, configures it and checks information from the Ambu® aScope™ to ensure the Ambu® aScope™ usage is acceptable.
  • Page 12 The Ambu® aScope™ Monitor can be placed on a flat surface. But to secure the Ambu® aScope™ Monitor it is recommended to use the bracket supplied. The bracket is mounted on a pole by tightening the wing nut and the Ambu® aScope™ Monitor can then be placed on the bracket. To adjust the position of the Ambu®...

  • Page 13: Connecting The System

    1. Connect the plug on the Ambu® aScope™ cable to the socket on the front of the Ambu® aScope™ Monitor. 2. Push the ON/OFF button on the Ambu® aScope™ Monitor to start up the system. After about 10 seconds the Ambu® aScope™...

  • Page 14: Connecting To An External Monitor/Video Recorder

    Figure 4 - Connecting the Ambu® aScope™ Monitor & the Ambu® aScope™ to an external monitor/video recorder 10. Clinical Application The flexible Ambu® aScope™ is designed so that it can adjust to anatomic variations. This is crucial in the management of difficult airways. It is possible to use the Ambu® aScope™ either orally or nasally.

  • Page 15: Use Of The Ambu® Ascope™ System

    Please be aware that these instructions do not explain or discuss clinical intubation procedures. They describe only the basic operation and precautions related to the operation of this Ambu® aScope™ system. Before initial use of the Ambu® aScope™ system, it is essential that the operator is familiar with the warnings, precautions, notes, indications and contrain- dications found in these user instructions.

  • Page 16: Injection And Control Of The Luer Channel

    Insertion of the Ambu® aScope™ The Ambu® aScope™ can be inserted through the mouth or nose. When the Ambu® aScope™ is inserted, slightly advance it with the distal tip in a neutral position. View the image continuously on the Ambu® aScope™ Monitor when passing the distal end of the Ambu® aScope™ from the mouth/nose to the larynx and from the larynx to the carina.

  • Page 17: Disinfection Of The Ambu® Ascope™ Monitor

    The Ambu® aScope™ Monitor is a reusable device. At the end of its product life, the Ambu® aScope™ Monitor and power supply must be disposed of in accordance with local regulations and collection schemes for disposal of electronic and electrical devices.
