Download this manual See also: Equipment Manual
Equipment information
and assembly guide for your AT&T Service
Please ensure that you have set-up the equipment before the date scheduled
with your AT&T Order Manager for Test and Turn Up of your site
© 2013 AT&T Intellectual Property. All rights reserved. AT&T, Globe logo and other marks are trademarks of AT&T Intellectual Property.

Advertisement

loading
Need help?

Need help?

Do you have a question about the RM 5400 and is the answer not in the manual?

Questions and answers

Related Manuals for AT&T RM 5400

Summary of Contents for AT&T RM 5400

  • Page 1 Equipment information and assembly guide for your AT&T Service Please ensure that you have set-up the equipment before the date scheduled with your AT&T Order Manager for Test and Turn Up of your site © 2013 AT&T Intellectual Property. All rights reserved. AT&T, Globe logo and other marks are trademarks of AT&T Intellectual Property.

  • Page 2: What's In The Box

    What’s in the Box The following components are included in your router package: RJ11 modem cable Labelled ISE644 RM 5400 RJ45 Cable Labelled ISE693 if smart jack is copper Site Documentation Package RJ45 Cable Labelled Cisco 2921 Router ISE-10301 Router power cable...

  • Page 3: Understanding Your Router

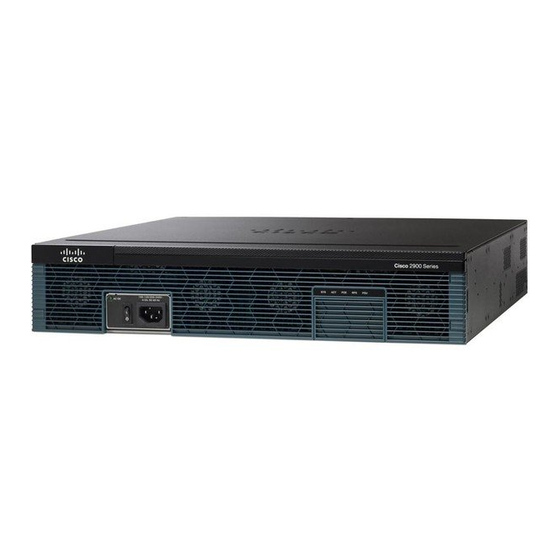

    Understanding your Router Front View of Cisco 2921 Rear View of Cisco 2921 GE0/2 On/Off Switch GE0/0 RJ-45 Consol e Port Power GE0/1 Socket © 2013 AT&T Intellectual Property. All rights reserved. AT&T, Globe logo and other marks are trademarks of AT&T Intellectual Property.
  • Page 4 Understanding your Modem Front View of RM 5400 Rear View of RM 5400 © 2013 AT&T Intellectual Property. All rights reserved. AT&T, Globe logo and other marks are trademarks of AT&T Intellectual Property.
  • Page 5 Understanding your RM 5400 Modem Front Panel of RM 5400 modem Rear Panel of RM 5400 © 2013 AT&T Intellectual Property. All rights reserved. AT&T, Globe logo and other marks are trademarks of AT&T Intellectual Property.
  • Page 6 Step 1 Attach Power Cables to Router and Modem Plug in power cord to router To Power Outlet on the wall © 2013 AT&T Intellectual Property. All rights reserved. AT&T, Globe logo and other marks are trademarks of AT&T Intellectual Property.
  • Page 7 Wait for a couple of minutes till front panel lights are stabilized Setup the RM 5400 Modem where you can get at least 2 Signal Strength lights are lit Move around up to 25 feet from the Router if necessary to get 2 signals.
  • Page 8 Step 3 Connect RM 5400 Modem to the Router Connect console cable to the lower right, blue-edged console port in router RM 5400 cable ISE 10301 Connect to more device console ports if needed as shown © 2013 AT&T Intellectual Property. All rights reserved. AT&T, Globe logo and other marks are trademarks of AT&T Intellectual Property.

  • Page 9: Sfp Port

    Step 4 Connect Router to Access Circuits Connect the RJ45 cable (from the OR – If the smart jack is fiber Smart Jack) to the GE0/0 port connect the fiber cable (from the (Upper far right) Smart Jack) to the SFP module in the SFP port RJ45 Cable Labelled ISE693...
