AT&T Business in a Box®
Quick Start Guide
Please ensure that you have set-up the equipment before the date scheduled
with your AT&T Order Manager for Test and Turn Up of your service
© 2014 AT&T Intellectual Property. All rights reserved. AT&T, Globe logo and other marks are trademarks of AT&T Intellectual Property.
Advertisement
Related Manuals for AT&T Business in a Box
Summary of Contents for AT&T Business in a Box
-
Page 1: Quick Start Guide
AT&T Business in a Box® Quick Start Guide Please ensure that you have set-up the equipment before the date scheduled with your AT&T Order Manager for Test and Turn Up of your service © 2014 AT&T Intellectual Property. All rights reserved. AT&T, Globe logo and other marks are trademarks of AT&T Intellectual Property. -
Page 2: What's In The Box

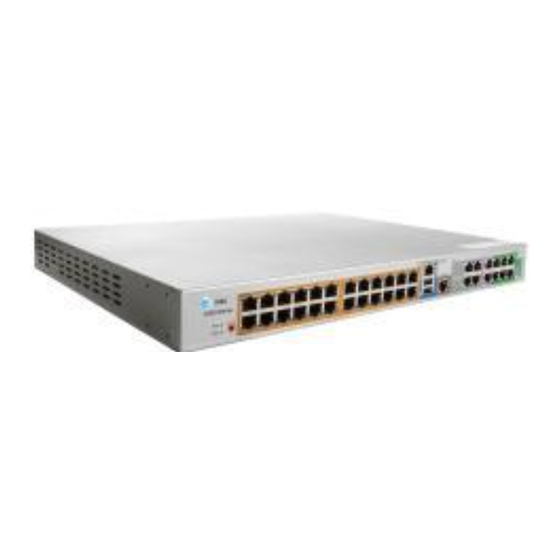

What’s in the Box The following components are included in your router package: RJ11 modem cable Labelled ISE644 (Qty 1) AT&T Business in a Box® 12 or 24 Port Base Unit Router RJ48 T1 Cable Labelled ISE642-025 (Qty 1-4) Site Documentation... - Page 3 Understanding your AT&T Business in a Box® Equipment AT&T Business in a Box® 12 or 24 Port Base Unit Router (24 port depicted) T1 Ports (4) Ethernet LAN Ports (12 or 24) Grey Cable(s) from SmartJack to Grey Customer Provided Cable (RJ45) to IP Phones, PC’s, Port.
-
Page 4: Step 1 - Wall Mounting Instructions
Step 1 – Wall Mounting Instructions (optional to Rack Mounting) The AT&T Business in a Box® router may be wall mounted on a ¾” or thicker plywood backing. The unit is too heavy to be mounted to drywall. Use the two (2) rack-mount brackets, eight (8) bracket screws (included) and four (4) 1 ½”... - Page 5 Step 2 - Attach Power Cord to Router and Proper Grounding Plug in power cord to router and attach customer Grounding Lug – provided ground cable (Customer Provided ground cable) Connect #6 stranded ground to closest earth ground or building bus bar.
- Page 6 Step 3 - Connect Analog POTS line to Internal Modem Connect customer provided Analog POTS line from wall jack to the internal modem using the provided brown RJ11 cable. RJ11 modem cable Labelled ISE644 To wall jack Note: The POTS line may be used in the turn-up of your service as well as by AT&T’s Global Customer Service Center.
- Page 7 Step 3 - Connect Router to T1 Access Circuit(s) Connect your T1 circuit(s) using the Grey T1 cable(s) to the port(s) labeled Port 1-4. To smart jack(s) T1 Cable(s) labelled ISE642 Note: Up to 4 T1’s may be utilized. If using a single T1 then plug the T1 cable into port 1. A second T1 should be plugged into port 2, third into port 3 and fourth into port 4.
- Page 8 Customer provide RJ45 LAN Cable(s) Note: If utilizing your own Ethernet switch/firewall behind the AT&T Business in a Box® then utilize only Port 2 to interconnect. © 2014 AT&T Intellectual Property. All rights reserved. AT&T, Globe logo and other marks are trademarks of AT&T Intellectual Property.
- Page 9 Step 5 - Connect Router to your Analog Key System Connect to your Analog Key System and/or Fax per instructions in your Site Documentation Package. Customer provide RJ11 Cable(s) connecting green To Key System analog ports to your key system or fax ©...
- Page 10 Step 7 (optional) - Connect Router to Analog POTS for Outbound Site Survivability Connect up to 2 customer provided POTS lines to purple ports for outbound calling survivability. Customer provide RJ11 Cable(s) connecting purple To wall jack analog ports to customer provided POTS line(s) ©...
- Page 11 AT&T Business in a Box® User Guide AT&T Business in a Box® includes integrated Wi-Fi capabilities available with your service. A User Guide is available to assist customers with logging into the device using a web browser and configuring to your needs.
