Equipment information
and assembly guide for your AT&T Service
Please ensure that you have set-up the equipment before the date scheduled
with your AT&T Order Manager for Test and Turn Up of your site
© 2013 AT&T Intellectual Property. All rights reserved. AT&T, Globe logo and other marks are trademarks of AT&T Intellectual Property.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RM 5400 and is the answer not in the manual?

Questions and answers

Related Manuals for AT&T RM 5400

Summary of Contents for AT&T RM 5400

  • Page 1 Equipment information and assembly guide for your AT&T Service Please ensure that you have set-up the equipment before the date scheduled with your AT&T Order Manager for Test and Turn Up of your site © 2013 AT&T Intellectual Property. All rights reserved. AT&T, Globe logo and other marks are trademarks of AT&T Intellectual Property.
  • Page 2 What’s in the Box The following components are included in your router package: RM 5400 RJ11 modem cable Labelled ISE644 Site Documentation Package RJ45 Cable Labelled ISE693 Cisco 2901 Router RJ45 Cable Labelled ISE-10301 Router power cable © 2013 AT&T Intellectual Property. All rights reserved. AT&T, Globe logo and other marks are trademarks of AT&T Intellectual Property.
  • Page 3 Understanding your Router Front View of Cisco 2901 Rear View of Cisco 2901 On/Off Switch GE0/0 RJ-45 Console Port Power GE0/1 Socket © 2013 AT&T Intellectual Property. All rights reserved. AT&T, Globe logo and other marks are trademarks of AT&T Intellectual Property.

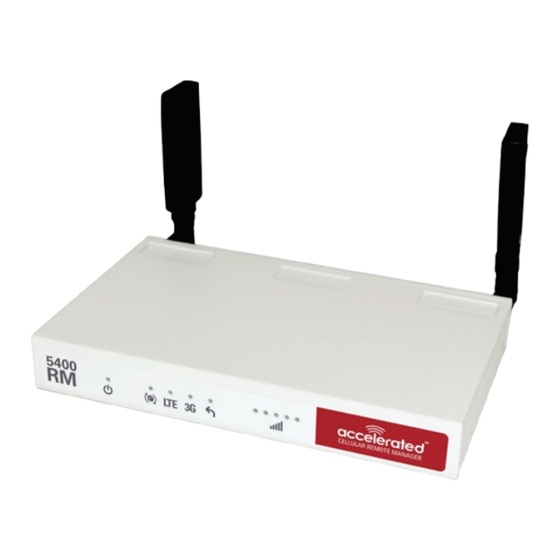

  • Page 4 Understanding your Modem Front View of RM 5400 Rear View of RM 5400 © 2013 AT&T Intellectual Property. All rights reserved. AT&T, Globe logo and other marks are trademarks of AT&T Intellectual Property.
  • Page 5 Understanding your RM 5400 Modem Front Panel of RM 5400 modem Rear Panel of RM 5400 © 2013 AT&T Intellectual Property. All rights reserved. AT&T, Globe logo and other marks are trademarks of AT&T Intellectual Property.
  • Page 6 Step 1 Attach Power Cables to Router Plug in power cord to router To power receptacle © 2013 AT&T Intellectual Property. All rights reserved. AT&T, Globe logo and other marks are trademarks of AT&T Intellectual Property.
  • Page 7 Wait for a couple of minutes till front panel lights are stabilized Setup the RM 5400 Modem where you can get at least 2 Signal Strength lights are lit Move around up to 25 feet from the Router if necessary to get 2 signals.
  • Page 8 Step 3 Connect RM 5400 Modem to the Router Connect console cable to the lower right, blue-edged console port in router RJ45 Cable Labelled ISE-10301 RM 5400 To wall jack Connect to more device console ports if needed as shown...
  • Page 9 Step 4 Connect Router to Access Circuits Connect the RJ45 cable (from the Smart Jack) to the GE0/0 port (Upper far right) or per instructions in your Site Documentation Package. RJ45 Cable To smart jack Labelled ISE693 © 2013 AT&T Intellectual Property. All rights reserved. AT&T, Globe logo and other marks are trademarks of AT&T Intellectual Property.
  • Page 10 Step 5 Connect Router to your Local Network For connection, plug your Ethernet cable RJ45 into GE0/1 port on back of router (Lower right) or per instructions in your Site Documentation Package. Customer provide LAN Cable Other end of Ethernet cable can be plugged into server, computer, private network, etc. Power on installed equipment.
