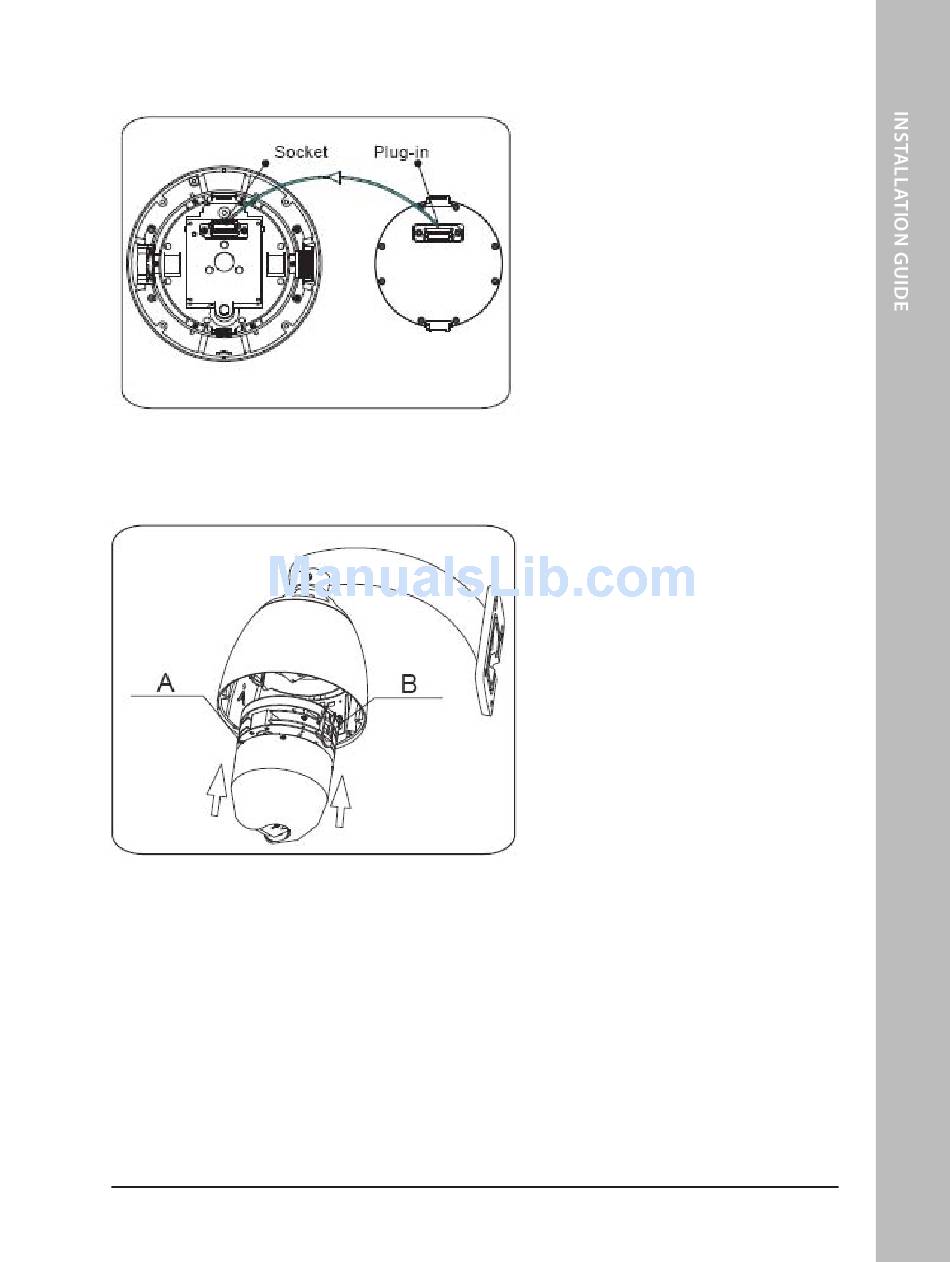

(6) Set the dome address, system baud rate and protocol by configuring DIP
switches SW1 and SW3 located on the side of dome body. The Plug-in on the dome
body must be seated rightly with the socket on the dome base.
(7) To lock the dome body to the dome base, line up the A and B tabs on the dome
body with the A and B label on the dome base. Push in on the tabs. Insert one side
and then the other side. Continue pushing one the ends of the tabs until both
sides click into place. Make sure the plug-in on the dome body is fully locked by the
socket on the dome base. Then press the dome body lightly and check if the dome
body is fully locked to avoid shedding and abrasion with the dome cover.
