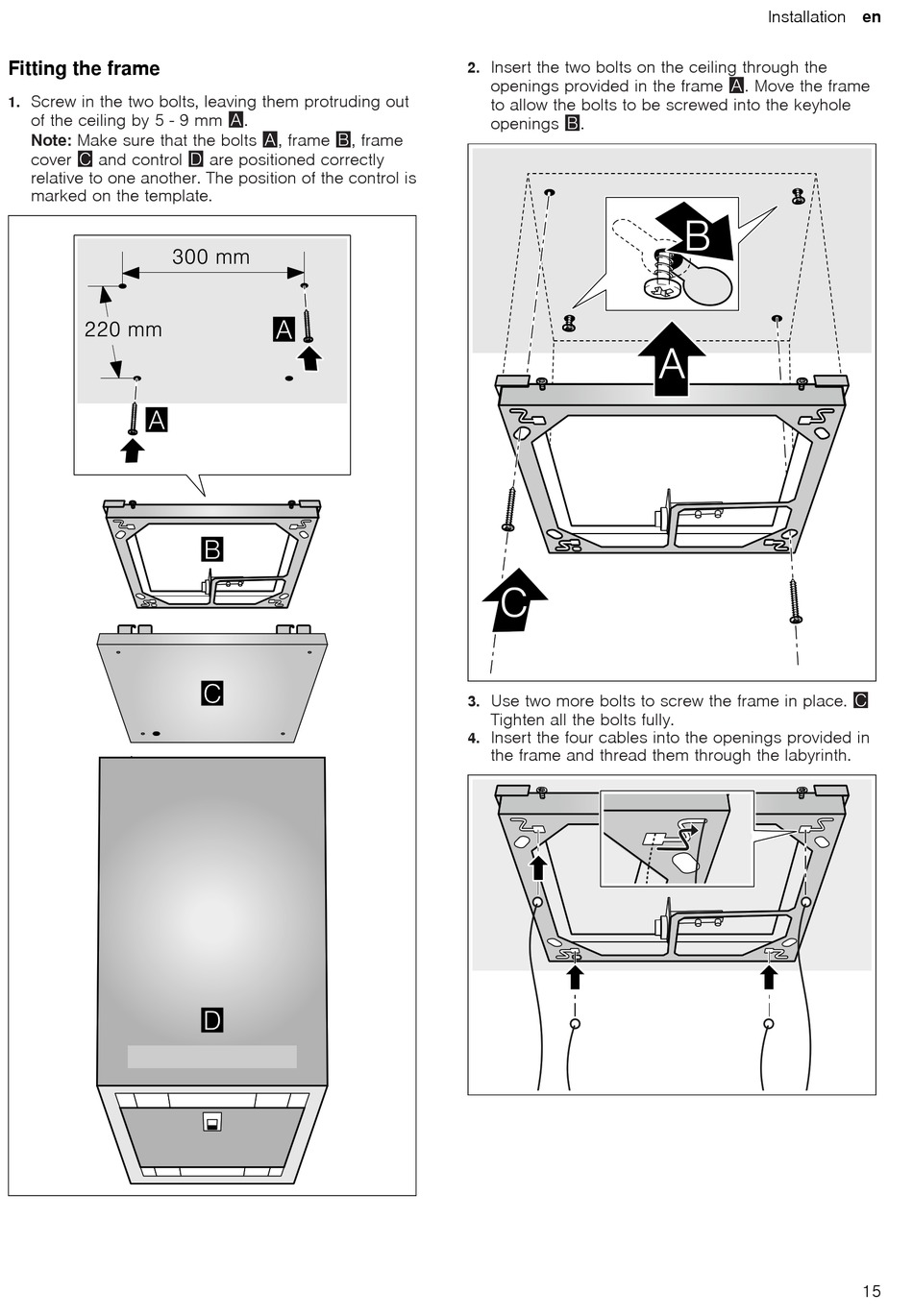

Fitting the frame
Screw in the two bolts, leaving them protruding out
1.
of the ceiling by 5 - 9 mm
Note: Make sure that the bolts
cover
and control
ª
relative to one another. The position of the control is
marked on the template.
.
¨
, frame
, frame
¨
©
are positioned correctly
«
Insert the two bolts on the ceiling through the
2.
openings provided in the frame
to allow the bolts to be screwed into the keyhole
openings
.
©
Use two more bolts to screw the frame in place.
3.
Tighten all the bolts fully.
Insert the four cables into the openings provided in
4.
the frame and thread them through the labyrinth.
Installation en
. Move the frame
¨
ª
15
