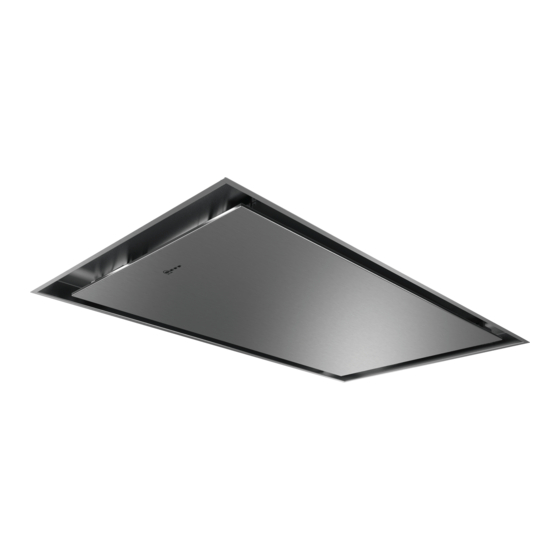

- Page 1 Ceiling-mounted ventilation system [en] User manual and assembly instructions I94CAQ6N0B...
-
Page 2: Table Of Contents
en Safety The appliance can only be used safely if it is Table of contents correctly installed according to the safety in- structions. The installer is responsible for en- Safety ................ 2 suring that the appliance works perfectly at its Preventing material damage ........ - Page 3 Safety en installed and discharge the exhaust gases ▶ Do not install the appliance near a into the open through an exhaust gas sys- solid fuel heating appliance (e.g. wood- tem (e.g. a chimney). With the extractor or coal-burning) unless the heating ap- hood switched on, air is extracted from pliance has a sealed, non-removable the kitchen and the adjacent rooms.
-
Page 4: Preventing Material Damage
en Preventing material damage ¡ The filter cover may swing out. ▶ If the appliance or the power cord is damaged, immediately unplug the ▶ Open the filter cover slowly. power cord or switch off the fuse in the ▶ Take hold of the filter cover after open- fuse box. -
Page 5: Environmental Protection And Saving Energy
Environmental protection and saving energy en ¡ Incorrect cleaning damages the surfaces. Switch the appliance off when you are not using it. Follow the cleaning instructions. ▶ The appliance does not consume any energy. Do not use harsh or abrasive detergents. ▶... -
Page 6: Before Using For The First Time
en Before using for the first time Tip: Align the remote control as precisely as possible Before using for the first time to the infrared receiver for the LED display. Configure the settings for initial start-up. Clean the ap- pliance and accessories. Setting an operating mode Your appliance is set to air extraction mode by default. - Page 7 Basic operation en Switching on intensive mode Sensor control If particularly strong odours or vapours develop, you In automatic mode, a sensor in the appliance detects can use intensive mode. the intensity of the cooking and roasting fumes. De- pending on the setting of the sensor sensitivity, the op- Press ...
-
Page 8: Hob-Based Hood Control
en Hob-based hood control You have the following options for connecting the Switching on the lighting appliances with each other: Press to switch on the lighting. ¡ Connecting the appliance via the Home Connect ▶ app. If both appliances are Home Connect-compat- Note: Colour temperature settings are available in the ible, they can be connected using the Home Con- Home Connect app provided the appliance has this nect app. - Page 9 Home Connect en ¡ Automatically connecting appliance to WLAN home On your mobile device, follow the instructions for automatic network login. network (Wi-Fi) → Page 9 ¡ Connecting appliance to WLAN home network (Wi- a The login process is complete when LED 7 stops Fi) manually → Page 9 flashing and remains continuously lit.
-
Page 10: Cleaning And Servicing
Declaration of Conformity you are using the appliance. Tip: For further information and details about the avail- Constructa Neff Vertriebs-GmbH hereby declares that ability of Remote Diagnostics in your country, please the appliance with Home Connect functionality meets visit the service/support section of your local website: the essential requirements and other relevant provi- www.home-connect.com... - Page 11 Cleaning and servicing en Press the lock on the filter cover. Cleaning painted surfaces Observe the information regarding the cleaning agents. → "Cleaning products", Page 10 Clean using a sponge cloth and hot soapy water in the direction of the finish. Dry with a soft cloth. Cleaning plastic Observe the information regarding the cleaning agents.
- Page 12 en Cleaning and servicing Fold the grease filters upwards and engage the Cleaning grease filters in the locks. dishwasher Make sure that the locks engage. The grease filters filter the grease from the cooking va- Fold the filter cover upwards to close it. pour.
-
Page 13: Troubleshooting
Troubleshooting en Insert the new batteries (3 V CR 2032). Troubleshooting You can rectify minor faults on your appliance yourself. Read the troubleshooting information before contacting after-sales service. This will avoid unnecessary costs. WARNING ‒ Risk of injury! Improper repairs are dangerous. Repairs to the appliance should only be carried out ▶... -
Page 14: Accessories
en Accessories Function-relevant genuine spare parts according to the Unplug the appliance from the mains. corresponding Ecodesign Order can be obtained from Cut through the power cord. Customer Service for a period of at least 10 years from Dispose of the appliance in an environmentally the date on which your appliance was placed on the friendly manner. - Page 15 Installation instructions en Dimensions You will find the dimensions of the appliance here Safety clearances Comply with the safety clearances for the appliance. Secure installation Follow these safety instructions when installing the ap- pliance. WARNING ‒ Risk of poisoning! Risk of poisoning from flue gases being drawn back in. Room-air-dependent heat-producing appliances (e.g.
- Page 16 en Installation instructions In any case, consult your responsible chimney Take hold of the filter cover after opening until it ▶ ▶ sweep. They are able to assess the house's entire no longer swings out. ventilation setup and will suggest the suitable ventil- Close the filter cover slowly.
- Page 17 Installation instructions en ¡ An exhaust air pipe that is made of non-combustible ¡ The appliance corresponds to protection class 1. material. Therefore, only use the appliance with a protective ¡ To prevent condensate from returning, fit the ex- earth connection. haust air pipe from the appliance with a 1°...
- Page 18 en Installation instructions Screw the flat duct connection onto the fan group. Note: To ensure that the appliance is not damaged, do not overtighten the screws. Carefully tighten screws in succession until the ap- pliance is flush-mounted on the ceiling. Connecting the appliance Undo the screws on the top frame assembly using a screwdriver and remove the top frame assembly.
- Page 19 Installation instructions en Loosen the screws on the side covers and remove Push the fan box to the other side and connect the the covers. pipework. Undo the opposite screws to loosen the fan box. Position the fan box in the centre and screw it firmly in place.
- Page 20 en Installation instructions Store the remaining cable in the gap. Insert the side covers and screw them firmly in place. Tighten the screw on the metal hook so that it is firmly in place. Connect the cable. Turning the air outlet clockwise Ausgehend vom Auslieferungszustand, den Lüfter- kasten im Uhrzeigersinn drehen, sodass der Luftauslass nach rechts zeigt.
- Page 21 Installation instructions en Fit the cover frame and screw it firmly in place. Mount the filter cover on the designated screws and push it backwards/forwards depending on the key hole opening into the narrow section. Fitting the filter cover WARNING ‒ Risk of injury! ¡...
- Page 22 en Installation instructions Use only suitable tools and equipment. Loosen the screws on the side covers and remove ▶ the covers. ¡ Components inside the appliance may have sharp edges. Wear protective gloves. ▶ ¡ Risk of injury when opening and closing the hinges. Keep your hands away from the hinges.
- Page 23 Installation instructions en Undo the opposite screws to loosen the fan box. Rotate the fan box in such a way that the air outlet faces forwards. T 20 Push the fan box to the side and release the pipe- work. Remove the fan box. Loosen the mounting brackets on the appliance us- ing a screwdriver.
- Page 24 *9001482617* Constructa-Neff Vertriebs-GmbH 9001482617 Carl-Wery-Straße 34 81739 München (000303) GERMANY...
