Summary of Contents for Ubiquiti UAP-Outdoor-5

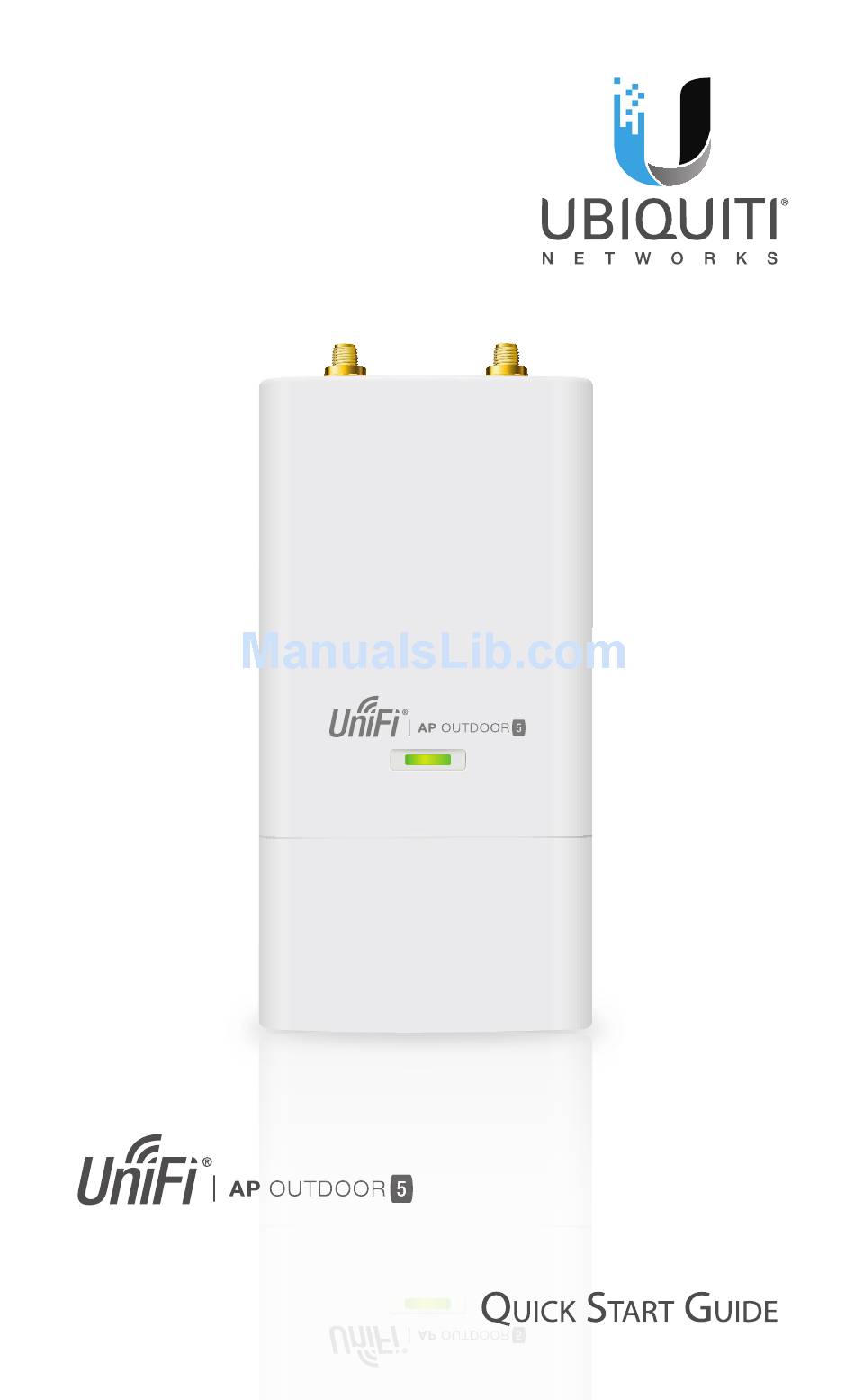

- Page 1 5 GHz 802.11n Outdoor Access Point Model: UAP-Outdoor-5...
-
Page 2: Package Contents
Quick Start with Mount Bracket Guide TERMS OF USE: Ubiquiti radio devices must be professionally installed. Shielded Ethernet cable and earth grounding must be used as conditions of product warranty. TOUGHCable ™ designed for outdoor installations. It is the professional installer’s responsibility to follow local country regulations, including operation within legal frequency channels, output power, and Dynamic Frequency Selection (DFS) requirements. -
Page 3: Installation Requirements
Ethernet connections and should be grounded through the AC ground of the PoE. We recommend that you protect your networks from harmful outdoor environments and destructive ESD events with industrial-grade, shielded Ethernet cable from Ubiquiti Networks. For more details, visit: www.ubnt.com/toughcable System Requirements •... -
Page 4: Network Topology Requirements
Controller v5.x (or newer) software, located either on-site and connected to the same Layer-2 network, or off-site in the cloud or NOC Wireless Uplinked UAP/UAP-LR Wired UAP-PRO UniFi Cloud Key (UniFi Controller) UAP-Outdoor-5 UniFi Switch UniFi Security Gateway Pro Internet CURRENT SITE USERNAME Default admin WLAN 0.94... -
Page 5: Hardware Overview
Hardware Overview Status LED Color Status Flashing Amber Initializing. Steady Amber Factory default, waiting to be integrated. Device is busy; do not touch or unplug it. Alternating This usually indicates that a process such Amber/Green as a firmware upgrade is taking place. Used to locate and identify a UniFi device. - Page 6 The Main Ethernet port is a 10/100 PoE port used to connect the power and should be connected to the LAN and DHCP server. Power can be provided by one of the following: • PoE Adapter (included) • Ubiquiti Networks UniFi Switch with PoE • Ubiquiti Networks TOUGHSwitch ™ *640-00006-04*...
-
Page 7: Hardware Installation
Hardware Installation The UniFi AP can be mounted to a wall or on a pole. Perform the steps for the appropriate installation: Wall Mount To mount the UniFi AP on a wall, use the included Wall Mount Bracket, Screws, and Screw Anchors. 1. -
Page 8: Pole Mount
6. Align the mounting tabs on the UniFi AP with the notches on the Wall Mount Bracket, and slide the UniFi AP down until it locks into place. Pole Mount To mount the UniFi AP on a pole, use the included Metal Strap: 1. - Page 9 2. Straighten out the end of the Metal Strap and slide it through the back of the UniFi AP. 3. Wrap the Metal Strap around the pole. Use a screwdriver to turn the screw clockwise and securely fasten the strap to the pole.
- Page 10 4. Connect the two Antennas to the RP-SMA connectors. Powering the UniFi AP The UniFi AP can be powered by the included PoE Adapter or a PoE switch such as a TOUGHSwitch or UniFi Switch with PoE. 1. Lift the locking tab of the Port Cover and slide the cover down to remove it.
- Page 11 2. Connect an Ethernet cable to the Main port. Secondary Main Connecting to a PoE Adapter 1. Connect the Ethernet cable from the UniFi AP to the POE port of the PoE Adapter. 2. Connect an Ethernet cable from your LAN to the LAN port of the PoE Adapter.
- Page 12 Mounting the PoE Adapter (Optional) 1. Remove the PoE Mounting Bracket from the adapter, place the bracket at the desired location, and mark the two holes. 2. Pre-drill the holes if necessary, and secure the bracket using two fasteners (not included). 3.
-
Page 13: Software Installation
UniFi Controller management interface. For information on configuring and using the UniFi Controller software, refer to the User Guide. Mobile App Installation Ubiquiti Networks also offers the UniFi mobile app, which is available from the App Store (iOS) or Google Play Store ™... -
Page 14: Specifications
Specifications UAP-Outdoor-5 Dimensions 170 x 80 x 30 mm (6.69 x 3.15 x 1.18") Weight 230 g (8.11 oz) without Antennas 294 g (9.67 oz) with Antennas Networking Interface (2) 10/100 Ethernet Ports Buttons Reset Power Method 24V Passive Power over Ethernet... -
Page 15: Safety Notices
Safety Notices Read, follow, and keep these instructions. Heed all warnings. Only use attachments/accessories specified by the manufacturer. WARNING: Do not use this product in location that can be submerged by water. WARNING: Avoid using this product during an electrical storm. -
Page 16: Limited Warranty
Ubiquiti MAC label, or is missing any other original Ubiquiti label(s); or (VII) has not been received by Ubiquiti within 30 days of issuance of the RMA. In addition, the above warranty shall apply only if: the product has been properly installed and used at all times in accordance, and in all material respects, with the applicable Product documentation;... -
Page 17: Limitation Of Liability
SUBJECT TO LIMITATIONS, INTERRUPTIONS, DELAYS, CANCELLATIONS AND OTHER PROBLEMS INHERENT IN THE USE OF COMMUNICATIONS FACILITIES. UBIQUITI NETWORKS, ITS AFFILIATES AND ITS AND THEIR THIRD PARTY PROVIDERS ARE NOT RESPONSIBLE FOR ANY INTERRUPTIONS, DELAYS, CANCELLATIONS, DELIVERY FAILURES, DATA LOSS, CONTENT CORRUPTION, PACKET LOSS, OR OTHER DAMAGE RESULTING FROM ANY OF THE FOREGOING. - Page 18 Note Some countries, states and provinces do not allow exclusions of implied warranties or conditions, so the above exclusion may not apply to you. You may have other rights that vary from country to country, state to state, or province to province. Some countries, states and provinces do not allow the exclusion or limitation of liability for incidental or consequential damages, so the above limitation may not apply to you.
- Page 19 ISED Canada CAN ICES-3(A)/NMB-3(A) This device complies with ISED Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: This device may not cause interference, and This device must accept any interference, including interference that may cause undesired operation of the device. This radio transmitter (IC: 6545A-M5) has been approved by ISED Canada to operate with the antenna types listed below with the maximum permissible gain and required antenna impedance for each antenna type...
-
Page 20: Australia And New Zealand
Australia and New Zealand Warning: This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. CE Marking CE marking on this product represents the product is in compliance with all directives that are applicable to it. -
Page 21: Rohs/Weee Compliance Statement
RoHS/WEEE Compliance Statement English European Directive 2012/19/EU requires that the equipment bearing this symbol on the product and/or its packaging must not be disposed of with unsorted municipal waste. The symbol indicates that this product should be disposed of separately from regular household waste streams. - Page 22 Español La Directiva 2012/19/UE exige que los equipos que lleven este símbolo en el propio aparato y/o en su embalaje no deben eliminarse junto con otros residuos urbanos no seleccionados. El símbolo indica que el producto en cuestión debe separarse de los residuos domésticos convencionales con vistas a su eliminación.
-
Page 23: Declaration Of Conformity
Français [French] Le soussigné, UBIQUITI NETWORKS, déclare que l’équipement radioélectrique du type UAP-Outdoor-5 est conforme à la directive 2014/53/UE. Le texte complet de la déclaration UE de conformité est disponible à l’adresse internet suivante: www.ubnt.com/compliance Deutsch [German] Hiermit erklärt UBIQUITI NETWORKS, dass der Funkanlagentyp UAP-Outdoor-5... -
Page 24: Online Resources
Slovenčina [Slovak] UBIQUITI NETWORKS týmto vyhlasuje, že rádiové zariadenie typu UAP-Outdoor-5 je v súlade so smernicou 2014/53/EÚ. Úplné EÚ vyhlásenie o zhode je k dispozícii na tejto internetovej adrese: www.ubnt.com/compliance Slovenščina [Slovenian] UBIQUITI NETWORKS potrjuje, da je tip radijske opreme UAP-Outdoor-5 skladen z Direktivo 2014/53/EU.
