802.11n PRO Access Point
Model: UAP-PRO

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UAP-PRO and is the answer not in the manual?

Questions and answers

Summary of Contents for Ubiquiti UAP-PRO

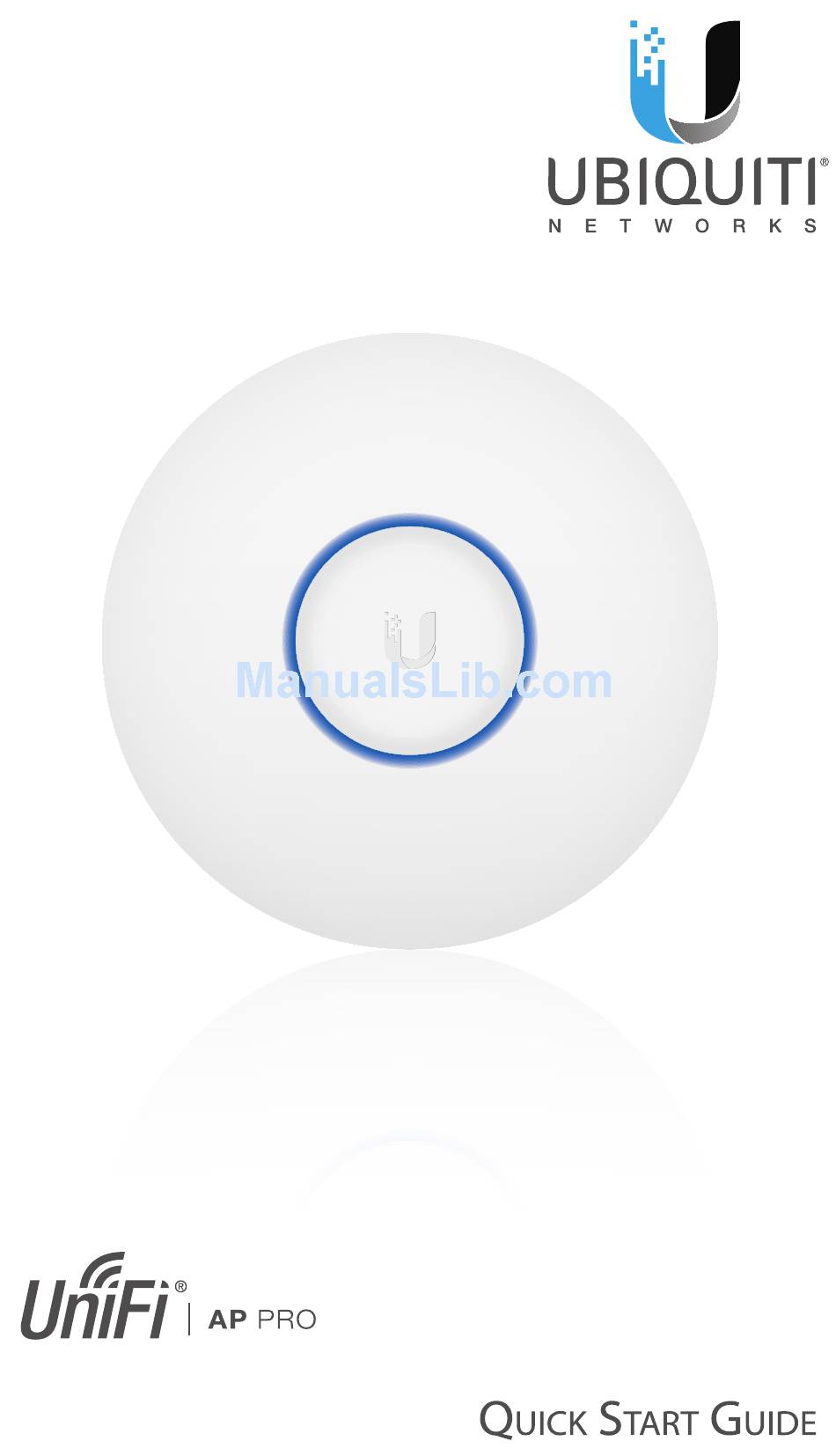

  • Page 1 802.11n PRO Access Point Model: UAP-PRO...
  • Page 2: Package Contents

    Introduction Thank you for purchasing the Ubiquiti Networks® UniFi® AP PRO. This Quick Start Guide is designed to guide you through installation and also includes warranty terms. Package Contents UniFi AP-PRO Mounting Bracket Ceiling Backing Plate Flat Head Screws Keps Nuts...
  • Page 3: System Requirements

    • A management station computer running the UniFi Controller software, located either onsite and connected to the same Layer-2 network, or off-site in a cloud or NOC UAP-Pro UAP-AC Outdoor CURRENT SITE REFRESH RATE...
  • Page 4: Hardware Overview

    Hardware Overview LED Color Status Factory default, waiting to be integrated. White Initializing. Flashing White Device is busy; do not touch or unplug it. Alternating This usually indicates that a process such White/Blue as a firmware upgrade is taking place. Indicates the device has been successfully Blue integrated into a network and is working...
  • Page 5 LAN and DHCP server. Power can be provided by any of the following: • Included Gigabit PoE adapter • 48V, 802.3af compliant switch • Ubiquiti Networks UniFi Switch • Ubiquiti Networks TOUGHSwitch PRO, model TS-8-PRO ™...
  • Page 6: Hardware Installation

    Hardware Installation The UniFi AP-PRO can be mounted to the wall or ceiling. Perform the steps for the appropriate installation: Wall Mount 1. Position the Mounting Bracket at the desired location on the wall with the cable feed slot pointed towards the floor. 2.
  • Page 7 4. Insert the Screw Anchors into the 6 mm holes. Secure the Mounting Bracket to the wall by inserting the Screws into the anchors. 5. Connect the Ethernet cable to the Main/48V Ethernet port.
  • Page 8 6. Align the notch on the UniFi AP-PRO with the notch on the Mounting Bracket. 7. Turn the UniFi AP-PRO clockwise until it locks into place.
  • Page 9: Ceiling Mount

    Ceiling Mount 1. Remove the ceiling tile. 2. Place the Mounting Bracket in the center of the ceiling tile. Mark the three mounting screw holes and 25 mm hole for the Ethernet cable. 25 mm Hole for Ethernet Cable Feed 3.
  • Page 10 4. Secure the Mounting Bracket to the ceiling tile using the Ceiling Backing Plate, Flathead Screws, and Keps Nuts. Then feed the Ethernet cable through the 25 mm hole.
  • Page 11 5. Connect the Ethernet cable to the Main/48V Ethernet port. 6. Align the notch on the UniFi AP-PRO with the notch on the Mounting Bracket. 7. Turn the UniFi AP-PRO clockwise until it locks into place. 8. Set the ceiling tile back into place.
  • Page 12 Powering the UniFi AP-PRO The UniFi AP-PRO can be powered by the included Gigabit PoE adapter or a compatible PoE device. Connecting to the Gigabit PoE Adapter 1. Connect the Ethernet cable from the Main/48V Ethernet port of the UniFi AP-PRO to the adapter’s POE port. 2.
  • Page 13 Connecting to a PoE Device Connect the other end of the Ethernet cable coming from the Main/48V Ethernet port on the UniFi AP directly to a PoE port on one of the following: • 48V, 802.3af compliant switch • UniFi Switch UniFi Switch Power Connection Diagram •...
  • Page 14: Software Installation

    Software Installation Download and install the latest version of the UniFi Controller software at downloads.ubnt.com/unifi. Launch the software and follow the on-screen instructions. Step-by-step instructions are available in the User Guide located on our website: documentation.ubnt.com/unifi After you have installed the software and run the UniFi Installation Wizard, a login screen will appear for the UniFi Controller management interface.
  • Page 15: Specifications

    Specifications UniFi AP PRO Dimensions 200 x 200 x 36.5 mm (7.87 x 7.87 x 1.44") Weight 298 g (10.51 oz) Mounting Kits Included 358 g (12.63 oz) Networking Interfaces (2) 10/100/1000 Ethernet Ports Buttons Reset Antennas 2.4 GHz 3 Integrated (Supports 3x3 MIMO with Spatial Diversity) 5 GHz 2 Integrated...
  • Page 16: Safety Notices

    Safety Notices Read, follow, and keep these instructions. Heed all warnings. Only use attachments/accessories specified by the manufacturer. WARNING: Do not use this product in location that can be submerged by water. WARNING: Avoid using this product during an electrical storm.
  • Page 17: Limited Warranty

    (VI) has no original Ubiquiti MAC label, or is missing any other original Ubiquiti label(s); or (VII) has not been received by Ubiquiti within 30 days of issuance of the RMA.
  • Page 18: Limitation Of Liability

    SUBJECT TO LIMITATIONS, INTERRUPTIONS, DELAYS, CANCELLATIONS AND OTHER PROBLEMS INHERENT IN THE USE OF COMMUNICATIONS FACILITIES. UBIQUITI NETWORKS, ITS AFFILIATES AND ITS AND THEIR THIRD PARTY PROVIDERS ARE NOT RESPONSIBLE FOR ANY INTERRUPTIONS, DELAYS, CANCELLATIONS, DELIVERY FAILURES, DATA LOSS, CONTENT CORRUPTION, PACKET LOSS, OR OTHER DAMAGE RESULTING FROM ANY OF THE FOREGOING.
  • Page 19 Note Some countries, states and provinces do not allow exclusions of implied warranties or conditions, so the above exclusion may not apply to you. You may have other rights that vary from country to country, state to state, or province to province. Some countries, states and provinces do not allow the exclusion or limitation of liability for incidental or consequential damages, so the above limitation may not apply to you.
  • Page 20: Industry Canada

    Industry Canada CAN ICES-3(A)/NMB-3(A) This Class A digital apparatus complies with Canadian CAN ICES-3(A). To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that permitted for successful communication.
  • Page 21: Rohs/Weee Compliance Statement

    CE Marking CE marking on this product represents the product is in compliance with all directives that are applicable to it. Alert Sign (!) Follows CE Marking Alert sign must be indicated if a restriction on use applied to the product and it must follow the CE marking.
  • Page 22 Español La Directiva 2002/96/CE de la UE exige que los equipos que lleven este símbolo en el propio aparato y/o en su embalaje no deben eliminarse junto con otros residuos urbanos no seleccionados. El símbolo indica que el producto en cuestión debe separarse de los residuos domésticos convencionales con vistas a su eliminación.
  • Page 23: Declaration Of Conformity

    [German] Anforderungen und den anderen relevanten Vorschriften der Richtlinie 1999/5/EG befindet. Ελληνική Δια του παρόντος, UBIQUITI NETWORKS, δηλώνει ότι αυτή η συσκευή UBIQUITI NETWORKS, είναι σε συμμόρφωση με τις [Greek] βασικές απαιτήσεις και τις λοιπές σχετικές διατάξεις της οδηγίας 1995/5/ΕΚ.
  • Page 24: Online Resources

    ©2012-2015 Ubiquiti Networks, Inc. All rights reserved. Ubiquiti, Ubiquiti Networks, the Ubiquiti U logo, the Ubiquiti beam logo, and UniFi are trademarks or registered trademarks of Ubiquiti Networks, Inc. in the United States and in other countries. All other trademarks are the property of their respective owners.
