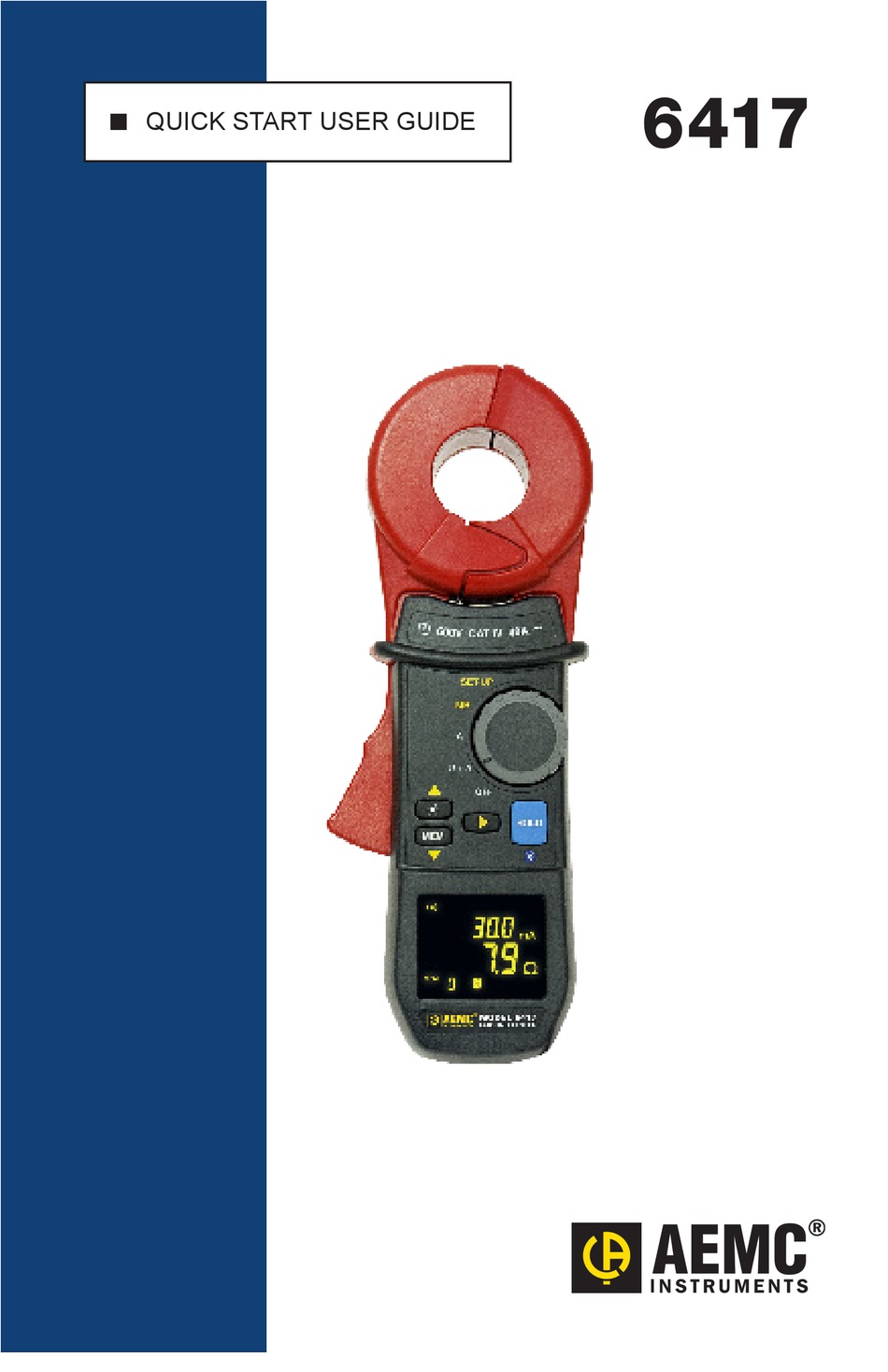

- Page 1 6417 QUICK START USER GUIDE ...
-
Page 2: Product Packaging
Also Included: (4) 1.5V AA Batteries Quick Start Guide (1) Wrist Strap (1) Safety Sheet (20 languages) USB STICK: DataView software and complete user manual for the Model 6417 ® can be located on the USB stick supplied with the instrument. -
Page 3: Statement Of Compliance
The recommended calibration interval for this instrument is 12 months and begins on the date of receipt by the customer. For recalibration, please use our calibration services. Refer to our repair and calibration section at www.aemc.com. Serial #: ________________________________ Catalog #: 2141.02 Model #:... - Page 4 Thank you for purchasing the AEMC Clamp-on Ground Resistance Tester. For best results from your instrument and for your safety, read the enclosed operating instructions carefully and comply with the precautions for use. These products must be only used by qualified and trained users.
-
Page 5: Precautions For Use
Precautions for Use This instrument and its accessories comply with safety standards EN 61010-1, EN 61010-030, and EN 61010-2-032 for voltages of 600V in Category IV at an altitude of less than 2000m with a pollution degree of not more than 2. Failure to observe the safety instructions may result in electric shock, fire, explosion, and destruction of the instrument and of the installations. -
Page 6: Control Features
Control Features SET-UP HOLD Head Assembly: Consists of two individually shielded magnetic cores. Guard: Safety guard; do not place hands above this guard Lever: Opens or closes jaws. : Toggles display backlight on/off MEM: Store measurements into memory ►: Navigates and validates measurement displays OLED Display: Crisp, clean and bright (Organic Light Emitting Diode) display Rotary Switch: Selects measurement functions and instrument SET-UP HOLD: Freezes last measured value on the display... -
Page 7: Button Functions
Button Functions Button Description • When the rotary switch is set to Ω+A or A: Increases the brightness of the OLED display; makes it easier to read the display in an environment with strong background illumination. Highlighting activated for 30 seconds. •... -
Page 8: Instrument Configuration (Set-Up)
Instrument Configuration (SET-UP) The SET-UP position gives access to the following options to set user defined parameters for instrument configuration (NOTE: These parameters can also be configured in DataView): Function Erases stored measurements. Enables/disables the buzzer. Enables/disables Auto Power OFF Sets the impedance alarm threshold (W). -
Page 9: Getting Started
Getting Started Inserting the Batteries • Disconnect the instrument from any connections and turn the rotary switch to the OFF position. • Use a Phillips head screwdriver to unscrew the 2 attachment screws and remove the battery compartment cover. • Remove the old batteries and replace them with 4 new batteries (LR6, AA, 1.5V), observing the polarities. -
Page 10: Standard And Advanced Modes
® NOTE: For more information on using the DataView software, refer to the Model ® 6417 user manual supplied on the USB stick. NOTE: You can retrieve and analyze measurement results with the DataView soft- ® ware or with an Android app through the Bluetooth communication port. -
Page 11: Repair And Calibration
NOTE: Do not ship instruments to our Foxborough, MA address. Limited Warranty The Model 6417 is warranted to the owner for a period of one year from the date of original purchase against defects in manufacture. This limited warranty is given by AEMC Instruments, not by the distributor from whom ®... - Page 12 08/16 99-MAN 100396 v2 Chauvin Arnoux , Inc. d.b.a. AEMC Instruments ® ® 15 Faraday Drive • Dover, NH 03820 USA • Phone: (603) 749-6434 • Fax: (603) 742-2346 www.aemc.com...
