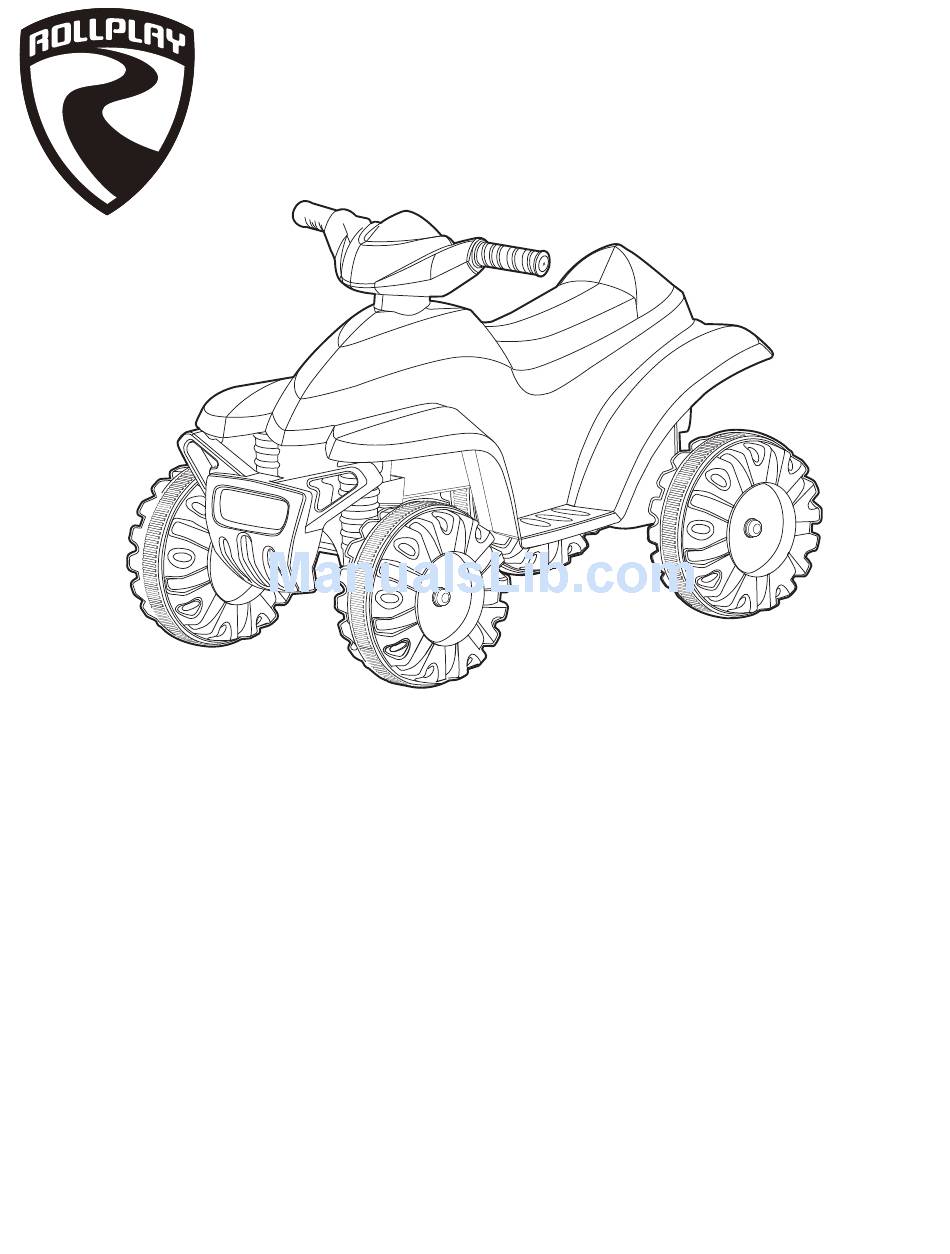

RollPlay 6V Mini Quad
Owner's Manual and Assembly Instructions
Model #: ACQUAD-P, ACQUAD-CAM, ACQUAD
Read and understand the entire manual before assembly and operation. The vehicle must be
assembled by an adult who has read and understands the instructions.
Made in China.
Styles and colors may vary. Do not return to store. Visit us online at www.rollplay.net for
assistance and replacement parts.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 6V Mini Quad ACQUAD-P and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Rollplay 6V Mini Quad ACQUAD-P

Summary of Contents for Rollplay 6V Mini Quad ACQUAD-P

  • Page 1 Read and understand the entire manual before assembly and operation. The vehicle must be assembled by an adult who has read and understands the instructions. Made in China. Styles and colors may vary. Do not return to store. Visit us online at www.rollplay.net for assistance and replacement parts.
  • Page 2 Introduction Thank you for purchasing this RollPlay vehicle from Rollplay. We hope the rider enjoys it for miles to come. Please read this instruction guide carefully before assembling and operating the vehicle. Please have your model number and serial number ready before calling. Please have proof of purchase.
  • Page 3 Call Customer Service if you need assistance or replacement parts. Please have your model number and serial number ready before calling. Please have proof of purchase. Keep your sales receipt or register your product at www.rollplay.net as we may require proof of purchase. customerservice@rollplay.net 1-888-982-9309...

  • Page 5: Table Of Contents

    Table of Contents Safety ............6 Parts ............8 Charging Instructions ........9 Assemble the Wheels ........10 Attach the Handlebar ........11 Assemble the Front Bumper .....12 Attach the Seat ..........13 Operating Instructions .......14 Maintenance ..........15 General Care ..........16 Troubleshooting Guide ......17 FCC Information ........19 Service and Repairs ........20 Warranty ............21 Product Registration .........23...

  • Page 6: Safety

    Safety WARNING: SAFETY RIDING RULES The user must follow all safety rules and guidelines, or serious injury or death may occur to the user. Always use common sense and safe practices when using the vehicle. The user must be at least 18 months old and weigh no more than 20.4 kg (45 lbs). This product contains small parts that are for adult assembly only.
  • Page 7 Safety (Continued) WARNING: BATTERY SAFETY • Battery posts, terminals and related accessories contain lead and lead compound (asic) chemicals known to the state of California to cause cancer, reproductive harm, and are toxic and corrosive. DO NOT open the battery. •...

  • Page 8: Parts

    Parts 1. Battery 2. Charger 3. Quad Body 4. Wheels (4) 5. Hex Nuts (Installed on wheel axles) 6. Front Bumper 7. Handlebar 8. Seat 9. Screw Wrench 10. Hardware Bag...

  • Page 9: Charging Instructions

    Charging Instructions YOU MUST CHARGE THE BATTERY FOR 24 HOURS BEFORE THE FIRST USE! ONLY AN ADULT SHOULD HANDLE THE BATTERY AND CHARGER. To Charge the Battery: 1. Ensure the quad is stopped and turned off. 2. Unlock and remove the seat. 3.

  • Page 10: Assemble The Wheels

    Wheel Assembly Flat Washer Hex Nut Wheel Split Washer 1. Remove the hex nut, split washer and small, flat washer from each axle. The large, flat washer stays on the axle. 2. Slide the wheel (4) onto the axle. 3. Slide small, flat washer onto the axle. 4.

  • Page 11: Attach The Handlebar

    Attach the Handlebar 1. Remove the screw and nut from the handlebar assembly (7) before attaching. 2. Plug the handlebar connector (A) into the dashboard connector (B). 3. Slide the handle bar (7) onto the steering rod, and align the screw holes on the handlebar with the holes on the steering rod.

  • Page 12: Assemble The Front Bumper

    Assemble the Front Bumper 1. Flip the quad onto its back 2. Slide the square hole on the back of the front bumper (6) onto the front post protruding from the quad 3. Align the three screw holes on the bumper with the three screw holes on the quad.

  • Page 13: Attach The Seat

    Attach the Seat 1. Ensure the red battery connector is connected to the red engine connector before attaching the seat 2. Position the seat (8) over the battery compartment 3. Turn the lock at the end of the seat to the open position and align the lock with the lock hole on the back of the battery compartment 4.

  • Page 14: Operating Instructions

    Operation Finger Switch • The rider should be sitting comfortably on the quad • Push the finger switch on the handlebar to go forward • Release the button to stop the quad • The quad drives 2 MPH in a forward movement only •...

  • Page 15: Maintenance

    Maintenance Important Battery and Charger Information • Only an adult who has read and understands the safety warnings may handle and operate the battery and battery charger. Keep away from children. • Charge the battery for 24 hours before using the vehicle for the first time.

  • Page 16: General Care

    General Care • Regularly inspect all vehicle parts to ensure they are in good working condition. • Regularly inspect the charger, cord, plug, and other related parts for damage. • Remove any damaged parts and immediately contact Customer Service for replacement parts. See Service and Repairs on Page 20 for more information.

  • Page 17: Troubleshooting Guide

    Troubleshooting Guide Completely read through the manual and troubleshooting guide before contacting Customer Service. Problem Potential Cause Solution Vehicle does not run Battery is low Recharge the battery Thermal fuse tripped Reset fuse Snap pins are loose Tighten snap pins Loose wires or loose Ensure the battery connectors connectors...
  • Page 18 Problem Potential Cause Solution Vehicle needs a push to Loose wires or loose Ensure the battery connectors start connectors are securely attached. If wires are loose, contact Customer Service for repairs “Dead spot” on motor A “dead spot” means electricity is not being delivered to the terminal.

  • Page 19: Fcc Information

    FCC Information This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

  • Page 20: Service And Repairs

    If your product requires service, repairs or replacement parts, please visit us online at www.rollplay.net Or contact us at: 888-982-9309 Phone: 1- Email: customerservice@rollplay.net Web: www.rollplay.net Hours: 9 AM - 5 PM (CST), Monday - Friday For a list of available replacement parts, please visit www.rollplay.net.

  • Page 21: Warranty

    This warranty does not cover, and is not intended to exclude any liability on the part of Rollplay, whether under this warranty or implied by law for any indirect or consequential damages for breach of warranty. Some states may not allow the exclusion or limitation so this limitation may not apply to you.

  • Page 23: Product Registration

    Address: City: State: Zip Code: Email: Phone: Date of Purchase: The following product information is on the cover of the owner’s manual. Product Name: Model Number: Serial Number: Place of Purchase: Questions or comments? Contact us at www.rollplay.net or 1-888-982-9309...
