Ozito MCS-2355 Instruction Manual

Ozito MCS-2355 Instruction Manual

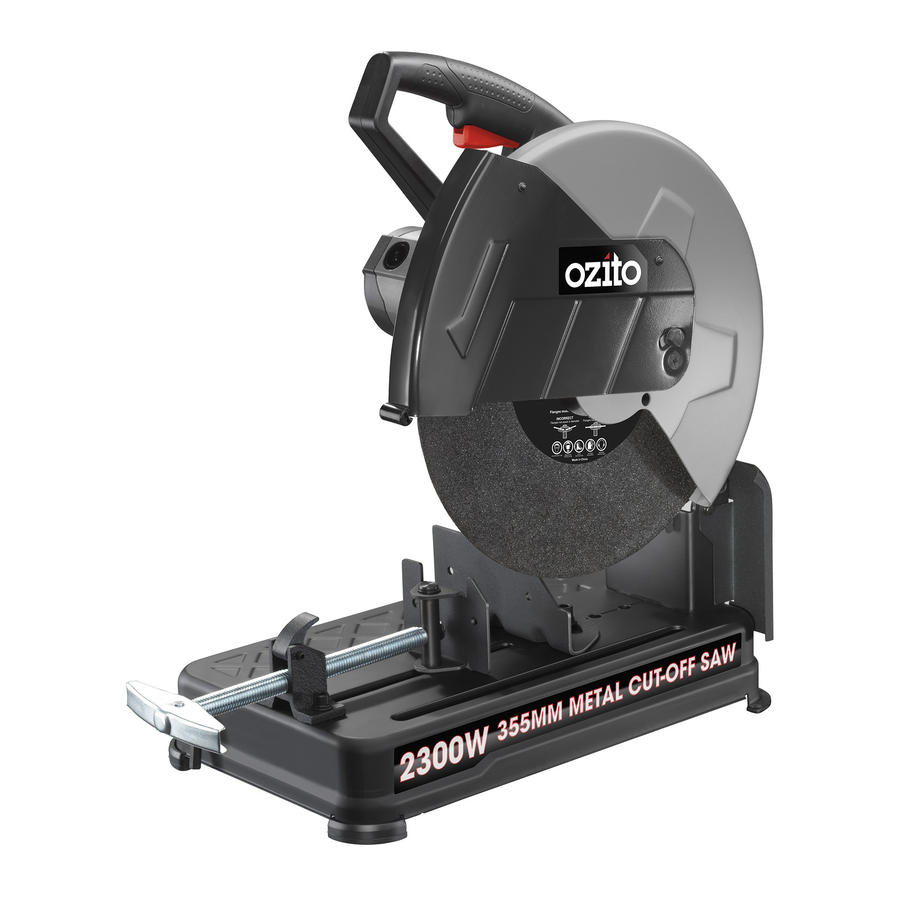

Metal cut-off saw 2300w
Hide thumbs Also See for MCS-2355:

Advertisement

METAL
CUT-OFF SAW
2300W
INSTRUCTION MANUAL
SPECIFICATIONS
Motor:
2300W
Input:
230 – 240V~50Hz
No Load Speed:
4,400/min
Cutting Disc
Max. Diameter:
356 x 3mm (14" x 1/8'')
Arbour Size:
25.4mm
Cutting Angle Capacity:
0 – 45º Left, 0 – 30º Right
Max. Cutting Capacities: Round steel 130mm
Square steel 120mm
Rectangle steel 120x130mm
Angle steel 140x140mm
Weight:
16.8kg
ozito.com.au
IN ORDER TO MAKE A CLAIM UNDER THIS
WARRANTY YOU MUST RETURN THE PRODUCT
TO YOUR NEAREST BUNNINGS WAREHOUSE WITH
YOUR BUNNINGS REGISTER RECEIPT. PRIOR TO
RETURNING YOUR PRODUCT FOR WARRANTY
PLEASE TELEPHONE OUR CUSTOMER SERVICE
HELPLINE:
Australia 1800 069 486
New Zealand 0508 069 486
TO ENSURE A SPEEDY RESPONSE PLEASE
HAVE THE MODEL NUMBER AND DATE OF
PURCHASE AVAILABLE. A CUSTOMER SERVICE
REPRESENTATIVE WILL TAKE YOUR CALL
AND ANSWER ANY QUESTIONS YOU MAY
HAVE RELATING TO THE WARRANTY POLICY
OR PROCEDURE.
OZITO
Australia/New Zealand (Head Office) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175.
WARRANTY
The benefits provided under this warranty are in addition
to other rights and remedies which are available to you at law.
Our goods come with guarantees that cannot be excluded
at law. You are entitled to a replacement or refund for a major
failure and for compensation for any other reasonably foreseeable
loss or damage. You are also entitled to have the goods repaired
or replaced if the goods fail to be of acceptable quality and the
failure does not amount to a major failure.
Generally you will be responsible for all costs associated with
a claim under this warranty, however, where you have suffered
any additional direct loss as a result of a defective product you
may be able to claim such expenses by contacting our customer
service helpline above.
3 YEAR REPLACEMENT WARRANTY
Your product is guaranteed for a period of 36 months from
the original date of purchase. If a product is defective it will
be replaced in accordance with the terms of this warranty.
Warranty excludes consumable parts, for example: carbon brushes,
spanners, cutting disc, accessories.
WARNING
The following actions will result in the warranty being void.
• If the tool has been operated on a supply voltage other
than that specified on the tool.
• If the tool shows signs of damage or defects caused
by or resulting from abuse, accidents or alterations.
• Failure to perform maintenance as set out within the
instruction manual.
• If the tool is disassembled or tampered with in any way.
• Professional, industrial or high frequency use.
WHAT'S IN THE BOX
Metal Cut-off Saw
Cutting Disc (fitted)
Hex Key
MCS-2355
1216

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MCS-2355 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Ozito MCS-2355

  • Page 1 Rectangle steel 120x130mm Angle steel 140x140mm Weight: 16.8kg ozito.com.au MCS-2355 WARRANTY IN ORDER TO MAKE A CLAIM UNDER THIS The benefits provided under this warranty are in addition WARRANTY YOU MUST RETURN THE PRODUCT to other rights and remedies which are available to you at law.
  • Page 2: Know Your Product

    KNOW YOUR PRODUCT SETUP & PREPARATION METAL CUT-OFF SAW 1. ADJUSTMENTS 1. Vice handle 9. Main handle 2. Lower guard 10. Spindle lock button WARNING!: ALWAYS ENSURE ThAT ThE METAL 3. Cutting disc 11. Lock down pin CUTTING SAW IS SWITChEd OFF ANd UNPLUGGEd 4.
  • Page 3 Adjusting the cutting angle depth stop Note: 1. To change the cutting angle Ensure that the depth stop is adjusted to the correct height loosen the two bolts securing before commencing operation. the fence using the hex key The adjustable depth stop is threaded into the base of the machine at supplied.
  • Page 4: Operation

    OPERATION 2. STARTING AND STOPPING 3. OPERATING Cutting WARNING!: ThE POWER SUPPLY FOR ThIS 1. Make all adjustments including setting PROdUCT ShOULd bE PROTECTEd bY A RESIdUAL the vice, fence position and fence angle. CURRENT dEvICE RATEd AS 30mA OR LESS. Turning ON and OFF 2.
  • Page 5: Maintenance

    The longer the length of cut, the more chance of the cutting disc glazing and motor overload. Note: To remove the cutting disc bolt, rotate anti-clockwise. Note: As the disc wears the cutting capacity will decrease and the depth stop may need to be adjusted. MCS-2355...
  • Page 6: General Maintenance

    Note: Ozito Industries will not be responsible for any damage or injuries caused by the repair of the cut-off saw by an unauthorised person or by mishandling of the cut-off saw.
  • Page 7: Description Of Symbols

    Note the rotating direction of the cutting disc! For further information, or any parts not listed here, visit www.ozito.com.au or contact Ozito Customer Service: Australia 1800 069 486 New Zealand 0508 069 486 E-mail: enquiries@ozito.com.au...
  • Page 8: Electrical Safety

    Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and New Zealand. This tool is double insulated therefore no earth wire is required.
