DOUBLE BEVEL
SLIDE COMPOUND
MITRE SAW
305mm (12")
INSTRUCTION MANUAL
SPECIFICATIONS
Motor:
2000W
(S6 25%)
Input:
230-240V ~ 50Hz
No Load Speed:
4,200/min
Blade:
Ø305mm x 30 x 60T
Mitre Angle:
0-49° left & right
Bevel Angle:
0-45° left & right
Max. Cutting Capacity:
Mitre 0° x Bevel 90°:
90x340mm
Mitre 45°x Bevel 90°:
90x240mm
Mitre 0°x Bevel 45°:
45x340mm
Mitre 45°x Bevel 45°:
45x240mm
ozito.com.au
WHAT'S IN THE BOX

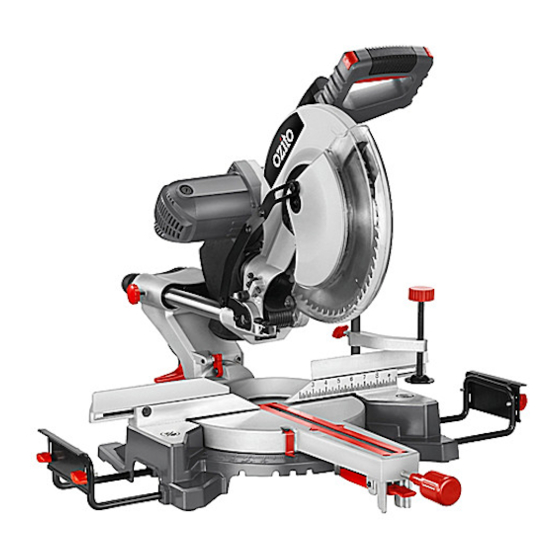

Compound Mitre Saw
Dust Bag
Stabilising Bar
Material Clamp
Spanner, Carbon
Brush Set
SCMS-1812
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ozito SCMS-1812
Summary of Contents for Ozito SCMS-1812
- Page 1 0-49° left & right Bevel Angle: 0-45° left & right Material Clamp Max. Cutting Capacity: Mitre 0° x Bevel 90°: 90x340mm Mitre 45°x Bevel 90°: 90x240mm Mitre 0°x Bevel 45°: 45x340mm Mitre 45°x Bevel 45°: 45x240mm ozito.com.au Spanner, Carbon Brush Set SCMS-1812...
-
Page 2: Know Your Product
KNOW YOUR PRODUCT SETUP & PREPARATION MITRE SAW 1. ASSEMBLY 1 Brush Cap 6 Mitre Table Lock Unpacking 2 Material Support Bar 7 Bevel Angle Pointer 3 Fence 8 Lock Down Pin 1. Remove foam 4 Mitre Table 9 Material Clamp packaging materials and using the carry handle, 5 Mitre Angle Pointer... -
Page 3: Set-Up And Adjustments
This provides the flexibility to transport the Mitre Saw to other work areas Available for purchase is an Ozito Mitre Saw Stand, model MSS-003 to fit this unit, available at your local Bunnings Warehouse. 3. Tighten bevel lock knob at selected angle... -
Page 4: Operation
OPERATION 3. TYPES OF CUTS Spindle Lock CAUTION!: DO NOT USE THE MITRE SAW TO CUT METAL OR MASONRY. The spindle lock prevents the blade in the saw from rotating. The tool is recommended for use with a residual current device Depress and hold the spindle with a rated residual current of 30mA or less. -
Page 5: Turning On And Off
Depending on the cut, the rear fence. material clamp will need to be mounted on the appropriate side. When performing bevel cuts, the work clamp must be on the opposite side of the bevel (otherwise it will interfere with the cutting action). SCMS-1812... -
Page 6: Maintenance
THE FLATS ON THE SPINDLE. IT WILL PREVENT THE BLADE Note: Ozito Industries will not be responsible for any damage or injuries caused SCREW FROM PROPERLY SECURING THE BLADE ONTO THE by the repair of the mitre saw by an unauthorised person or by mishandling of SPINDLE. -
Page 7: Description Of Symbols
SPSCMS1812-104 TROUBLESHOOTING Spare parts can be ordered from the Special Orders Desk at your local Bunnings Warehouse. For further information, or any parts not listed here, visit www.ozito.com.au or contact Ozito Customer Service: PROBLEM CAUSE REMEDY Mite Saw will not No power at power point. - Page 8 Model No. SCMS-1812 10 55 95 96 91 92 74 90 38 174 52 10 The following is a list of spare parts carried by Ozito. Please contact Customer Service for any parts not listed. Item Item Description Part No.
-
Page 9: Electrical Safety
Replace the extension lead if damaged or defective. Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and New Zealand. When using an extension lead on a reel, always unwind the lead completely. Use of an extension lead not suitable for the power input of the tool or which is damaged or defective may result in a risk of fire and electric shock. -
Page 10: Warranty
• Failure to perform maintenance as set out within the instruction manual. • If the tool is disassembled or tampered with in any way. • Professional, industrial or high frequency use. OZITO Australia/New Zealand (Head Office) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175. 0713...
