Summary of Contents for Supreme Heating Nova

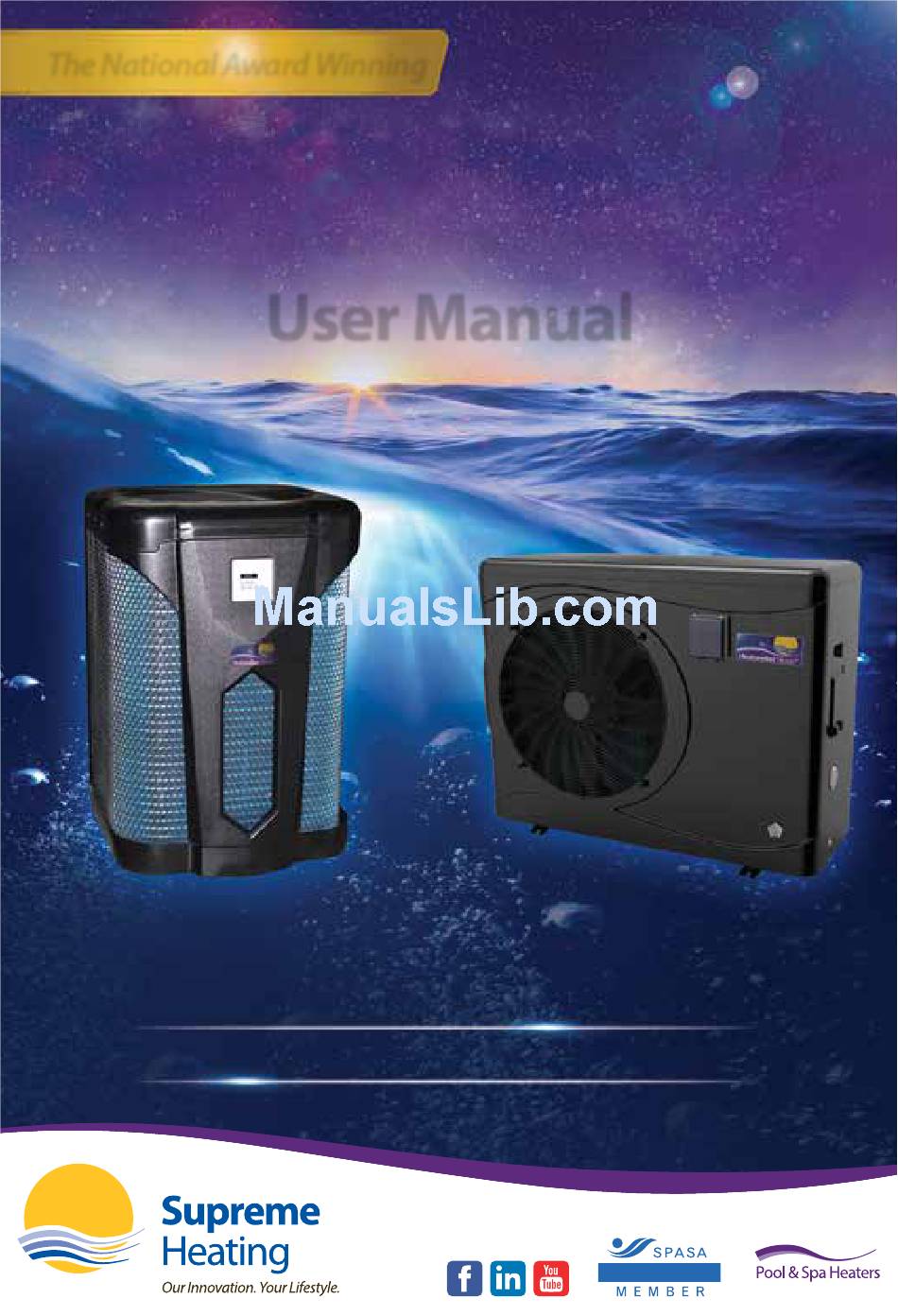

- Page 1 The National Award Winning Heatseeker Nova Series Inverter Heat Pumps User Manual Nova Nova Awarded gold for sustainability With even greater performance The future of heat pump technology has arrived N A T I O N A L Heatseeker Nova Series...
- Page 2 Head Office Bundoora VIC 3083 P: (03) 9460 4200 info@supremeheating.com.au NSW Office Smeaton Grange NSW 2567 P: (02) 4648 4766 solar.nsw@supremeheating.com.au salesnsw@supremeheating.com.au QLD Office Yatala QLD 4207 P: (07) 3807 6308 solarqld@supremeheating.com.au SA Office Wingfield SA 5013 M: 0437 947 375 solarsa@supremeheating.com.au WA Office South Fremantle...
-
Page 3: Table Of Contents
User Manual Heatseeker Nova Series Inverter Heat Pump Published October 2017 General Information Accessories Introduction to Heatseeker Nova Series Accessories List Consumer and Safety Information Installation of Accessories Technical Specifications Operation Heatseeker Nova Inverter Heat Pump Controller Overview Dimensions Power (On / Off) -
Page 4: General Information
This, coupled with the synchronisation of the fan and compressor speeds, optimises air flow to and from the heat pump. The enhanced technology of the Nova + provides up to 50% higher efficiency with a COP of up to 13.6 compared to an on/off type heat pump. -
Page 5: Consumer And Safety Information
DO NOT POUR WATER ON THE HEAT PUMP OR APPLY PAINT OR INSECTICIDAL MATERIAL TO THE UNIT WINTER COVER PLACE THE WINTER COVER ON THE HEAT PUMP WHILE THE UNIT IS UNUSED DURING WINTER Heatseeker Nova Series Inverter Heat Pumps... -
Page 6: Technical Specifications
Technical Specifications Heatseeker Nova Inverter Heat Pump SPECIFICATIONS MODEL 13 kW 17 kW 26 kW 35 kW 35 kW - 3 PHASE Discharge SIDE Fan Quantity Performance at Air 27°C, Water 27°C Heat Capacity (Min - Max) kW 6.8 - 13.0 7.9 - 17.1... -
Page 7: Dimensions
Dimensions Heatseeker Nova Inverter Heat Pump SIDE DISCHARGE DIMENSIONS MODEL CODE A Length (mm) B Depth (mm) C Height (mm) 35kW SHEATPUMP35CSI 1076 1290 TOP DISCHARGE DIMENSIONS MODEL CODE A Length (mm) B Depth (mm) C Height (mm) 13kW SHEATPUMPDCVI13... -
Page 8: Technical Specifications
Technical Specifications Heatseeker Nova + Inverter Heat Pump SPECIFICATIONS MODEL C60T C80T SIDE SIDE Discharge Performance at Air 27°C, Water 26°C Heat Capacity 2.3 - 9.2 2.9 - 12.5 3.8 - 16.0 4.7 - 19.0 5.9 - 24.0 6.8 - 28.5 5.9 - 24.0... -
Page 9: Dimensions
Dimensions Heatseeker Nova + Inverter Heat Pump TOP DISCHARGE DIMENSIONS MODEL CODE A Length (mm) B Depth (mm) C Height (mm) SNOVAPLUSC20 1025 SNOVAPLUSC30 1068 SNOVAPLUSC40 1068 SNOVAPLUSC50 1145 Heatseeker Nova Series Inverter Heat Pumps... - Page 10 Dimensions Heatseeker Nova + Inverter Heat Pump TOP DISCHARGE DIMENSIONS MODEL CODE A Length (mm) B Depth (mm) C Height (mm) SNOVAPLUSC60 1076 1290 SNOVAPLUSC80 1076 1290 C60T (three phase) SNOVAPLUSC60T 1076 1290 C80T (three phase) SNOVAPLUSC80T 1076 1290 Heatseeker Nova Series...
-
Page 11: Installation And Connection
Such locations impair the continuous supply of fresh air, resulting in reduced efficiency and possible prevention of sufficient heat output, which will void the compressor warranty. See drawing on the following page for minimum clearance dimensions. Heatseeker Nova Series Inverter Heat Pumps... -
Page 12: Distance From Your Swimming Pool
3% to 5%. Side Discharge 800mm 500mm From Sides From Top 400mm From Back 2500mm From Front Discharge Top Discharge 2000mm From Top Discharge 1000mm From Back 800mm From Sides 800mm From Front Heatseeker Nova Series Inverter Heat Pumps... -
Page 13: Check Valve Installation
A check valve must be installed between the sanitation/automatic dosing system and the heat pump to prevent chemicals returning to the heat pump. Failure to observe this instruction will void the warranty. Typical Arrangement Independent System In-line System Heatseeker Nova Series Inverter Heat Pumps... -
Page 14: Adjusting The Bypass
Adjusting the Bypass Heatseeker Nova Series Inverter Heat Pumps... -
Page 15: Electrical Connection
‘WATER PUMP’ is located next to the first one. The filter pump (max. 5 Amps/240V) can be connected to the second terminal block. This allows the filter pump operation to be controlled by the heat pump. Heatseeker Nova Series Inverter Heat Pumps... -
Page 16: Cable Wiring
A disconnect means (circuit breaker, fused or un-fused switch) should be located within sight of and readily accessible from the unit. This prevents remotely-energizing unattended equipment and permits turning off power at the unit while the unit is being serviced. Heatseeker Nova Series Inverter Heat Pumps... -
Page 17: Initial Operation
Dependant on the initial temperature of the swimming pool water and the air temperature, it may take several days for the water to heat to the desired temperature. A Supreme Heating Heatseeker Diamond pool cover & roller system can dramatically reduce the required heat up time and is strongly recommended. -
Page 18: Condensation
°C -5~5 5~15 15~25 25~35 Water temp °C Pressure gauge 0.68~0.93 0.93~1.25 1.25~1.64 1.64~2.1 Unit Condition Running Ambient °C Water temp °C 10~15 15~20 20~25 25~30 30~35 Pressure gauge 1.3~1.8 1.5~1.9 1.6~2.3 1.9~2.8 2.1~3.5 Heatseeker Nova Series Inverter Heat Pumps... -
Page 19: Accessories
1. Place one anti-vibration base under each 1. Install the drainage point under the corner of the heat pump. bottom of the heat pump. 2. Connect with the drainage hose to drain out the water. Heatseeker Nova Series Inverter Heat Pumps... -
Page 20: Operation
STEP 1 Press for 5 seconds. STEP 2 Press to adjust the “Heat MODE” or “Cool MODE”. LOCK / UNLOCK THE DISPLAY OVERVIEW STEP 1 Press and hold for 5 seconds to lock/unlock the display Heatseeker Nova Series Inverter Heat Pumps... -
Page 21: Water Temperature Settings
“Hour”. STEP 6 The “Minute” will now flash, then press to set the minute. STEP 7 Press to save the current time setting. STEP 8 Press for quick exit and saving. Heatseeker Nova Series Inverter Heat Pumps... -
Page 22: Setting The Automatic Start Time
STEP 7 If the time is successfully set, the light will display. STEP 8 If you wish to cancel the automatic stop setting, set the time as 00.00 Heatseeker Nova Series Inverter Heat Pumps... -
Page 23: Checking The Parameters
Steps of electronic expansion valve 0-99 Compressor operating frequency 0-99Hz Real testing value Compressor current 0-30A Real testing value Current fan speed 0-1200(RPM) Real testing value Error code for last time All error code Heatseeker Nova Series Inverter Heat Pumps... - Page 24 1 Always running, 0 Depends on the Water pump running of compressor Current time HH:MM 00:00 0-23:0-59 Timer on HH:MM 00:00 0-23:0-59 Timer off HH:MM 00:00 0-23:0-59 Inlet water temp. correction -9~99 Default setting: 0 Heatseeker Nova Series Inverter Heat Pumps...
-
Page 25: Heat Pump Modes
When in ‘Medium output’ , the light beside Silent will turn on and the light beside Smart will flash. Notes 1. When the Heatseeker Nova heat pump stops running for 30 seconds, the water pump will shut off automatically (in the case of an independent system). -
Page 26: Troubleshooting - Heatseeker Nova
Troubleshooting - Heatseeker Nova Error Code Displayed on LED Controller MALFUNCTIONS ERROR REASONS SOLUTIONS Inlet water temperature sensor The sensor has an open or short PP01 Check or change the sensor failure circuit Outlet water temperature The sensor has an open or short... - Page 27 1. Electric supply pressure is too 1. Check the power supply Over current protection EE13 low. 2. Check whether the water 2. The Heat Pump is overloaded. temperature is too high. Defrosting The heating light is on Heatseeker Nova Series Inverter Heat Pumps...
-
Page 28: Troubleshooting - Heatseeker Nova
Troubleshooting - Heatseeker Nova + Error Code Displayed on LED Controller MALFUNCTIONS ERROR REASONS SOLUTIONS Inlet water temperature sensor The sensor has an open or short PP01 Check or change the sensor failure circuit Outlet water temperature sensor The sensor has an open or short... - Page 29 1. Check or change the signal wire 1. Wire connection faulty Controller failure EE06 2. Restart the power supply 2. Controller failure 3. Change the controller The compressor current is too large Compressor current protection EE07 instantaneously Heatseeker Nova Series Inverter Heat Pumps...
- Page 30 Check the PC board or replace with Compressor start failure EE23 new one Driving board ambient temperature EE24 bulb failure 1. Wiring wrong Compressor phase failure EE25 2. Connnection of 1 phase Monitoring the controller or 2 phases Heatseeker Nova Series Inverter Heat Pumps...
-
Page 31: Other Malfunctions And Solutions - No Led Display
3. LED controller should display “Defrosting” 1. Check the location of heat pump unit Too Much Ice On and eliminate any obstacles to increase Ice on evaporator Evaporator ventilation 2. Replace or repair the heat pump unit Heatseeker Nova Series Inverter Heat Pumps... -
Page 32: Maintenance
6. The air drawn into the heat pump is cooled by the operation of the heat pump for heating the pool water, which may cause condensation on the fins of the evaporator. The amount of condensation may be as much as several liters per hour at high relative humidity. Heatseeker Nova Series Inverter Heat Pumps... -
Page 33: Warranty Agreement
(2) year limited warranty (temperature sensors not covered) from Dontek Electronics Pty Ltd, 19 Melrich Road, Bayswater, Victoria, 3153 (Phone: (03) 9762 8800, Email: service@dontekelectronics.com.au); and is the only warranty given in respect of that part of the Product. Heatseeker Nova Series Inverter Heat Pumps... - Page 34 Product if such examination by Supreme Solar Pty Ltd reveals that the Product: (a) is not defective; or (b) is defective as a result of any of the events specified in paragraph 7. Heatseeker Nova Series Inverter Heat Pumps...
-
Page 35: Notes
Notes... - Page 36 1300 787 978 supremeheating.com.au...
