jbc TRA245 Instruction Manual

Automatic general/heavy duty soldering tool for robot
Hide thumbs Also See for TRA245:

Advertisement

Quick Links

Download this manual

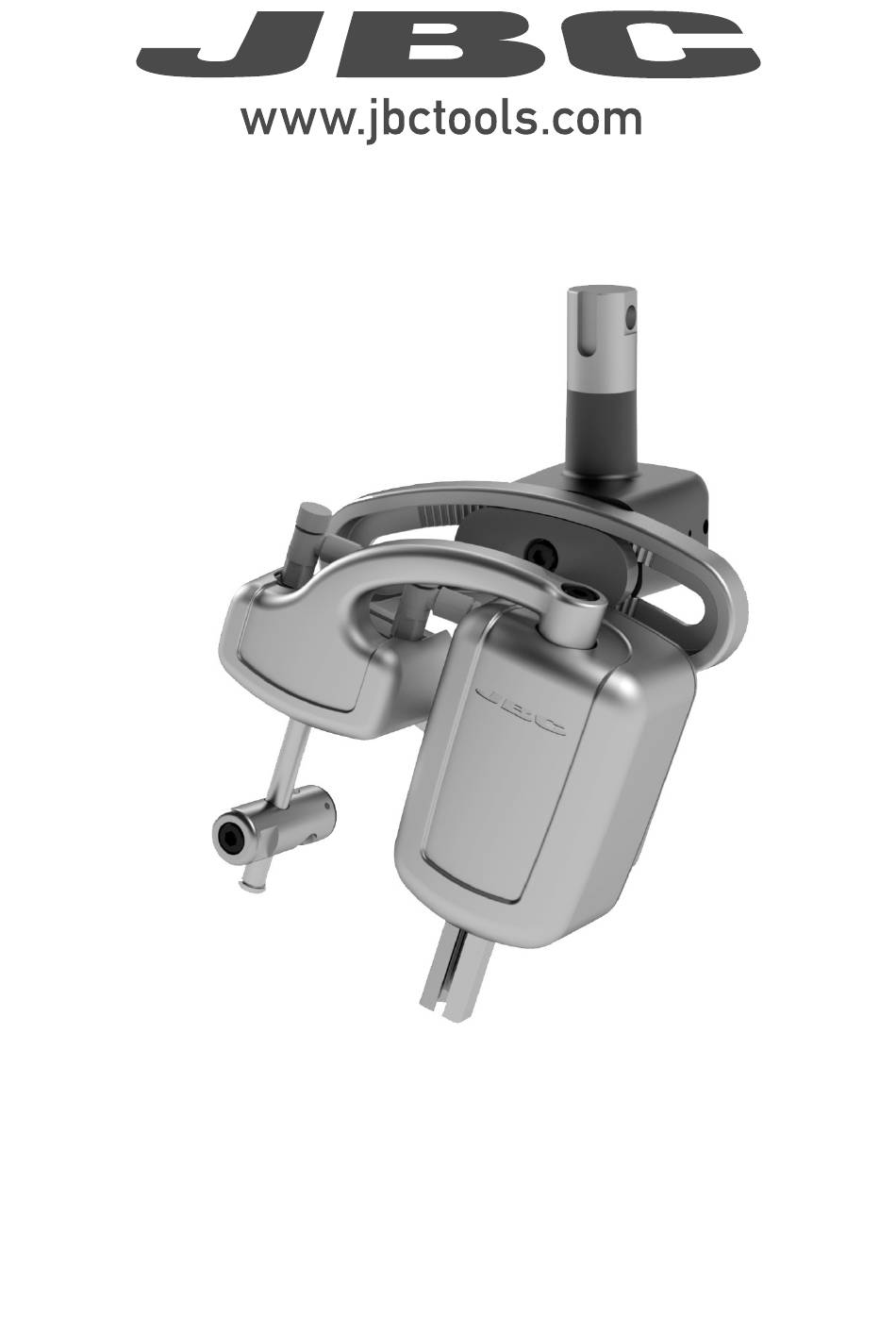

INSTRUCTION MANUAL
130 mm
TRA245/TRA470
Automatic General/Heavy Duty
Soldering Tool for Robot

Advertisement

loading
Need help?

Need help?

Do you have a question about the TRA245 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for jbc TRA245

Summary of Contents for jbc TRA245

  • Page 1 INSTRUCTION MANUAL 130 mm TRA245/TRA470 Automatic General/Heavy Duty Soldering Tool for Robot...

  • Page 2: Packing List

    This manual corresponds to the following references: - TRA245-B works with R245 cartridges - TRA470-B works with R470 cartridges Packing List Either ref. TRA245-B or ref. TRA470-B is included. Automatic Soldering Tool for Robot ....................1 unit Manual ................................. 1 unit Ref. 0027874...
  • Page 3 para manuales - negro plano 200 mm Assembly: GSFR Tube to SFR* and TRA* 130 mm 130 mm 1. Assemble SFR and the appropriate GSFR Guide Tube to TRA as described in the SFR instructions manual. 100 mm 2. Adjust the TRA guide position in angle, height and length, then tighten the bolt to lock your settings. 3.
  • Page 4 D Air tube connection: Open grippers. Operating pressure 1.5 to 7 bar 20 to 100 psi Note: JBC recommends bi-stable valves for the grippers to prevent the cartridge from falling out in case of an emergency stop or power cut.
  • Page 5 130 mm 130 mm In order to align CSR245 and CSR470 to the soldering tool and set the cartridge pick-up points use JBC´s centering jigs. 100 mm Install, as shown, the lower centering jig into the Adjust the soldering tool position until the gripper of CSR and the upper centering jig into centering jigs are aligned.
  • Page 6 Dimensions TRA245...
  • Page 7 para manuales - negro plano 200 mm Dimensions 130 mm 130 mm TRA470 100 mm 80 mm 60 mm 50 mm 40 mm...
  • Page 9 para manuales - negro plano 200 mm 130 mm 130 mm 100 mm 80 mm 60 mm 50 mm 40 mm...
  • Page 10 HA Automatic Soldering Set for Robot HM Soldering Set for Robot Compatibility Automatic Cartridge Range Control Unit Cartridge Exchanger Soldering R245 R470 UCR245 UCR470 CS2R245 CS2R470 Tool TRA245 TRA470 SFR, GSFR and CLMR are compatible with both R245 and R470 cartridges.

  • Page 11: Maintenance

    Rusty and dirty surfaces reduce heat transfer to the solder joint. 60 mm - Replace any defective or damaged parts. Use original JBC spare parts only. - Repairs should be performed only by a JBC authorized technical service. 50 mm - Under normal operating conditions, the air gripper lifespan is 10 million cycles.
  • Page 12 Remove the M4 screws (4x) and the connector at the rear of the TRA’s main body. Then remove the pneumatic supply tubes (2x) from the fittings. Finally, remove the main body from the adjustable support. TRA Main Body Adjustable Support EXTRACCIÓN 26842 26843...
  • Page 13 para manuales - negro plano 200 mm Remove the M3 screws (6x) and the terminals. 130 mm 130 mm Terminals Terminals 100 mm 80 mm 60 mm 50 mm 40 mm To remove the arms, remove the M3 screws (4x).
  • Page 14 Remove springs and contacts manually and set them aside. Lower Contact Intermediate Contact Upper Contact ref. 0026848 ref. 0026847 ref. 0026846 Remove both fixing screws (2x) first and then remove the isolating plate. Set the isolating plate and the arms aside. Screws Isolating Plate...
  • Page 15 para manuales - negro plano 200 mm Reassembling 130 mm 130 mm Once the parts are clean and completely dry, follow the reverse order of the disassembly steps. Apply threadlocker on all screws. NEGRE 100 mm Once the contacts, their springs and the terminals are assembled together and the screws are tightened, check that the contacts work smoothly and that they do not get stuck.
  • Page 16 Safety It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion. - Do not use the soldering iron for any purpose other than soldering or rework. Incorrect use may a cause fire. - Do not leave the appliance unattended when it is on. - Be sure that the power supply is disconnected before changing any spare parts.
  • Page 17 para manuales - negro plano 200 mm Notes 130 mm 130 mm 100 mm 80 mm 60 mm 50 mm 40 mm...
  • Page 18 Notes...
  • Page 19 para manuales - negro plano 200 mm Notes 130 mm 130 mm 100 mm 80 mm 60 mm 50 mm 40 mm...

  • Page 20: Specifications

    Complies with CE standards. ESD safe. para manuales - negro plano Warranty JBC’s 2 year warranty covers this equipment against 130 mm all manufacturing defects, including the replacement of defective parts and labor. Warranty does not cover product wear or misuse.

This manual is also suitable for:

Tra470
