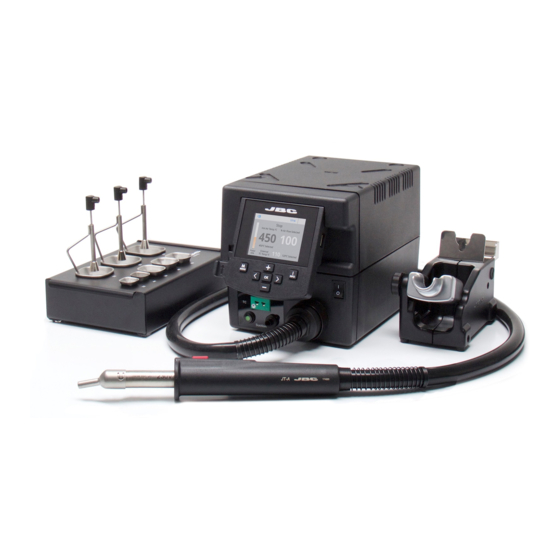

  • Page 1 INSTRUCTION MANUAL Precision Hot Air Station Ref. TESE-A...

  • Page 2: Packing List

    Manual ......1 unit E2052 T2250 Ø 4.7 - 0934070 (x1) Ref. 0019043 (Ø 85mm) www.jbctools.com Protectors* Suction Tube* Nozzles INSTRUCTION MANUAL Ref. P2220 Ref. 0932330 Ref. TN9080 (x1) P2230 TN9208 (x1) P2235 TN9209 (x1) P4000 P4010 Precision Hot Air Station Ref. TESE-A...
  • Page 3 w w w.jbctools.com Features USB-A connector Main Switch Heater Hose set Thermocouple type K Ref. TE-TB Activates de suction pump Heating element Suction Tube Ref. 0932330 For tripods and extractors Hot Air button (On / Off) Stand Ref. TE-SE Auxiliar connector Equipotential connector...

  • Page 4: Menu Options

    JTSE / TESE Work Screen The JTSE/TESE offers an intuitive user interface which provides quick access to station parameters. Default PIN: 0105 Status bar 17:14 Status indicator 4m 38s Instant power supplied to Hot Air Temp. Air Flow Selec. heater ºC Current Selected...

  • Page 5: Advanced Functionalities

    w w w.jbctools.com Advanced functionalities To work with profiles it is essential to use the RWB / RWS / RWT rework arms. The Rework Arms supports the Hot Air Heater maintaining the distance and position to the component. Profiles In this mode you can set up or edit as many as 25 profiles of temperature and air flow. Profile name 3m 18s Hot Air Temp...

  • Page 6: System Notifications

    Insert a USB flash drive into the USB-A connector to save your soldering process in csv format. Files Station update Download the JBC Update File from www.jbctools.com/software.html Insert the USB flash drive with the file down- loadedto the station. Update System notifications The following icons will be displayed on the screen’s status bar.

  • Page 7: Adjustable Stand

    w w w.jbctools.com Adjustable Stand Adjust the tool holder angle to suit your work position. Operation 1. Placing 2. Heating 3. Extracting Position the extractor with the Heat the component. The component lifts off appropriate suction cup and automatically when the press the suction button.
  • Page 8 Pick & Place (not supplied with TE) This tool helps you place and remove SMDs of any size easily thanks to the suction pump. Pick & Place Bent Needles Set Straight Needles Set Ref. T260-A Ref. 0861660 Ref. 0901546 Operation Choose the needle and the suction cup that best fits the component and start as follows: Press the button to start/stop the suction...
  • Page 9 w w w.jbctools.com Accessories Protectors Ref. AxB (mm) AxB (in) Ref. AxB (mm) AxB (in) 4,3 x 3 0.16 x 0.12 12 x 23 0.47 x 0.9 P3353 P1249 P3786 5,2 x 5,2 0.20 x 0.20 44 P4000 12,5 x 12,5 0.49 x 0.49 P3352 5,2 x 7,5...
  • Page 10 Using the Thermocouple type K Connect a TC type K (PH218) to the station and use it as a protection or regulation sensor. You can define its use mode by means of the “Ext TC mode” option in the “Tool” menu. You can choose from two work modes: Regulation: the station regulates the air Protection: the station cuts the air supply off...
  • Page 11 w w w.jbctools.com Quick Nozzle Changer Changing nozzles quickly and safely. Turn the tool off and handle with care. The heating element and the nozzle are still hot. Straight Bent Ref. Shape Ø Size Ø (mm) Size (in) TN9209 Straight Ø...

  • Page 12: Replacing The Heating Element

    Replacing the Heating Element Only perform this operation when the element is cold and the unit is disconnected from the mains. 1. Loosen the screw. 2. Pull the heating element away from the handle. 3. Connect the new heating element, ensuring it is pushed all the way in. 4.

  • Page 13: Maintenance

    If necessary use a tool to lever it off. and return it to the station. Fuse Fuse holder Fuse holder - Replace any defective or damaged pieces. Use original JBC spare parts only. - Repairs should only be performed by a JBC authorized technical service.
  • Page 14 Safety It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion. - Do not use the units for any purpose other than soldering or rework. Incorrect use may cause fire. - The power cord must be plugged into approved bases. Be sure that it is properly grounded before use.
  • Page 15 w w w.jbctools.com 有害物质含量表 产品中有害物质的名称及含量 有害物质 部件名称 六价铬 多溴联苯 多溴二苯醚 铅(Pb) 汞(Hg) 镉(Cd) (Cr(VI)) (PBB) (PBDE) 烙铁头 手柄 电源线 主机 电源插座 保险丝 主开关 电位连接 变压器 线路板 O 表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572 规定的限量要求以下。 X 表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572 规定的限量要求。...

  • Page 16: Specifications

    In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was purchased. Get 1 extra year JBC warranty by registering here: https://www.jbctools.com/productregistration/ within 30 days of purchase. This product should not be thrown in the garbage.
