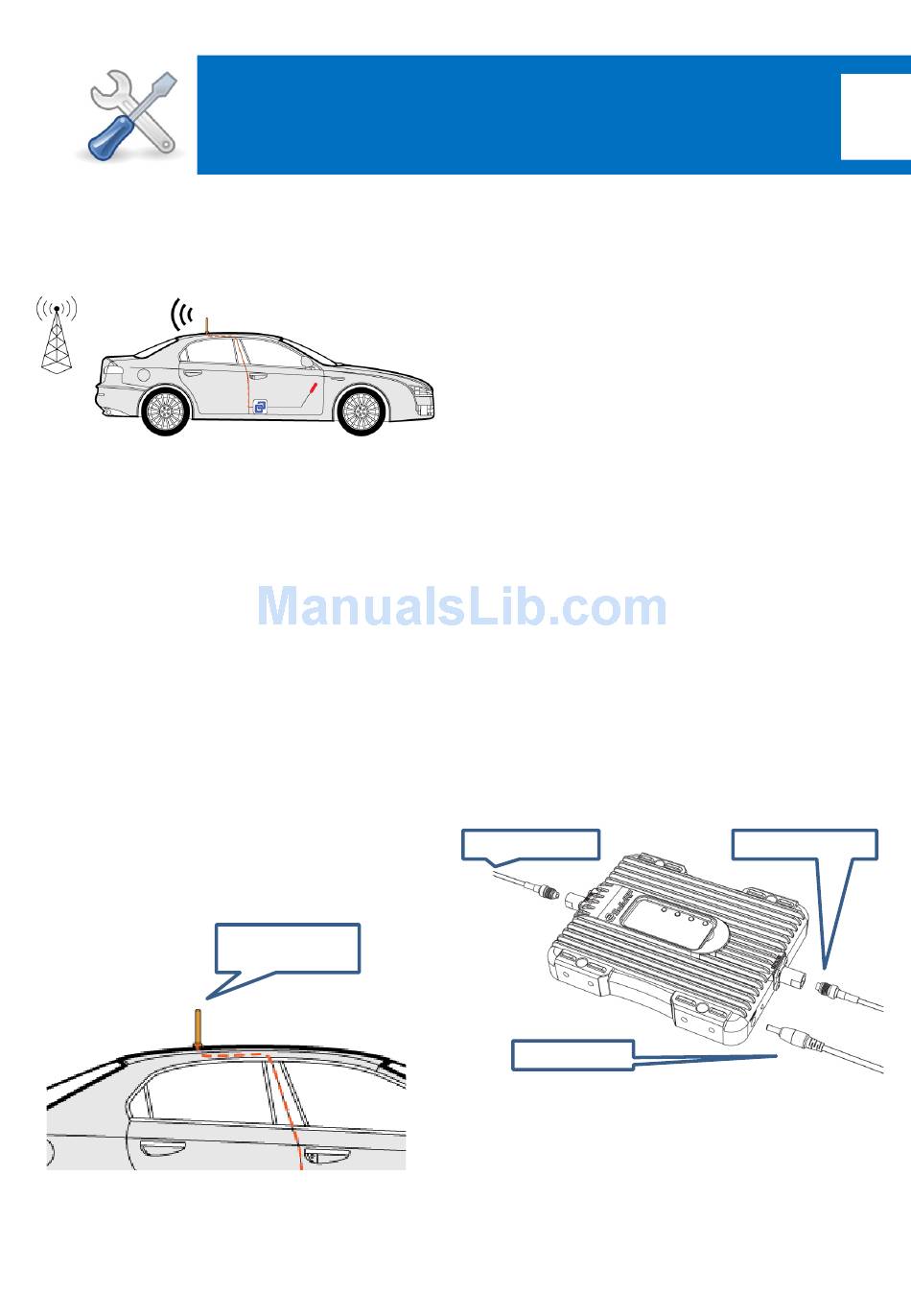

1.How it work
Step 1: The powerful outside antenna captures a voice and
data signal, and transfer it to the booster;
Step 2: The booster receives the signal, amplifies it and re-
broadcasts it by inside antenna.
Step 3: Your mobile devices get a better signal, never expe-
rience dropped calls or slow data speed.
2. Step by step installation
Step 1: mount the outside antenna
a. Choose right position
30cm away from any other metallic objects;
•
50cm away from any windows;
•
b. Mount the antenna: it must be mounted vertically on
top of the car;
Installation
Vertically mount
www.SolidRFCanada.com
c. Set the outside antenna cable into the car
Carefully pull down the door seal, run the cable into
•
the car under the seal;
Run the cable reach the location where you plan to
•
place the booster;
Push the seal back into place carefully.
•
Step 2: mount the inside antenna
a. Choose right position
20cm away from any other metallic objects;
•
50cm away from any windows;
•
The position on the right hand of the drive's seat is re-
•
commended;
b. Mount the inside antenna:
Peel off the plastic on the back of the antenna;
•
Under it is the 3M sticker, place the antenna onto the
•
position selected;
Step 3: arrange the booster
a. Choose position
Under the assistant's seat, or trunk of the car;
•
It is free from excessive heat, direct sunlight and mois-
•
ture
b. Connect the outside antenna's connector to the "outs-
ide" labeled port of the booster;
c. Connect the inside antenna's connector to the "inside"
labeled port of the booster;
Inside antenna
Adapter cord
Step 4: power on the booster
a. Plug the power adapter to the car 12V DC lighter;
b. Attach the cord of the adapter to the booster;
c. Switch on the adapter by press the button of the ada-
pter, a blue light will be seen show it is working;
1
Outside antenna
3
