Basic Switcher Set-Up

Connect the display device (Monitor, LED Wall, Projector, etc.)
to one of the output connectors DVI/HDMI 1, HDMI 2 or HDBaseT.
Connect Sources (Blue Ray Player, Set Top Box, PC, etc.)
Use input connectors from different groups for ultra-fast switching, groups are identified by
Press the Test button so the unit displays an image regardless of the state of the sources
Press the Menu/Select button to activate the menu system. Scroll through the menu system
with the jog wheel. Turn the wheel to the left to climb down the menu system, and to the
right to climb up the menu. The jog wheel has a push function. Pushing the jog wheel has
Scroll to the menu item Output with the jog wheel.
The menu will look like this with the Output menu item marked
by an arrow.
©
KRAMER ELECTRONICS LTD. Issue 1.10

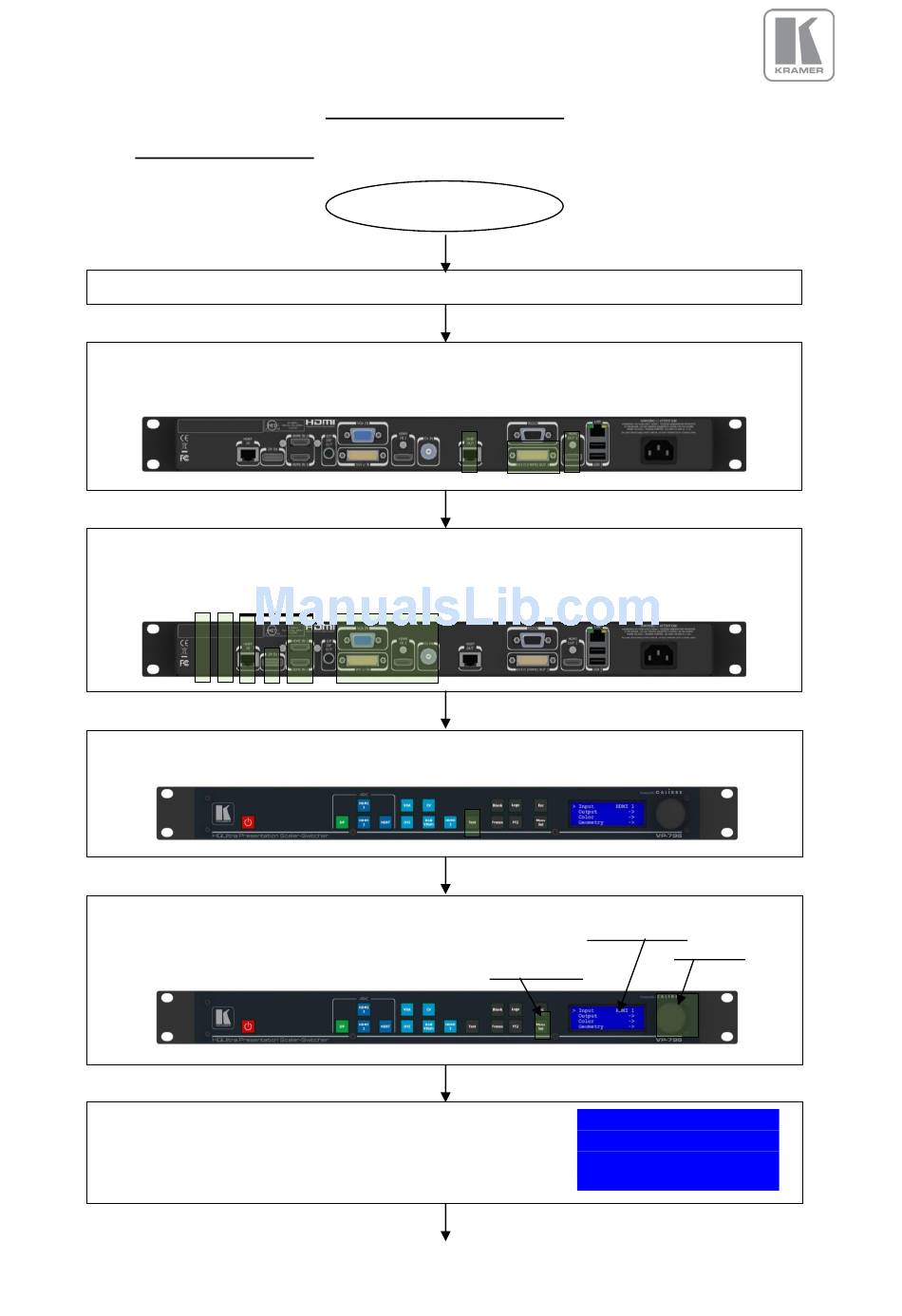

QUICK SET-UP FLOW CHART

Connect Power
input channel keys with identical color.
connected.
the same effect as pressing the Menu/Select button.
th
16 of December 2015
Start
Input
>Output
Color
Geometry
TESTPAT
>
>
>
