 The default setting for many PCs is DHCP addressing as shown in Figxx.
 Check the "Use the following IP address" radio button. This sets the PC for static addressing.
Then enter a class C address such as 192.168.1.20 under the "IP address" text box. Click in
the "Subnet mask" text box and the PC should automatically set the subnet mask
associated with the class C addressing. See Figure 16.
100- M0177X1
GMS Inc. doing business as Cobham Tactical Communications and Surveillance

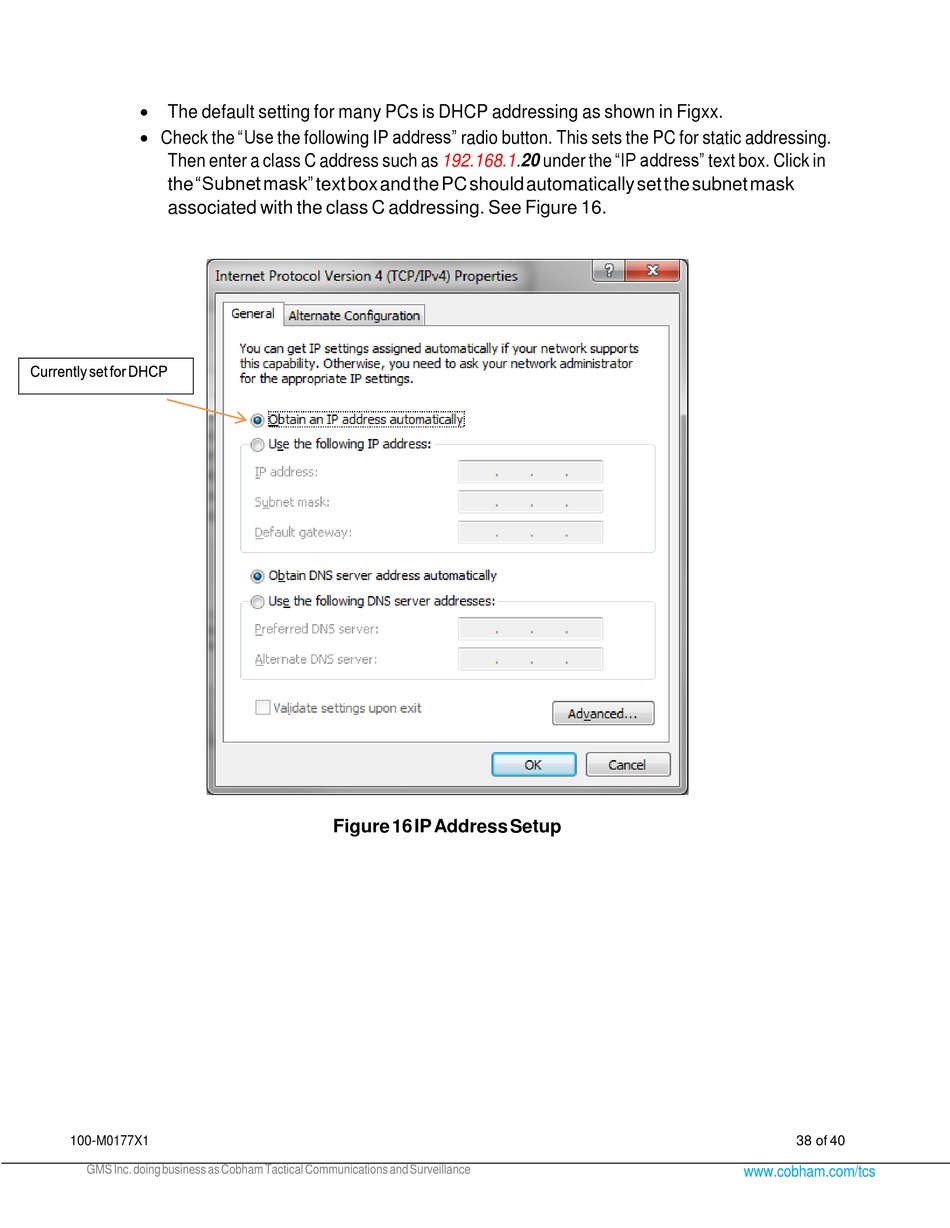

Figure 16 IP Address Setup
