 Install omni-directional antennas onto the M2ECHPT RF output port and downconverter(s) (d/c)
RF(radio frequency) input port.
 Attach the power cable (780-C0219) to the M2ECHPT.
 Attach the RF cable from the downconverter IF (intermediate frequency) output port to the RF
IN port of the receiver.
 Attach a video source to the M2ECHPT using the SDI input(s).
 Attach a BNC cable from the BNC video output port (HD/SD-SDI out, component out or
composite out) of the receiver/decoder to a video monitor.
 Apply power to all equipment. Also ensure power has been applied to the downconverter(s).
 After approximately 20 seconds the link should be established and video provided by the
source should be displayed on the monitor. If a link is not established check to ensure power to
all devices has been applied and the transmitter and receiver have been tuned to the same RF
frequency.
100-M0177X1
GMS Inc. doing business as Cobham Tactical Communications and Surveillance
Video Source

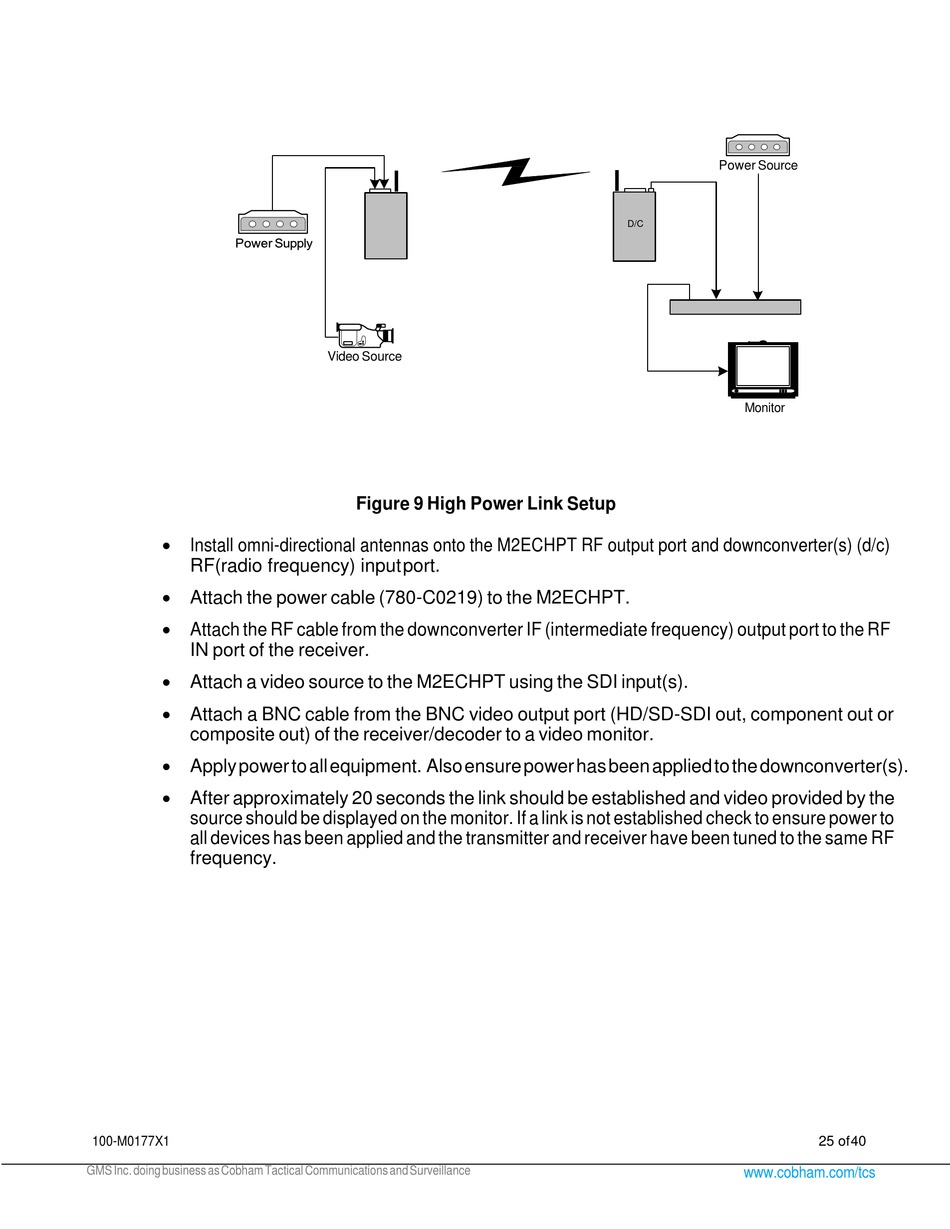

Figure 9 High Power Link Setup
Power Source
D/C
Monitor
