Figure 9 Configuration Groups Menu - COBHAM M2ECHPT Operation Manual

From here, to the left of the screen are the available menus, Main, Configuration Groups, Status,
System Setup, Upgrade and Help. The Configuration Groups/Setup window is where the preset groups
can be selected. To select a different preset group use the SELECT GROUP pull down box and select
from 20 preset groups. Then click on the LOAD button to the right of the screen. There are 7 tabs (see
Figure 8 below). Changes to the preset groups, including any changes to the RF, Video, Audio, TS
(transport stream), Encrypt, Aux Data and Streaming can be done by selecting one of the seven tabs,
make the change to the corresponding text box (or pull down box), click on the APPLY button and then
the SAVE button if the change is to be permanent to the current group.

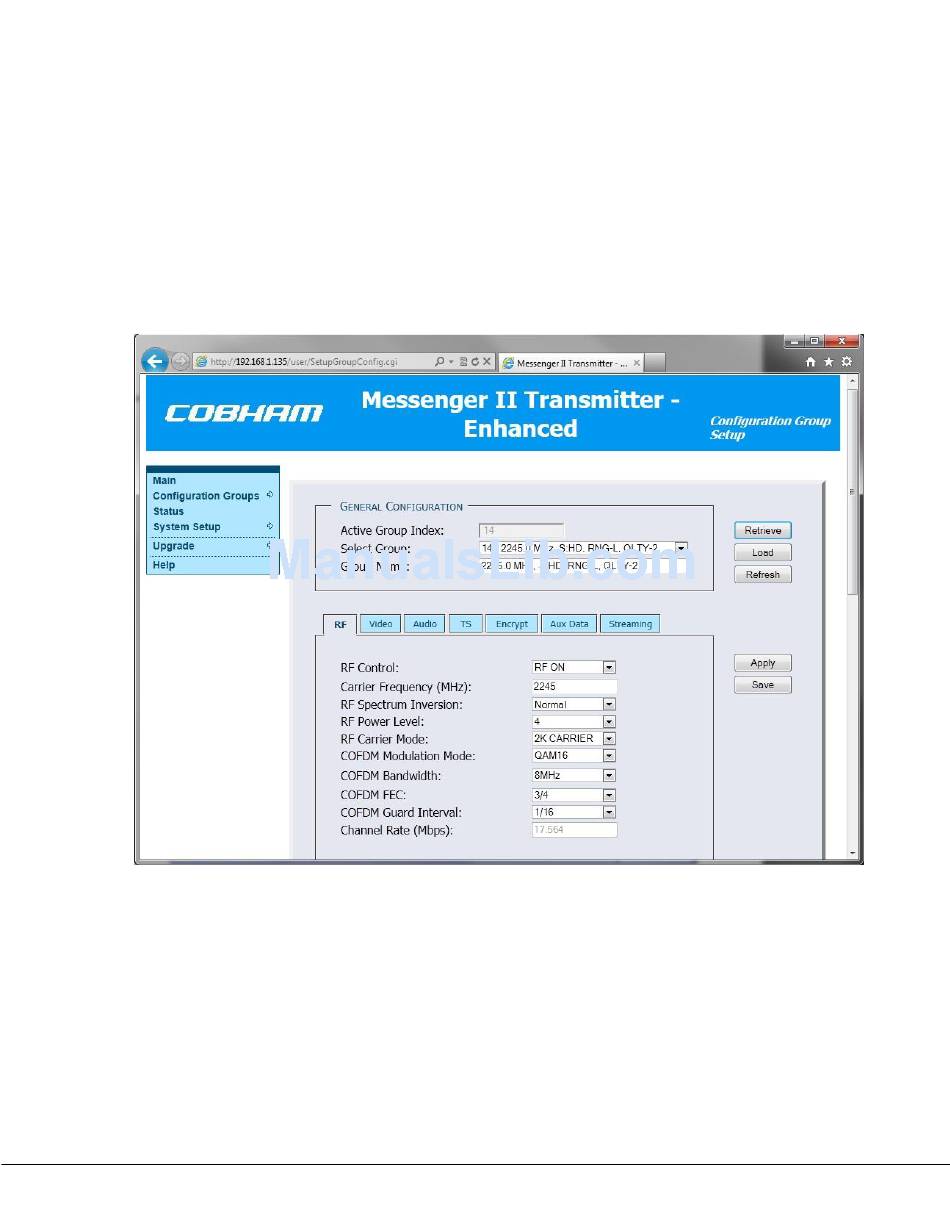

Figure 8 Configuration Groups Menu
