Appendix A - IP Static Addressing and Interfacing to a Personal Computer

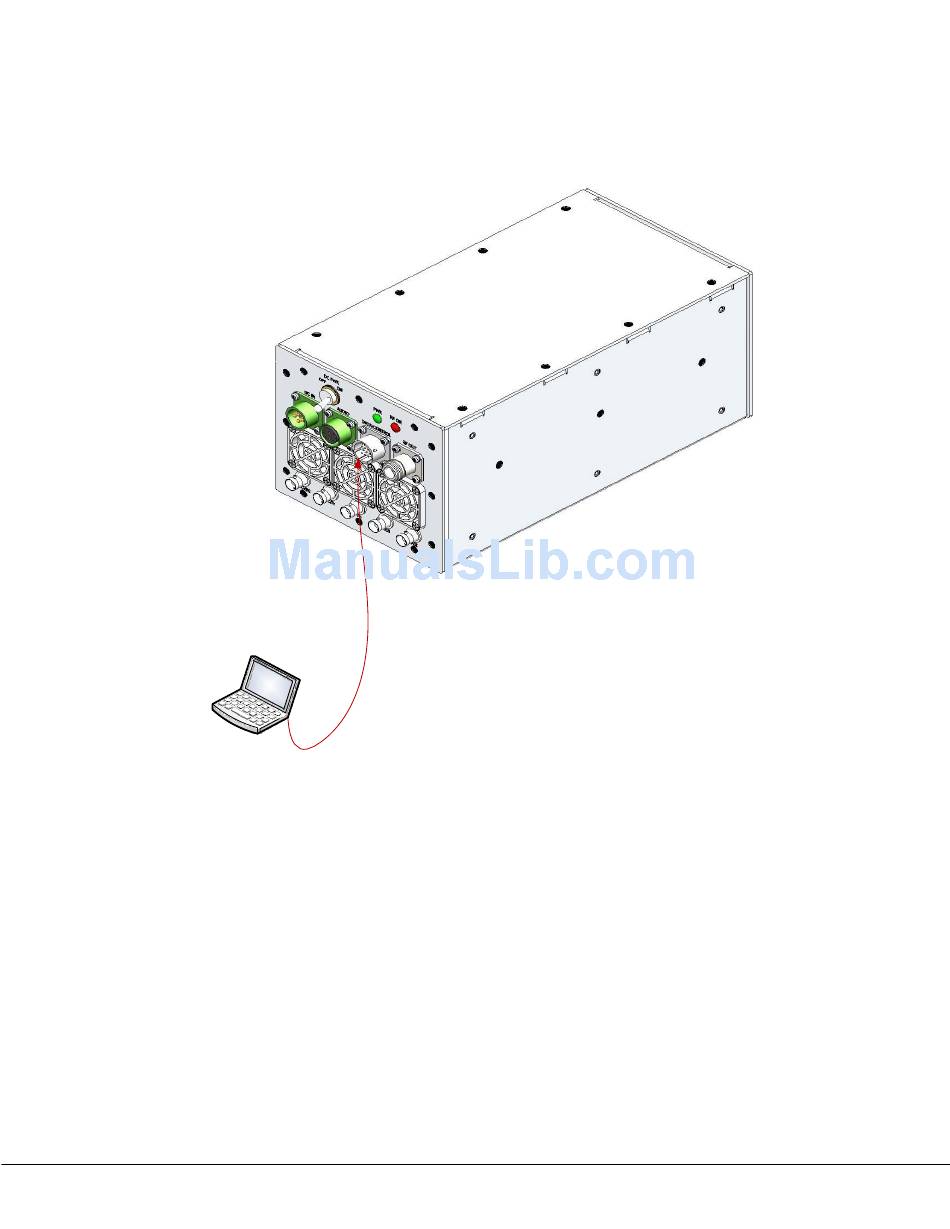

Figure 10 Interfacing PC to M2ECHPT
A.1. Static Addressing
The M2ECHPT transmitter leaves the factory with a static IP setting of 192.168.1.36. Interfacing to a
personal computer involves setting the PC to a static address with the same IP class (and network ID) as
the M2ECHPT which is a class C (beginning octet is in the range of 192-223). By setting the PC to a
static address with the same IP class and network ID it will recognize the M2ECHPT and it will be able
to talk to it. The following steps show how to set the PC to a static address.
The example below is from a Windows 7 operating system. An XP operating system is similar. The
object is to get to the properties of the Local Area Connection, select the properties of the "Internet
