4.2 Rear Panel

The rear panel is shown in Figure 4 below. The connector types and pin outs are discussed in the
following section.

4.3 M2ECHPT Connectors

Note: The only difference between the VEPA and Standard power amplifier is that the "RF ON" LED
indicator is not used with the VEPA power amplifier. All other connections are the same.

4.3.1 RF Output

The M2ECHPT uses a female "N" type bulkhead connector for its "RF OUTPUT" port.
Note: Transmitters should not be powered on without a load. Doing so could cause
damage to the output PA. A proper heat sink is also required.
100-M0177X1
GMS Inc. doing business as Cobham Tactical Communications and Surveillance

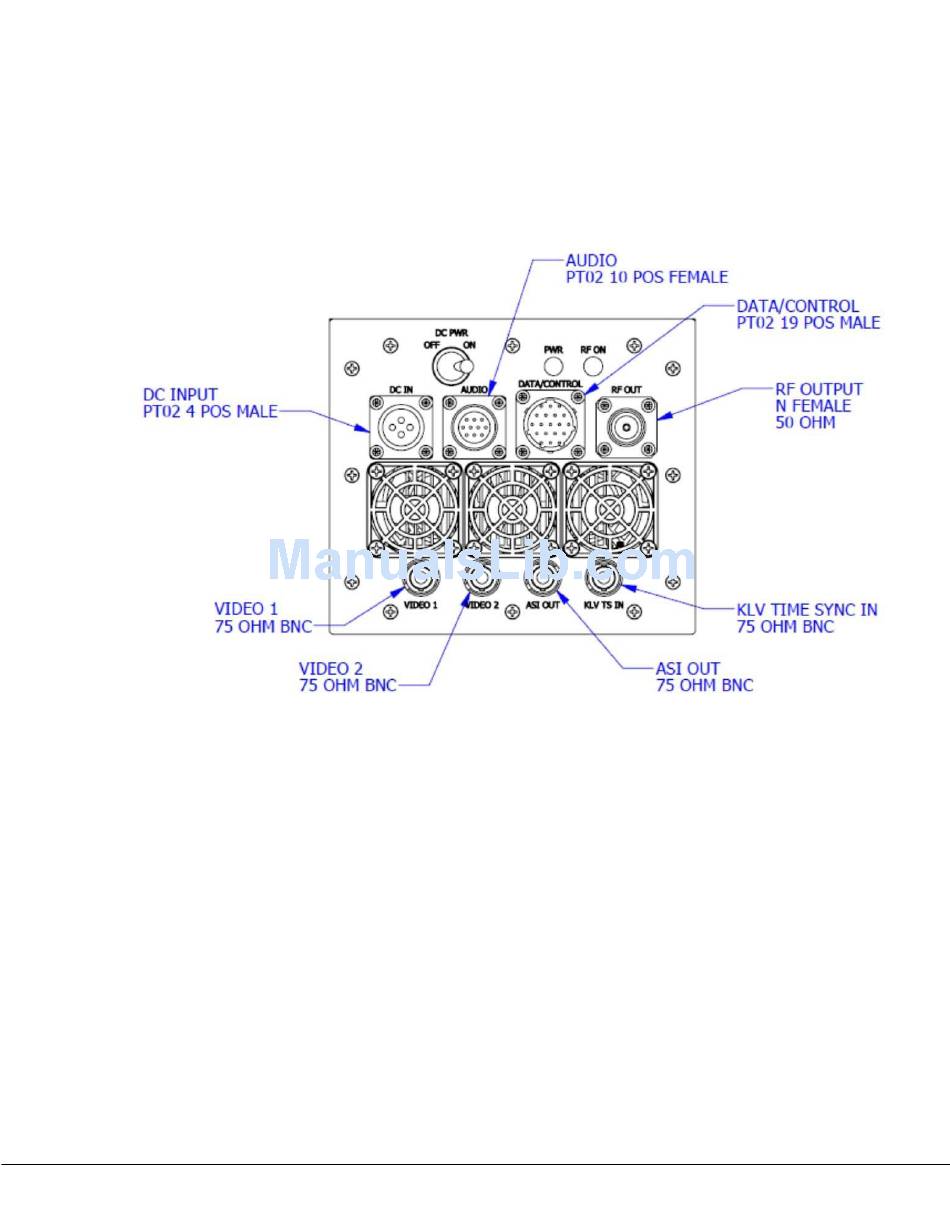

Figure 4 Rear Panel Connectors
