UniStream 5"
Kit Contents
 1 PLC+HMI controller
 4 mounting brackets
 1 panel mounting seal

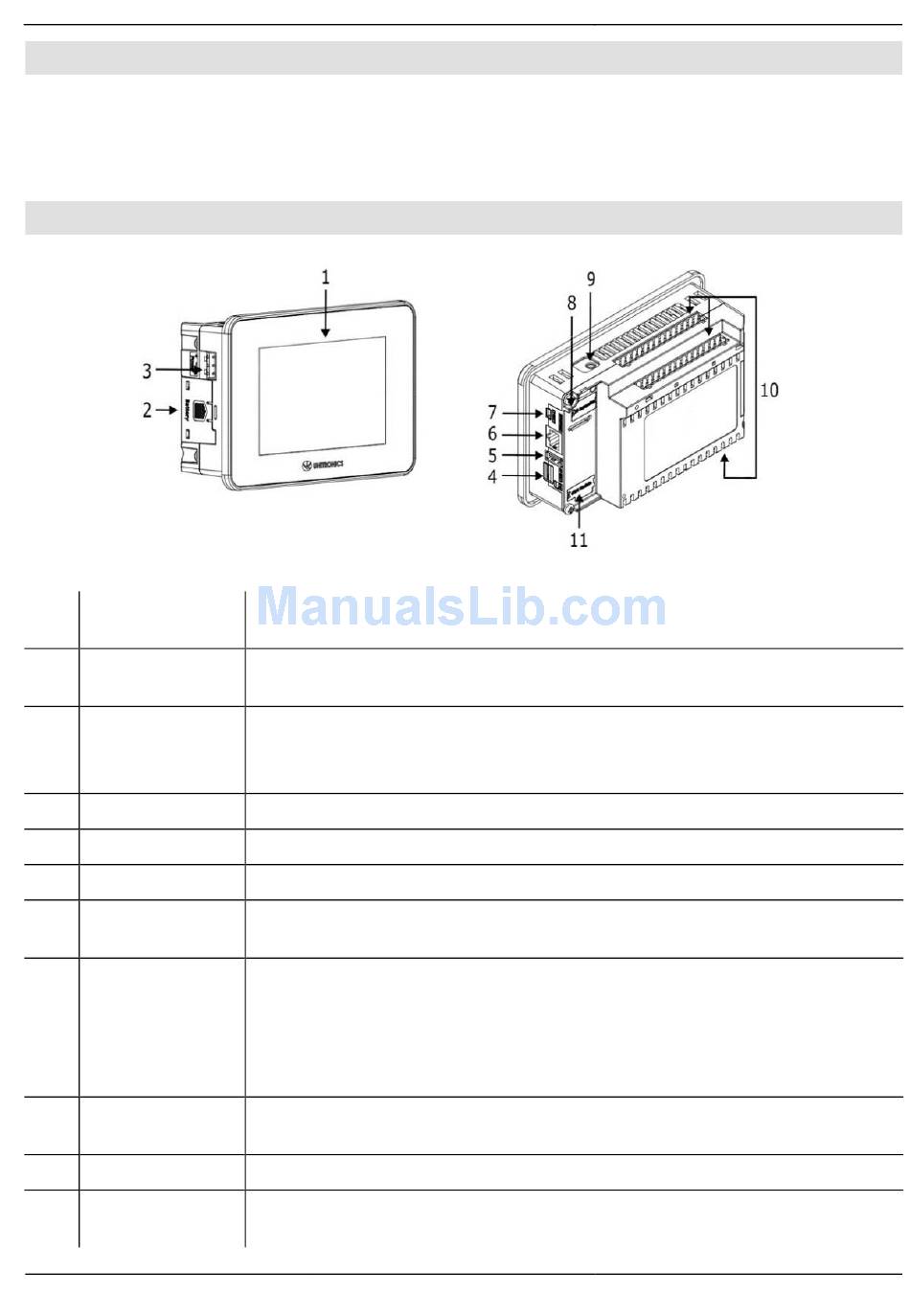

Product Diagram
1 Screen
Protection
2 Battery Cover
3 Power Supply
Input
4 microSD Slot
5 USB Host port
6 Ethernet port
7 USB Device
8 I/O Expansion
Jack
9 Audio Jack
10 Built-in I/O
11 Uni-COM™ CX
Module Jack
Unitronics
Front and Rear View
A plastic sheet attached to the screen for protection. Remove it
during installation of the HMI Panel.
The battery is supplied with the unit, but must be installed by the
user.
Connection point for the controller power source.
Connect the Terminal Block supplied with the kit to the end of the
power cable.
Supports standard microSD cards.
Provides the interface for external USB devices.
Supports high-speed Ethernet communications.
Use for application download and direct PC-UniStream
communication.
Connection point for an I/O Expansion Port.
Ports are supplied as part of I/O Expansion Model Kits. Kits are
available by separate order.
Note that UniStream 5" is compatible only with adapters from the
series UAG-CX.
UniStream 5" Pro only. This 3.5mm Audio jack enables you to
connect external audio equipment.
Model-dependent. Present in models with built-in I/O configurations.
Connection point for up to 3 stack-on modules. These are available
by separate order.
 1 power terminal block
 3 I/O terminal blocks (provided only with
models comprising built-in I/Os)
 1 Battery
