Summary of Contents for Cognex Checker 101

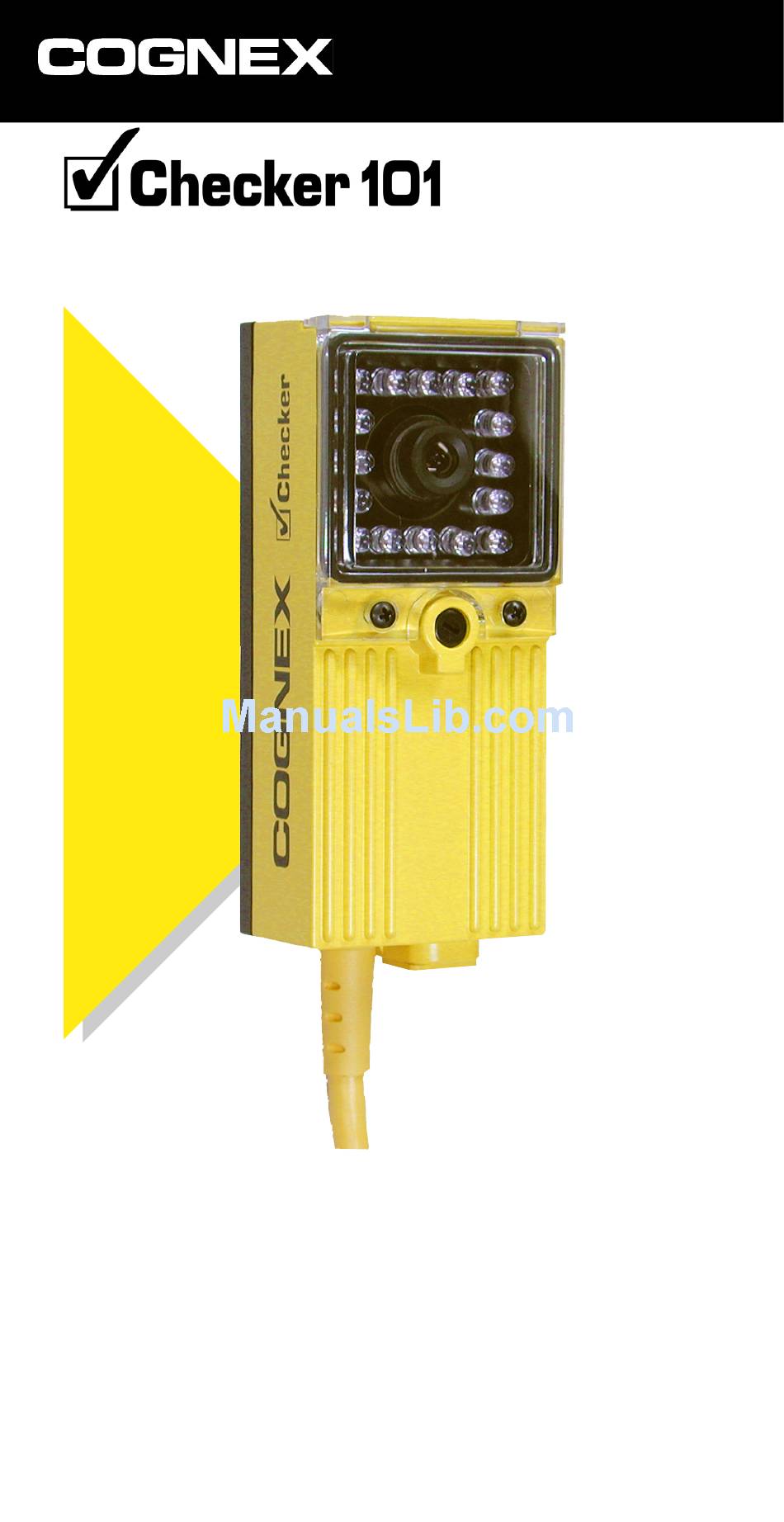

- Page 1 Quick Reference...
-
Page 2: About Checker
About Checker™ • Checker is the sensor. • CheckMate™ is the software that runs on your PC. You use CheckMate to set up Checker. Minimum PC Requirements • Microsoft® Windows® 2000 or Windows XP • 400MHz Pentium® III CPU • 128 MB RAM •... -
Page 3: Setting Up Your Job
Start the CheckMate Software Start CheckMate by double-clicking on the CheckMate icon. (The first time that you start CheckMate, it may take a moment before your PC recognizes Checker.) Questions and Answers Checker Status Job Setup Steps Controls Filmstrip Filmstrip Control CheckMate always displays a list of questions and answers related to the current state of CheckMate. -
Page 4: Connecting Checker
Set up Outputs, Test, and Run Checker has two user-configurable output lines: Output 0 and Output 1. You can configure Checker to send a signal on either line when a part is detected, passed, or failed, or you can disable the output line. Test your job at production speed to make sure that good parts pass and bad parts fail. -
Page 5: Checker I/O Module
If the standard lens does not let Checker do this, an inexpensive set of additional lenses is available from Cognex. The following tables show the range of working distances and fields of view for the available lenses:... -
Page 6: Getting Help
Cognex Corporation. The hardware and portions of the software described in this document may be covered by one or more of the U.S. patents listed on the Cognex web site http://www.cognex.com/patents.asp. Other U.S. and foreign patents are pending.
