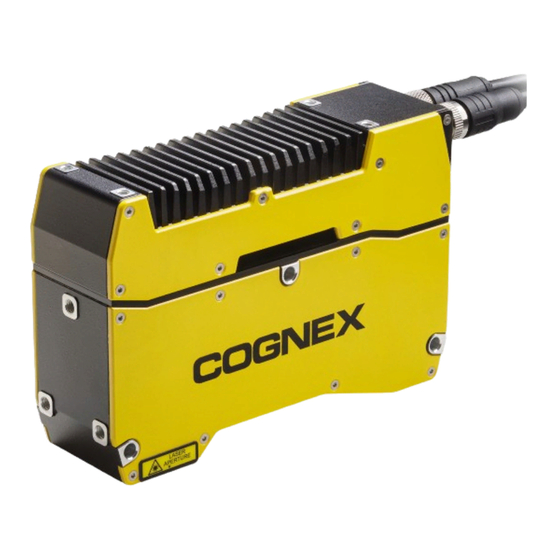

Summary of Contents for Cognex In-Sight 3D-L4000 Series

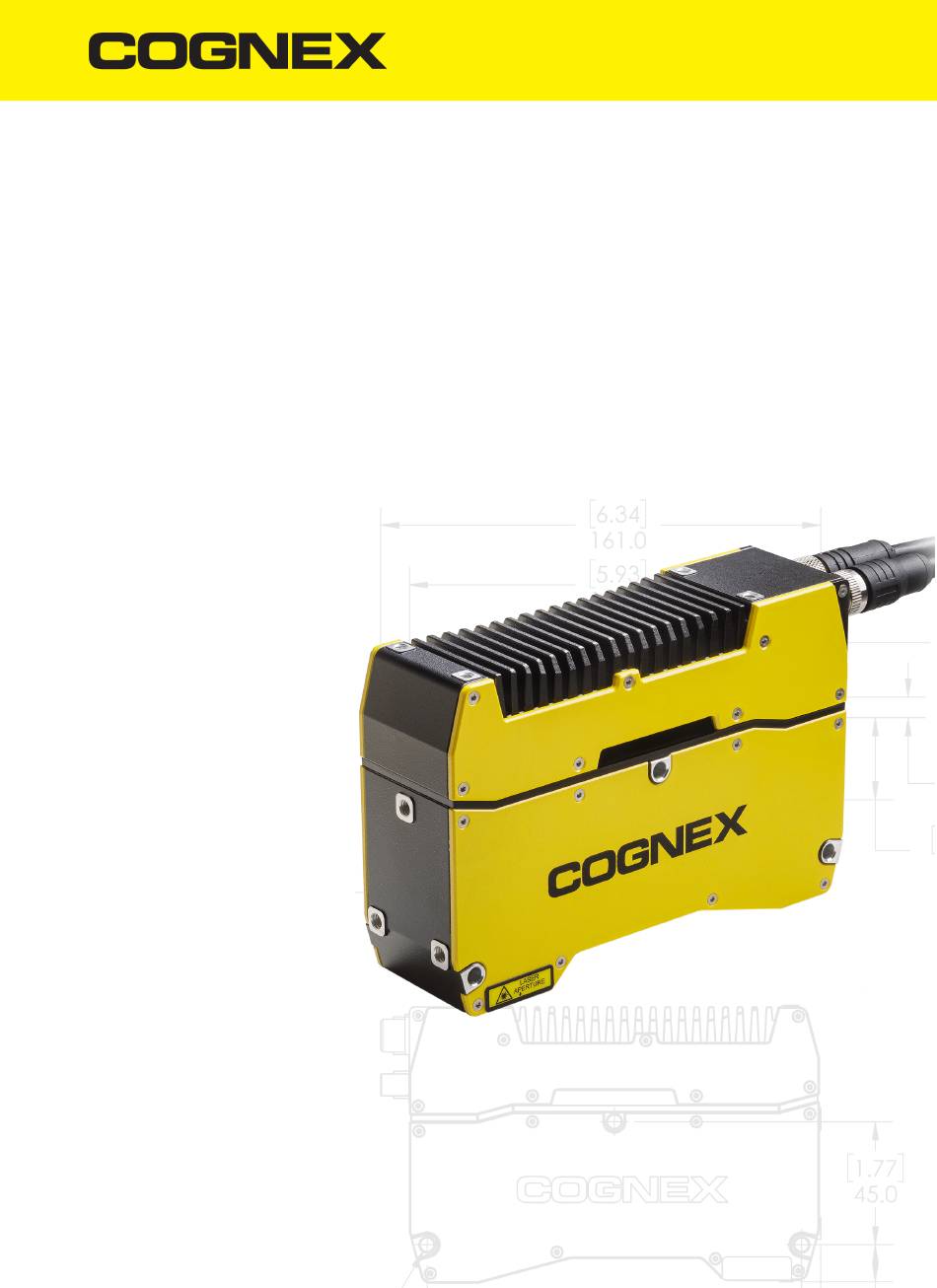

- Page 1 ® In-Sight 3D-L4000 Series Vision System Reference Guide 2021 March 08 Revision: 1.0.0.90...
-
Page 2: Legal Notices
Copyright © 2020. Cognex Corporation. All Rights Reserved. Portions of the hardware and software provided by Cognex may be covered by one or more U.S. and foreign patents, as well as pending U.S. and foreign patents listed on the Cognex web site at: cognex.com/patents. -
Page 3: Table Of Contents
Table of Contents Table of Contents Legal Notices Table of Contents Precautions Symbols Introduction About the In-Sight 3D-L4000 Support Accessories Cables Correction Targets Connectors and Indicators Working Distances and Fields of View Theory of Operation Operation of the Triangulation Sensor Raw 2D Images Point Cloud Invisible Points... - Page 4 Table of Contents Laser Compliance Laser Safety Warnings Label Locations Regulations and Conformity China RoHS For European Community Users Product Service...
-
Page 5: Precautions
Precautions Precautions To reduce the risk of injury or equipment damage, observe the following precautions when you install the Cognex product: The vision system requires a UL or NRTL listed power supply with a 24VDC output that meets the following rating requirements: At least 1A continuous current. -
Page 6: Symbols
Symbols Symbols The following symbols indicate safety precautions and supplemental information: WARNING: This symbol indicates a hazard that could cause death, serious personal injury or electrical shock. CAUTION: This symbol indicates a hazard that could result in property damage. Note: This symbol indicates additional information about a subject. Tip: This symbol indicates suggestions and shortcuts that might not otherwise be apparent. -
Page 7: Introduction
The In-Sight® 3D User Guide, provided with In-Sight software. On-demand training: cognex.com/on-demand-training.aspx The In-Sight online support site: cognex.com/support/insight. Accessories You can purchase the following components separately. For a list of options and accessories, contact your local Cognex sales representative. Cables Note: Cables are sold separately. CAUTION: All cable connectors are keyed to fit the connectors on the vision system. -
Page 8: Correction Targets
5m, 10m, 20m) 5m, 10m, 20m) Correction Targets To perform a correction on a 3D smart camera, you must use a Cognex-supplied correction target. The target consists primarily of a frustum, a feature exhibiting six different planes with eight intersecting points. Accessory... -
Page 9: Connectors And Indicators
Introduction Connectors and Indicators Number Component Description ENET Connector Connects the Ethernet cable, which provides 10/100/1000 Ethernet connectivity. For more information, refer to Ethernet Cable on page 26. PWR Connector Connects the Breakout cable, which provides connections to an external power supply, the acquisition trigger input, general-purpose inputs and high-speed outputs. -
Page 10: Working Distances And Fields Of View
Introduction Working Distances and Fields of View Number Specification IS3D-L4050 IS3D-L4100 IS3D-L4300 Clearance Distance (mm) 92 Near Field of View (mm) Measurement Range (mm) Far Field of View (mm) -
Page 11: Theory Of Operation
Theory of Operation Theory of Operation This section gives a brief overview about the theory of operation. Operation of the Triangulation Sensor A triangulation sensor measures objects by imaging the intersection of a uniform planar light source and an object. The sensor projects a sheet of light through a measurement area. - Page 12 Theory of Operation Number Element In-Sight 3D-L4000 Laser plane Inspected object Camera field of view Working section Laser stripe The vision system (1) projects a triangular laser plane (2) onto the object under inspection (3), illuminating the object's surface. The illumination of the laser plane determines the peak data of the raw 2D image and results in the 3D-L4000's laser stripe (6) within its field of view (4).
-
Page 13: Point Cloud
Theory of Operation The vision system then applies an algorithm to find the peaks to extract the uncalibrated peak data. On the image below, the cyan blue lines represent a subregion of the field of view working section (see Working Distances and Fields of View page 10), where the vision system is looking for peak data. -
Page 14: Invisible Points
Theory of Operation These profiles are assembled to create an image of the whole object. This is called a point cloud. The image below shows an example. Invisible Points As the vision system views the object at a fixed angle from the laser plane, certain areas of the object under inspection may be hidden from the vision system. - Page 15 Theory of Operation The orange stripe shows the width of the lower red stripe, relative to the upper red stripe. The green portions show the difference between the two widths. Consider a Lego® block scanned by the vision system. As it passes under the camera, the laser stripe appears for each step.
-
Page 16: Installation
Installation Installation Read this section to learn how the vision system connects to standard components and accessories. For a list of options and accessories, contact your Cognex sales representative. Note: Cables are sold separately. CAUTION: All cable connectors are keyed to fit the connectors on the vision system. Do not force the connections or damage may occur. -
Page 17: Mount The Vision System: Top Housing
Installation Mount the Vision System: Top Housing 1. Align the holes on the mounting surface with the mounting holes on the vision system. 2. Insert the M4 screws into the top mounting holes and tighten. The maximum torque is 2.00Nm (17.70in-lb). Do not exceed the maximum insertion depth of 8 mm for the M4 screws. -
Page 18: Mount The Vision System: Rear Housing
Installation Mount the Vision System: Rear Housing 1. Align the holes on the mounting surface with the mounting holes on the vision system. 2. Insert the M5 screws into the rear mounting holes and tighten. The maximum torque is 3.00 Nm (26.55 in-lb). Do not exceed the maximum insertion depth of 8 mm for the M5 screws.. -
Page 19: Connect The Ethernet Cable
Installation Connect the Ethernet Cable CAUTION: The Ethernet cable shield must be grounded at the far end. Whatever this cable is plugged into (typically a switch or router) should have a grounded Ethernet connector. A digital voltmeter should be used to validate the grounding. -
Page 20: Connect The Breakout Cable
24 VDC supply, the encoder supply and the 24 VDC supply need to have a common GND connection. Cognex recommends to ground unused encoder connections. If you configure the In-Sight 3D software to use an encoder but do no connect the encoder signal inputs, the behavior of the encoder counter is undetermined. - Page 21 Installation When the vision system is on, the Power LED on top of the unit will light up green.
-
Page 22: Cleaning And Maintenance
CAUTION: Use care not to damage the anti-reflective coating on the windows. Cognex makes the following recommendations for cleaning the laser and vision system windows: Unplug the unit so the laser cannot be enabled. Use lint-free tissue or an optical grade cotton swab ("Q-tip"). -
Page 23: Vision System Specifications
Vision System Specifications Vision System Specifications Specification 3D-L4050 3D-L4100 3D-L4300 Scan rate Up to 4 kHz Resolution X-axis 1934 points/profile Built-in I/O Inputs: 1 dedicated trigger, 1 laser safety Outputs: 2 user-definable Encoder Input Specification Differential: A+/B+/A-/B-: 5-24V (1000 kHz max) Single Ended: A+/B+: 12-24V (1000 kHz max) A-/B-: V /2 (6-12VDC) encoder... -
Page 24: Dimensions
Vision System Specifications Dimensions Note: All Dimensions are in millimeters [inches] and are for reference purposes only. All specifications are for reference purposes only and can change without notice. -
Page 25: Laser Specifications
Vision System Specifications Laser Specifications This laser product has a Class 2M designation. The table below summarizes environmental and power supply specifications for vision system types 3D-L4050, 3D- L4100 and 3D-L4300. Laser (light source) Value Wavelength 450 nm Laser class Output power 45 mW... -
Page 26: Ethernet Cable
Vision System Specifications Ethernet Cable The Ethernet cable provides Ethernet connectivity to the vision system. P1 Pin Number Wire Color Signal Name P2 Pin Number White/Orange TxRx A + Orange TxRx A - White/Green TxRx B + Blue TxRx C + White/Blue TxRx C - Green... -
Page 27: Breakout Cable
Vision System Specifications Breakout Cable The Breakout cable provides access to trigger and inputs. You can clip unused wires short or use a tie made of non- conductive material to tie them back. Pin # Signals Name Color PHB+ Yellow PHB- White/Yellow PHA+... -
Page 28: Encoder Inputs
Vision System Specifications A quadrature rotary encoder uses two output channels (A and B) to provide cyclical outputs as the encoder rotates. The signals are quadrature outputs - 90 degrees out of phase with each other. Each complete quadrature cycle consists of four rising or falling pulse edges. -
Page 29: Encoder Wiring
Vision System Specifications Note: If you are using a Single-Channel Encoder, always connect to the ‘PHA’ input. WARNING: The frequency of pulses has to remain under 1000 kHz. Single-ended encoders use one wire each for signals A and B. Be aware single-ended encoders are susceptible to electrical noise. -
Page 30: Trigger And Laser Enable Inputs
Vision System Specifications Trigger and Laser Enable Inputs The acquisition trigger and laser enable inputs to the sensor are opto-isolated. The sensor responds to a trigger event when the voltage difference between the TRIGGER and IN COMMON inputs exceed 10 V. The laser enable input is enabled when the difference between the LASER ENABLE and IN COMMON inputs exceed 10 V. -
Page 31: Trigger And Laser Enable Wiring
Vision System Specifications Trigger and Laser Enable Wiring Number Component Trigger (Sensor Sinks Current - NPN) Laser Enable (Sensor Sinks Current - NPN) Number Component Trigger (Sensor Sources Current - PNP) Laser Enable (Sensor Sources Current- PNP) Outputs The optically isolated outputs are usable as either NPN ( current sinking, pull-down) or PNP (current sourcing, pull-up) lines. -
Page 32: Output Wiring
Vision System Specifications In case of PNP lines, the external load is connected between the output and the negative supply voltage (0 V). When connected to a 24 VDC power supply, the outputs pull up greater than 21 V when ON, and current flows through the load. - Page 33 Vision System Specifications The image below presents the wiring schematic of the Output 0 and Output 1 of the PNP (Sensor Sources Current).
-
Page 34: Laser Models
Laser light, do not stare into beam: Class 2M laser product. Failure to follow these instructions may cause serious injury. Cognex places the following labels on every 3D-L4000 series vision system: Complies with FDA performance standards for laser products except for conformance with IEC 60825-1 Ed. 3, as described in Laser Notice No. -
Page 35: Laser Safety Warnings
There is no scheduled maintenance necessary to keep the product in compliance. Under no circumstances should you operate the sensor if it is defective or the seal damaged. Cognex Corporation cannot be held responsible for any harm caused by operating a faulty unit. -
Page 36: Regulations And Conformity
Regulations and Conformity Regulations and Conformity Note: For the most current CE declaration and regulatory conformity information, see the Cognex support site: cognex.com/support. Manufacturer Cognex Corporation One Vision Drive Natick, MA 01760 USA 3D-L4050: Regulatory Model 50203 3D-L4100: Regulatory Model 50203 3D-L4300: Regulatory Model 50203 This is a class A product. -
Page 37: China Rohs
Regulations and Conformity China RoHS Hazardous Substances 有害物质 Part Name Lead (Pb) Mercury (Hg) Cadmium Hexavalent Polybrominated Polybrominated 部件名称 铅 汞 (Cd) Chromium biphenyls (PBB) diphenyl ethers (PBDE) 镉 多溴联苯 多溴二苯醚 (Cr (VI)) 六价铬 Regulatory Model 50203 This table is prepared in accordance with the provisions of SJ/T 11364. 这个标签是根据SJ / T 11364 的规定准备的。... -
Page 38: For European Community Users
Product Service Bring any performance issues to the attention of your Cognex sales representative. The sensor can only be serviced by a trained Cognex representative. Return the unit to Cognex for any service or repairs. Do not operate the sensor if the enclosure appears damaged.
