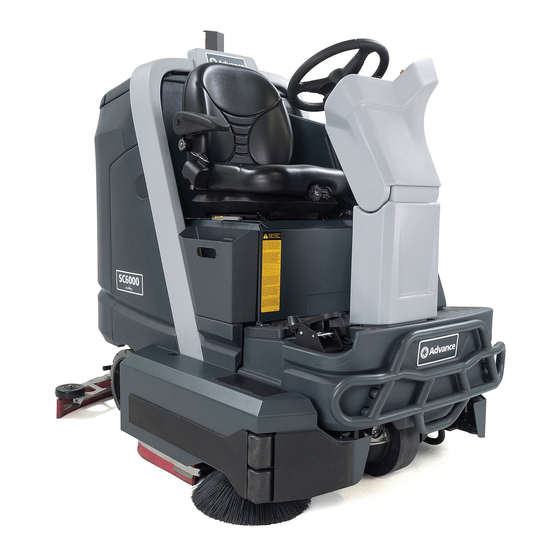

  • Page 1 For cleaning machines, parts & supplies click/visit www.southeasternequipment.net SC6000 Instructions For Use - Original Instructions Instrucciones de uso / Mode d‘ emploi Models: 56116000 (36C), 56116001 (40D), 56116002 (34D) A-English B-Español C-Français 4/2016 Form No. 56091161 REV A For cleaning machines, parts & supplies click/visit www.southeasternequipment.net...

  • Page 2: Table Of Contents

    For cleaning machines, parts & supplies click/visit www.southeasternequipment.net A - ENGLISH INSTRUCTIONS FOR USE TABLE OF CONTENTS page Introduction ................... A-3 Cautions and Warnings ...............A-4 – A-5 Know Your Machine ..............A-6 – A-7 Control Panel ................A-8 – A-9 Information Menu Display ............A-10 – A-11 Prepare the Machine for Use Install the Batteries ..............A-12 –...

  • Page 3: Introduction

    For cleaning machines, parts & supplies click/visit www.southeasternequipment.net INSTRUCTIONS FOR USE ENGLISH - A INTRODUCTION This manual will help you get the most from your Advance Rider Scrubber. Read it thoroughly before operating the machine. Note: Bold numbers in parentheses indicate an item illustrated on pages A-6 – A-9. This product is intended for commercial use only.

  • Page 4: Cautions And Warnings

    For cleaning machines, parts & supplies click/visit www.southeasternequipment.net A - ENGLISH INSTRUCTIONS FOR USE CAUTIONS AND WARNINGS SYMBOLS Advance uses the symbols below to signal potentially dangerous conditions. Always read this information carefully and take the necessary steps to protect personnel and property. This machine is for commercial use, for example in hotels, schools, hospitals, factories, shops and offi...

  • Page 5: Save These Instructions

    For cleaning machines, parts & supplies click/visit www.southeasternequipment.net INSTRUCTIONS FOR USE ENGLISH - A CAUTION! • This machine is not approved for use on public paths or roads. • This machine is not suitable for picking up hazardous dust. • Do not use scarifi...

  • Page 6: Know Your Machine

    For cleaning machines, parts & supplies click/visit www.southeasternequipment.net A - ENGLISH INSTRUCTIONS FOR USE KNOW YOUR MACHINE As you read this manual, you will occasionally run across a bold number or letter in parentheses - example: (2). These numbers refer to an item shown on these pages unless otherwise noted.
  • Page 7 For cleaning machines, parts & supplies click/visit www.southeasternequipment.net INSTRUCTIONS FOR USE ENGLISH - A KNOW YOUR MACHINE 15 Scrub Deck Side Door 25 Tie-Down Location 16 Steering Column Tilt Adjust 26 Hopper (cylindrical only) 27 Scrub Deck 17 Recovery Filter and Screen Cover 18 Debris Catch Tray 28 Control Panel 19 Recovery Tank Full Switch...

  • Page 8: Control Panel

    For cleaning machines, parts & supplies click/visit www.southeasternequipment.net A - ENGLISH INSTRUCTIONS FOR USE CONTROL PANEL Smart Key Reader Headlight Switch (optional) Power Switch Speed Limiter Switch Brush Install Switch Display Information Switch and Navigation Switches Dust Guard™ Switch (optional) Detergent Switch One-Touch™...
  • Page 9 For cleaning machines, parts & supplies click/visit www.southeasternequipment.net INSTRUCTIONS FOR USE ENGLISH - A CONTROL PANEL - CONTINUED Hour Meter (Drive Hours) C11 Scrub Pressure Indicator Active Fault Codes C12 Scrub Brush Pressure Bar Graph Battery Indicator FIRST = Regular Solution Tank Level Indicator SECOND = Heavy Speed (miles per hour)

  • Page 10: Information Menu Display

    For cleaning machines, parts & supplies click/visit www.southeasternequipment.net A - ENGLISH INSTRUCTIONS FOR USE INFORMATION MENU DISPLAY Menu Display Pressing the Information Switch (D) will bring up the menu shown below which allows the operator to change machine settings and Menu gather machine information.
  • Page 11 For cleaning machines, parts & supplies click/visit www.southeasternequipment.net INSTRUCTIONS FOR USE ENGLISH - A INFORMATION MENU DISPLAY - CONTINUED Menu Level Notes Options User selectable options Solution mode; Proportional – solution fl ow Proportional* increases with speed of machine. Fixed – Solution Solution Fixed fl...

  • Page 12: Install The Batteries

    For cleaning machines, parts & supplies click/visit www.southeasternequipment.net A - ENGLISH INSTRUCTIONS FOR USE MAGNETIC SMART KEY The use of a Magnetic Smart Key (W) is required to operate this machine. Pressing the power switch without a key in place on the Smart Key Reader (A) will cause the machine to momentarily turn on and display No Key Indicator (C21) before turning off.
  • Page 13 For cleaning machines, parts & supplies click/visit www.southeasternequipment.net INSTRUCTIONS FOR USE ENGLISH - A BATTERIES - CONTINUED CAUTION! Electrical components in this machine can be severely damaged if the batteries are not installed and connected properly. Batteries should be installed by Advance or by a qualifi ed electrician. Remove the batteries from their shipping crate and carefully inspect them for cracks or other damage.

  • Page 14: Install The Brushes

    For cleaning machines, parts & supplies click/visit www.southeasternequipment.net A - ENGLISH INSTRUCTIONS FOR USE INSTALL THE BRUSHES (DISC SYSTEM) CAUTION! Turn the machine OFF at the power switch, before changing the brushes, and before opening any access panels. Make sure the Scrub Deck is in the RAISED position. Make sure the Power Switch (B) is off. Unlatch and swing open the Scrub Deck Side Doors (15).

  • Page 15: Caution

    For cleaning machines, parts & supplies click/visit www.southeasternequipment.net INSTRUCTIONS FOR USE ENGLISH - A INSTALL THE BRUSHES (CYLINDRICAL SYSTEM) CAUTION! Turn the machine OFF at the power switch, before changing the brushes, and before opening any access panels. Make sure the Scrub Deck is in the RAISED position. Make sure the Power Switch (B) is off. Unlatch and swing open the Scrub Deck Side Doors (15).

  • Page 16: Fill The Solution Tank

    For cleaning machines, parts & supplies click/visit www.southeasternequipment.net A - ENGLISH INSTRUCTIONS FOR USE FILLING THE SOLUTION TANK See Figure 4. Fill the solution tank with a maximum of 50 gallons (190 Liters) of cleaning solution. Do not fi ll the solution tank above 5 cm (2 inches) from the bottom of the Solution Fill (32).

  • Page 17: Squeegee Installation

    For cleaning machines, parts & supplies click/visit www.southeasternequipment.net INSTRUCTIONS FOR USE ENGLISH - A SQUEEGEE INSTALLATION See Figure 6. Ensure the Squeegee Seal (AA) is free from debris and installed on the Squeegee Assembly (24). Lift the squeegee assembly by its Handles (AB) and slide it onto the Squeegee Mount (AC) and tighten the Squeegee Mount Thumb Nuts (21). Connect the Recovery Hose (33) to the squeegee mount (AC).

  • Page 18: Detergent System

    For cleaning machines, parts & supplies click/visit www.southeasternequipment.net A - ENGLISH INSTRUCTIONS FOR USE DETERGENT SYSTEM PREPARATION AND USE (ECOFLEX MODELS ONLY) The Detergent Cartridge (8) is located beneath the seat. Fill the detergent cartridge with a maximum of 1 gallon (4 Liters) of detergent. SERVICE NOTE: Remove the detergent cartridge from the machine prior to fi...

  • Page 19: Equipment

    For cleaning machines, parts & supplies click/visit www.southeasternequipment.net INSTRUCTIONS FOR USE ENGLISH - A DETERGENT SYSTEM PREPARATION AND USE (ECOFLEX MODELS ONLY) FIGURE 7 Plain Water Cleaning Mode / Detergent Off Minimum Concentration Detergent Mode Maximum Concentration Detergent Mode Burst of Power Cleaning Mode Purge Press and hold (H) &...

  • Page 20: Operating The Machine

    For cleaning machines, parts & supplies click/visit www.southeasternequipment.net A - ENGLISH INSTRUCTIONS FOR USE OPERATING THE MACHINE WARNING! Be sure you understand the operator controls and their functions. While on ramps or inclines, avoid sudden stops when loaded. Avoid abrupt sharp turns. Use low speed down hills. To Scrub...

  • Page 21: Wet Vacuuming

    For cleaning machines, parts & supplies click/visit www.southeasternequipment.net INSTRUCTIONS FOR USE ENGLISH - A WET VACUUMING Steps to follow in fi tting the machine with optional attachments for wet vacuuming. Disconnect the recovery hose (33) from the squeegee mount. Connect the coupler and hose from the wand kit to the recovery hose. Attach suitable wet pick-up tools to the hose.

  • Page 22: After Use

    For cleaning machines, parts & supplies click/visit www.southeasternequipment.net A - ENGLISH INSTRUCTIONS FOR USE AFTER USE When fi nished scrubbing, press the One-Touch Scrub Switch (E). This will automatically raise, retract and stop all the machine systems (brush, squeegee, vacuum, solution and detergent (EcoFlex models)). Then drive the machine to a service area for daily maintenance and review of other needed service up keep.

  • Page 23: Lubricating The Machine

    For cleaning machines, parts & supplies click/visit www.southeasternequipment.net INSTRUCTIONS FOR USE ENGLISH - A LUBRICATING THE MACHINE Once a month, pump a small amount of grease into each grease fi tting on the machine until grease seeps out around the bearings. See Figure 10. Grease fi...

  • Page 24: Charging The Batteries

    For cleaning machines, parts & supplies click/visit www.southeasternequipment.net A - ENGLISH INSTRUCTIONS FOR USE CHARGING WET BATTERIES Charge the batteries each time the machine is used or when the Battery Charge Level Indicator (C3) is reading less than full. WARNING! Do not top off the batteries before charging.

  • Page 25: Caution

    For cleaning machines, parts & supplies click/visit www.southeasternequipment.net INSTRUCTIONS FOR USE ENGLISH - A CHARGING GEL/AGM (VRLA) BATTERIES Charge the batteries each time the machine is used or when the Battery Charge Level Indicator (C3) is reading less than full. WARNING! Charge batteries in a well-ventilated area.

  • Page 26: Squeegee Maintenance

    For cleaning machines, parts & supplies click/visit www.southeasternequipment.net A - ENGLISH INSTRUCTIONS FOR USE SQUEEGEE MAINTENANCE If the squeegee leaves narrow streaks or water, the blades may be dirty or damaged. Remove the squeegee, rinse it under warm water and inspect the blades.

  • Page 27: Equipment

    For cleaning machines, parts & supplies click/visit www.southeasternequipment.net INSTRUCTIONS FOR USE ENGLISH - A SQUEEGEE MAINTENANCE FIGURE 13 4/2016 56091161 - SC6000 A - 27 For cleaning machines, parts & supplies click/visit www.southeasternequipment.net...

  • Page 28: Side Blade Maintenance

    For cleaning machines, parts & supplies click/visit www.southeasternequipment.net A - ENGLISH INSTRUCTIONS FOR USE SIDE BLADE MAINTENANCE The side blade’s function is to channel the waste water to the squeegee, helping contain the water within the machines cleaning path. During normal use the blades will wear in time.

  • Page 29: Equipment

    For cleaning machines, parts & supplies click/visit www.southeasternequipment.net INSTRUCTIONS FOR USE ENGLISH - A SIDE BLADE MAINTENANCE FIGURE 14-1 FIGURE 14-2 FIGURE 14-3 4/2016 56091161 - SC6000 A - 29 For cleaning machines, parts & supplies click/visit www.southeasternequipment.net...

  • Page 30: Troubleshooting

    For cleaning machines, parts & supplies click/visit www.southeasternequipment.net A - ENGLISH INSTRUCTIONS FOR USE GENERAL MACHINE TROUBLESHOOTING Problem Possible Cause Remedy Poor water pick-up Worn or torn squeegee blades Reverse or replace Adjust so blades touch fl oor evenly across entire Squeegee out of adjustment width Recovery tank full...

  • Page 31: Fault Code Display

    For cleaning machines, parts & supplies click/visit www.southeasternequipment.net INSTRUCTIONS FOR USE ENGLISH - A G ENERAL MACHINE TROUBLESHOOTING FAULT CODE DISPLAY Any fault codes detected by the controllers will be displayed on the control panel display as they occur. If more than one error exists, the display will sequence through the error codes at one-second intervals.

  • Page 32: Equipment

    For cleaning machines, parts & supplies click/visit www.southeasternequipment.net A - ENGLISH INSTRUCTIONS FOR USE FAULT CODE DISPLAY - CONTINUED Fault Code Description Fault Code Description E4 Drive Controller Faults E3 Power Module Faults - continued 3-001 E4 Timeout 2-044 M4 Overcurrent 3-012 Control Overcurrent 2-045...

  • Page 33: Equipment

    For cleaning machines, parts & supplies click/visit www.southeasternequipment.net INSTRUCTIONS FOR USE ENGLISH - A FAULT CODE HISTORY Every fault code that occurs is recorded by the machine and kept in a history log. See Figures 15A-15D. To view the fault history press the Information Switch (D) to bring up the information menu.

  • Page 34: Accessories Options

    For cleaning machines, parts & supplies click/visit www.southeasternequipment.net A - ENGLISH INSTRUCTIONS FOR USE ACCESSORIES / OPTIONS In addition to the standard components, the machine can be equipped with the following accessories/options, according to the machine specifi c use: Brushes with harder or softer bristles Operator Foot Guard Kit Squeegee and side blades with different material Back-Up Alarm Kit...

  • Page 35: Equipment

    For cleaning machines, parts & supplies click/visit www.southeasternequipment.net INSTRUCTIONS FOR USE ENGLISH - A TECHNICAL SPECIFICATIONS (AS INSTALLED AND TESTED ON THE UNIT) Model SC6000 36C SC6000 34D SC6000 40D 56116000 56116002 56116001 Model Voltage, Batteries Battery Capacity (max) Protection Grade, Operating...

  • Page 36: Equipment

    For cleaning machines, parts & supplies click/visit www.southeasternequipment.net 9435 Winnetka Ave North Minneapolis, MN 55445 www.advance-us.com Phone: 800-989-2235 Fax: 800-989-6566 ©2016 Nilfi sk, Inc. A Nilfi sk Brand For cleaning machines, parts & supplies click/visit www.southeasternequipment.net...
