Connecting to the
Network
3CRFW103 Type III
PC Card
3CRFW102 Type II
PC Card
PC C D
ARD AND RIVERS
The 3Com Firewall PC Card with 10/100 LAN model 3CRFW102 is a Type II PC
card and the 3Com Firewall PC Card with 10/100 LAN model 3CRFW103 is a Type
III PC card. Follow the instructions for your card to connect it to the network.
NOTE : Your computer must have a CardBus PC Card slot for you to use the
3Com Firewall PC Card.

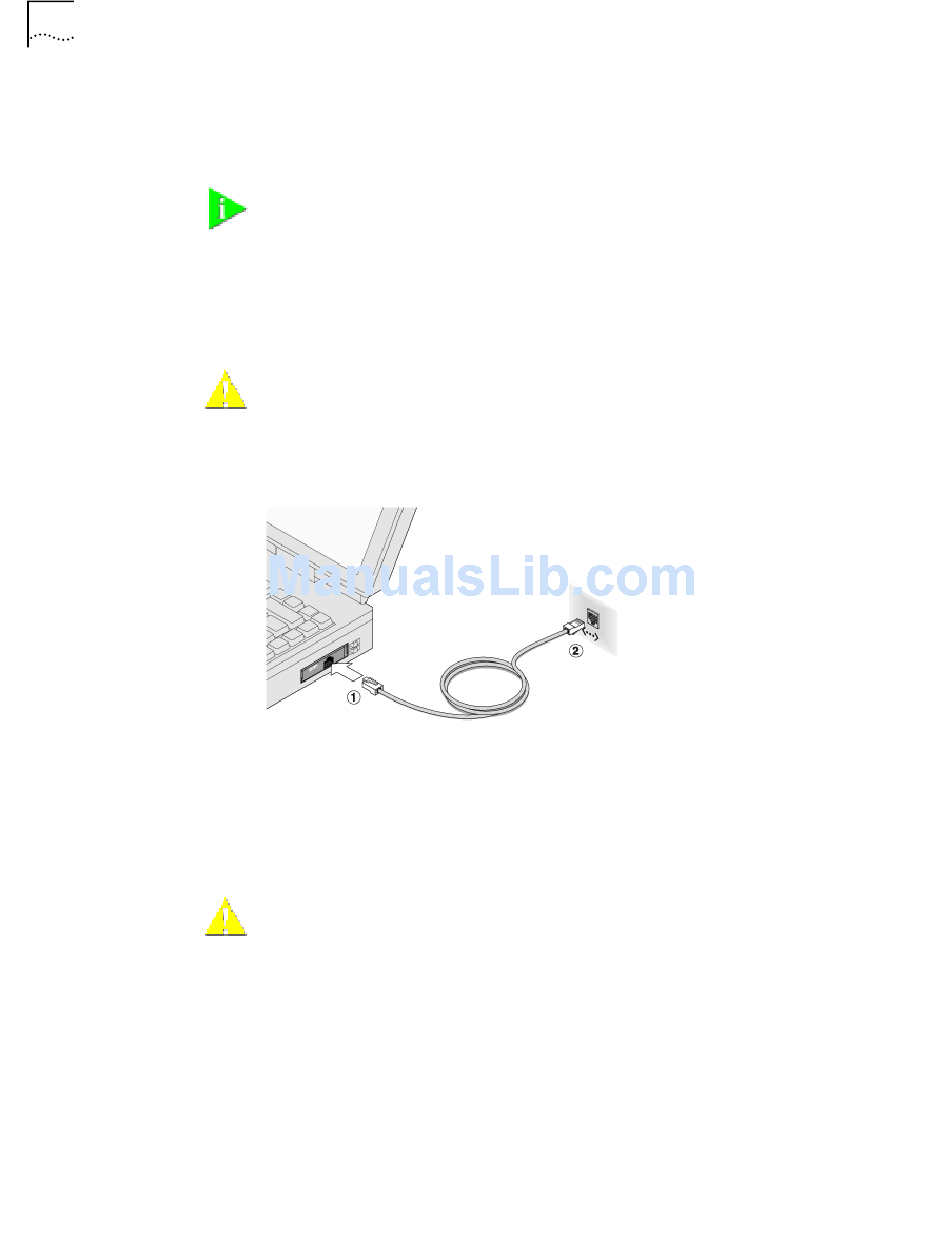

Follow these steps to connect your 3CRFW103 Firewall PC Card.
1 Insert the PC Card into the PC Card slot. Slide it in until it is firmly seated.
Do not force the PC Card into the slot or you may bend the pins inside the slot.
2 Connect the network cable to the 3CRFW103 PC Card (1).
3 Connect the network cable to the network port (2).
Follow these steps to connect your 3CRFW102 Firewall PC Card.
1 Insert the PC Card into the PC Card slot. Slide it in until it is firmly seated.
Do not force the PC Card into the slot or you may bend the pins inside the slot.
2 Connect the PC Card cable to the 3CRFW102 PC Card (1).
3 Connect the PC Card cable to the network cable (2).
