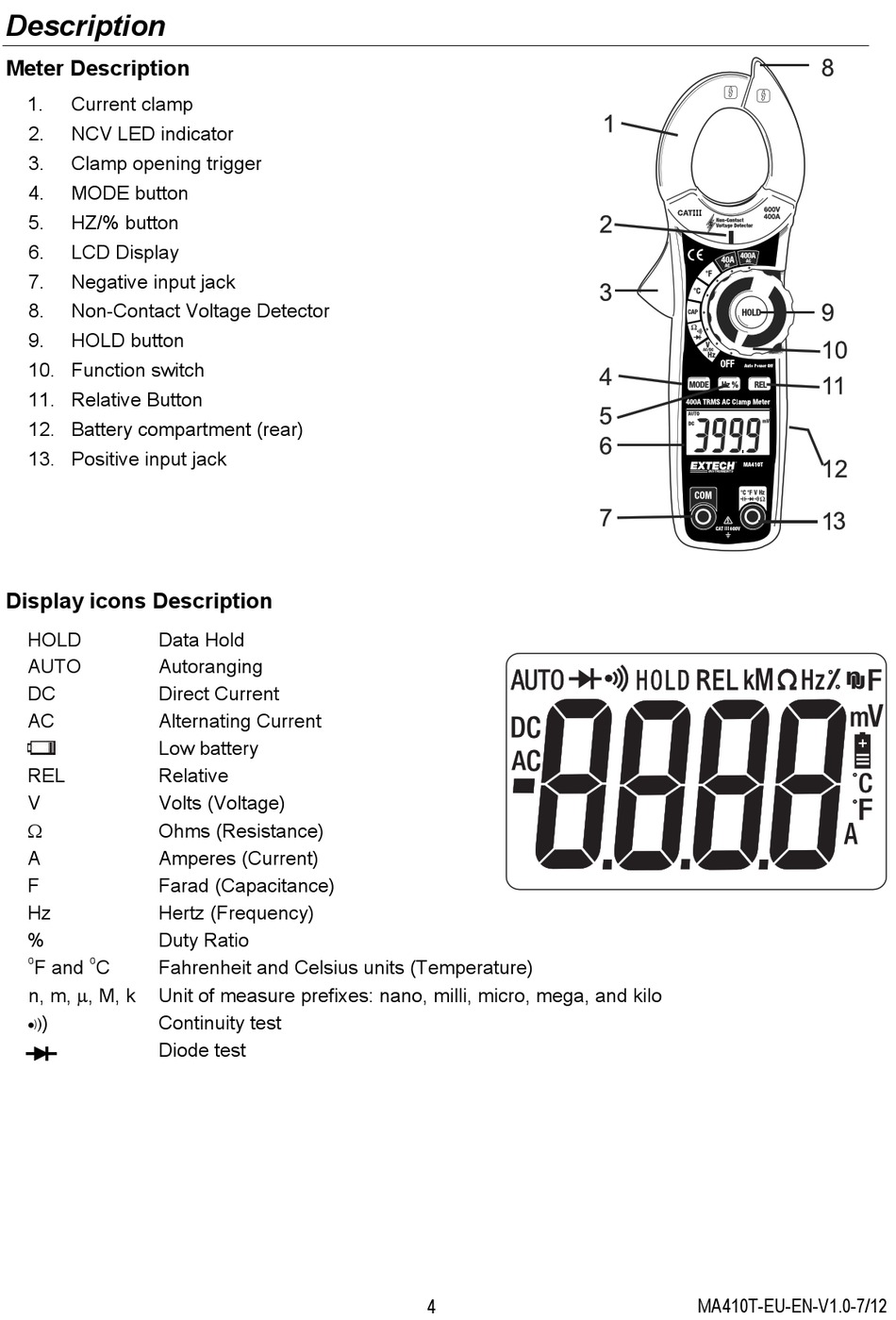

Description
Meter Description
1.
Current clamp
2.
NCV LED indicator
3.
Clamp opening trigger
4.
MODE button
5.
HZ/% button
6.
LCD Display
7.
Negative input jack
8.
Non-Contact Voltage Detector
9.
HOLD button
10. Function switch
11. Relative Button
12. Battery compartment (rear)
13. Positive input jack
Display icons Description
HOLD
Data Hold
AUTO
Autoranging
DC
Direct Current
AC
Alternating Current
Low battery
REL
Relative
V
Volts (Voltage)
Ohms (Resistance)
A
Amperes (Current)
F
Farad (Capacitance)
Hz
Hertz (Frequency)
%
Duty Ratio
o
o
F and
C
Fahrenheit and Celsius units (Temperature)
n, m, , M, k
Unit of measure prefixes: nano, milli, micro, mega, and kilo
)
Continuity test
)
)
Diode test
4
MA410T-EU-EN-V1.0-7/12
