Antenna Assembly Instructions

Please follow the steps listed below to assure proper operation and deployment.
Step

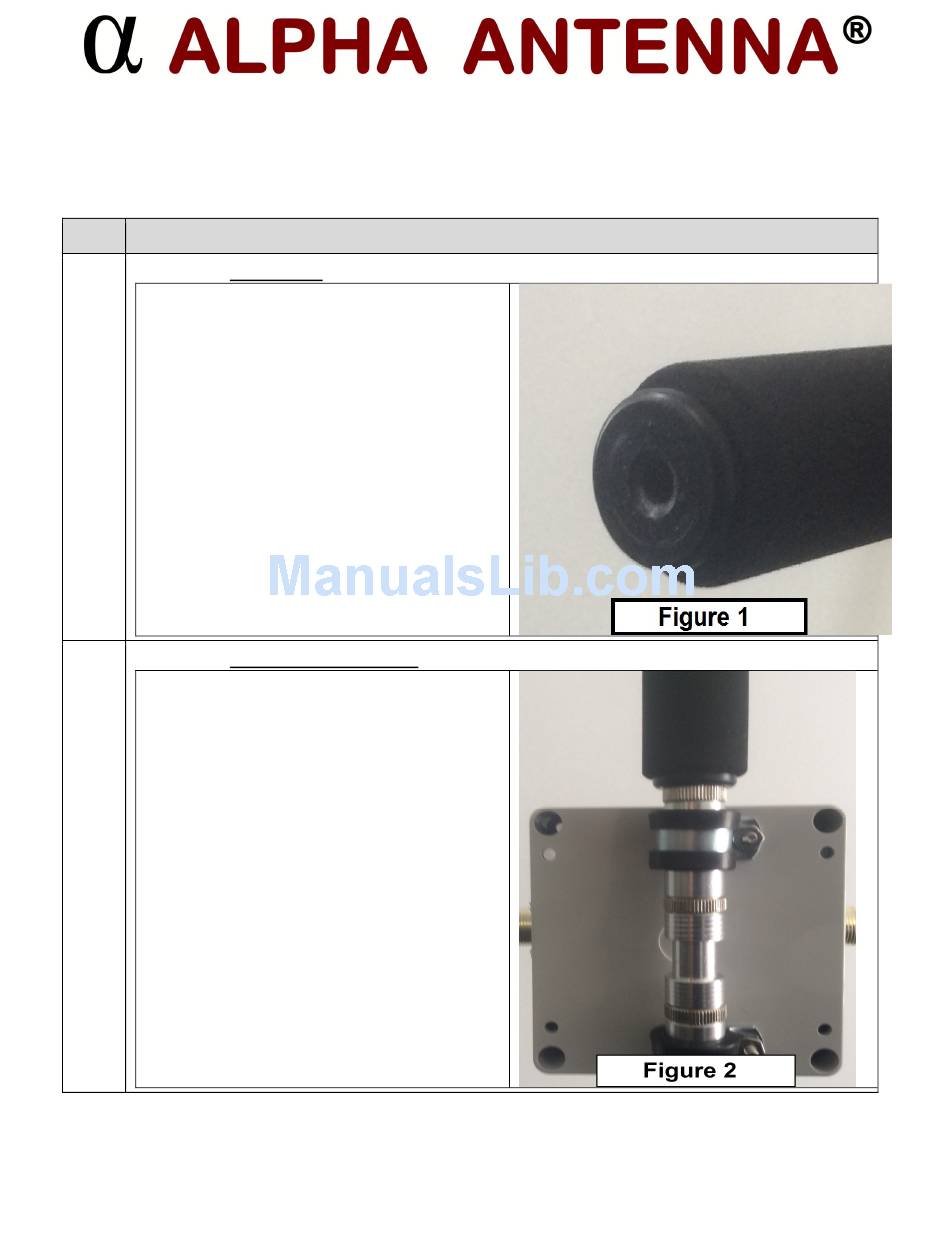

Locate the Selfie Stick:
Extend the sections and take note of the
hole on the bottom (Figure 1). This hole is
where the screw on top of the grey Alpha
Match box will attach.
1
Locate the grey Alpha Match box:
Place the screw from the top of the back
support bracket on the grey Selfie Match
box into the bottom hole on the Alpha
Stick (Figure 2) and turn till it is secure
Note - There is a 1/4 - 20 threaded hole
on the bottom of the support bracket that
can be used to mount the antenna on an
optional tripod.
2
Assembly
Page 7
