- Page 1 User Guide for the Alpha QRP Loop Antenna Manufactured by: Alpha Antenna 1.888.482.3249 Website: http://AlphaAntenna.com User Guide Version 2.0 Page 1...
-
Page 2: Table Of Contents
Table of Contents Introduction ........................3 Product Overview ......................3 Safety Tips ........................4 Antenna Diagram ......................5 Antenna Parts List ......................6 Antenna Assembly Instructions ..................6 Antenna Operation ......................6 Support Contacts ......................8 Page 2... -
Page 3: Introduction
Product Overview The Alpha QRP Loop Antenna is designed to operate on the 10, 12, 15, 17, 20, 30, and 40 Meter amateur radio bands. It will accept up to 10 Watts (PEP) of transmitter power on SSB. We put safety first and insert a nylon shaft between the knob and the Variable Air Capacitor, which is a design that minimizes the chance of RF burns from occurring. -
Page 4: Safety Tips
Safety Tips When installing or operating this antenna or any other antenna/tower, please observe the following safety tips. NOTE – High voltages are present when transmitting, no matter how much or little power is applied. Do not touch any part of the Alpha QRP Loop while transmitting. WARNING: INSTALLATION OR OPERATION OF THIS PRODUCT NEAR POWER LINES IS DANGEROUS! FOR YOUR SAFETY, FOLLOW THE ENCLOSED INSTALLATION DIRECTIONS. -
Page 5: Antenna Diagram

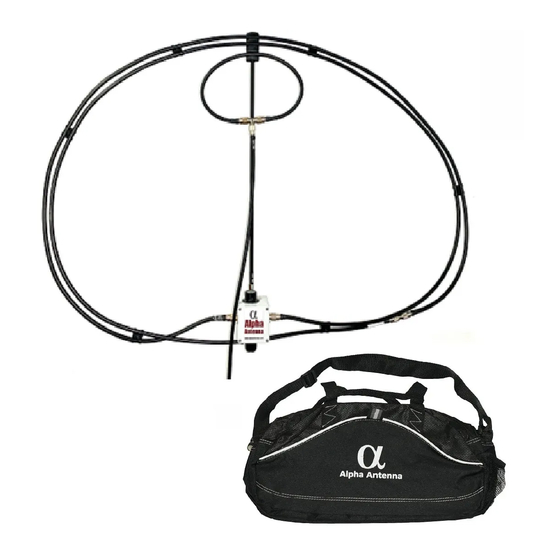

Antenna Diagram The major components of the antenna, and their relative positions, are depicted in Figure 1. Figure 1 Page 5... -
Page 6: Antenna Parts List
Antenna Operation The Alpha QRP Loop antenna has a built in tuning knob on the Alpha Match. It is with this black knob that you tune the antenna to the lowest SWR of 2:1 or less 10-40 meters. NOTE – It is easier to match and learn to tune the loop on 40 meters. - Page 7 a. The capacitor can turn past 360 degrees without damaging any component. 2) Now connect and power on your antenna analyzer and set your analyzer to the frequency you would like to operate. 3) Fine tune the Alpha Match with the black knob till the SWR meter on your analyzer is as low as possible.
-
Page 8: Support Contacts
Support Contacts Email: support@alphaantenna.com - Phone: 1-888-482-3249 NOTES: Page 8...
