Alpha Antenna MOTO Sr User Manual

Alpha Antenna MOTO Sr User Manual

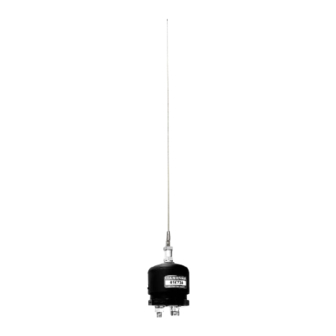

6-40 meter tunable on 60-80 meters 500 watt mobile antenna

Advertisement

Quick Links

Alpha Antenna
Model ‐ MOTO Sr
6‐40 Meter tunable on 60-80 Meters
500 Watt
Mobile Antenna
USER GUIDE
V1.1
February 6, 2013
Page 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the MOTO Sr and is the answer not in the manual?

Questions and answers

Summary of Contents for Alpha Antenna MOTO Sr

  • Page 1 Alpha Antenna Model ‐ MOTO Sr 6‐40 Meter tunable on 60-80 Meters 500 Watt Mobile Antenna USER GUIDE V1.1 February 6, 2013 Page 1...
  • Page 2 Introduction Thank you for purchasing the MOTO by Alpha Antenna, a complete 500 Watt complete mobile system including antenna, matching network, & stainless steel spring for Emergency Response Vehicles, Daily Commercial Fleets, Military, and Amateur Mobile Operators. Extremely Durable whip antenna system that includes a standard 24x3/8 stud you attach to your mount with an included 24x2/8 stainless steel nut, which you then simply attach your coax to.
  • Page 3 Installation Safety WARNING: INSTALLATION OF THIS PRODUCT NEAR POWER LINES IS DANGEROUS! FOR YOUR SAFETY, FOLLOW THE ENCLOSED INSTALLATION DIRECTIONS. THOUGH THIS ANTENNA IS CONSTRUCTED OF INSULATED WIRE, PROPER CARE MUST BE TAKEN DURING INSTALLATION. INSTALLER ASSUMES ALL LIABILITY FOR PROPERTY AND LIFE SAFETY. YOU, YOUR ANTENNA, AND SAFETY Each year, hundreds of people are killed, mutilated, or receive severe and permanent injuries when attempting to install an antenna.
  • Page 4 Antenna Installation Step 1 – Install your mount to a stable metal part of your vehicle. We recommend our stainless steel Alpha Antenna Jam Mount. Step 2 – Ensure that the stainless steel whip is screwed into the stainless steel spring on the Alpha...
  • Page 5 SWR Performance SWR Readings per Band BAND 1.4:1 6 Meters 6.8:1 10 Meters 6.7:1 12 Meters 5.6:1 15 Meters 4.4:1 17 Meters 4.6:1 20 Meters 4.5:1 30 Meters 4.8:1 40 Meters 5.7:1 60 Meters 7.5:1 80 Meters Page 5...
  • Page 6 Have Other Questions? If you have questions about your antenna, please feel free to contact us. Support Email: support@alphaantenna.com Phone: 1‐888‐482‐3249 WEB: www.alphaantenna.com Page 6...
  • Page 7 Notes: Page 7...
  • Page 8 Copyright Alpha Antenna http://www.AlphaAntenna.com Page 8...
