Model –
HexTenna™
User Guide, Version 3.2, July 23, 2019

Operation

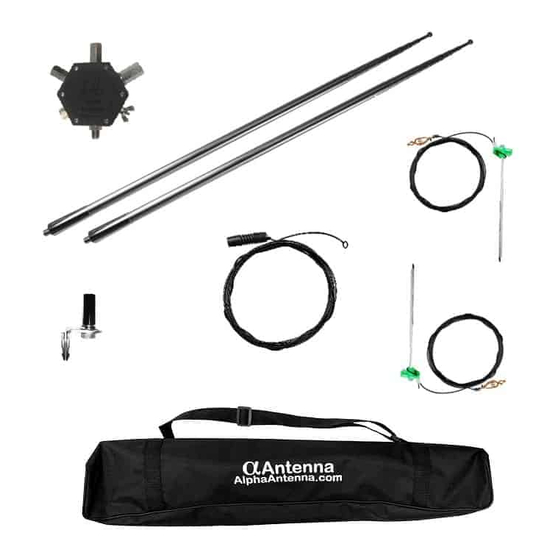

The HexTenna™ by Alpha Antenna® is a portable full-sized legal limit antenna, which is deployable as a
UHF/VHF/HF Vertical/Dipole antenna or a 2-20 meter Yagi if purchased.
Please feel free to email us at
alphaantenna@gmail.com if you have any questions.

Excess RF Exposure Warning

In the United States, the Federal Communications Commission has established guidelines for human exposure
to Radio Frequency (RF) electromagnetic fields. The commission's requirements are detailed in parts 1 & 2 of
the FCC's rules and regulations {47 CFR, 1.1307(b), 1.1310, 22.1091, 2.1093}. It is the responsibility of the
owner/operator of this device to follow all applicable warnings and precautions regarding human exposure to
RF fields. Additional references: http://www.arrl.org/rf-exposure

Yagi Assembly, if purchased

Dipole Assembly
Vertical Assembly
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HexTenna and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Alpha Antenna HexTenna

  • Page 1 User Guide, Version 3.2, July 23, 2019 Operation The HexTenna™ by Alpha Antenna® is a portable full-sized legal limit antenna, which is deployable as a UHF/VHF/HF Vertical/Dipole antenna or a 2-20 meter Yagi if purchased. Please feel free to email us at alphaantenna@gmail.com if you have any questions.
  • Page 2 4 feet 9 inches (1.45M * As a Yagi, Alpha Antenna does not support 30 or 40 meters on the HexTenna™. When deployed as a Dipole, tuning on 30/40 meters is achieved on the Dipole after the wire elements are installed, by equally retracting each element till resonance is achieved.
