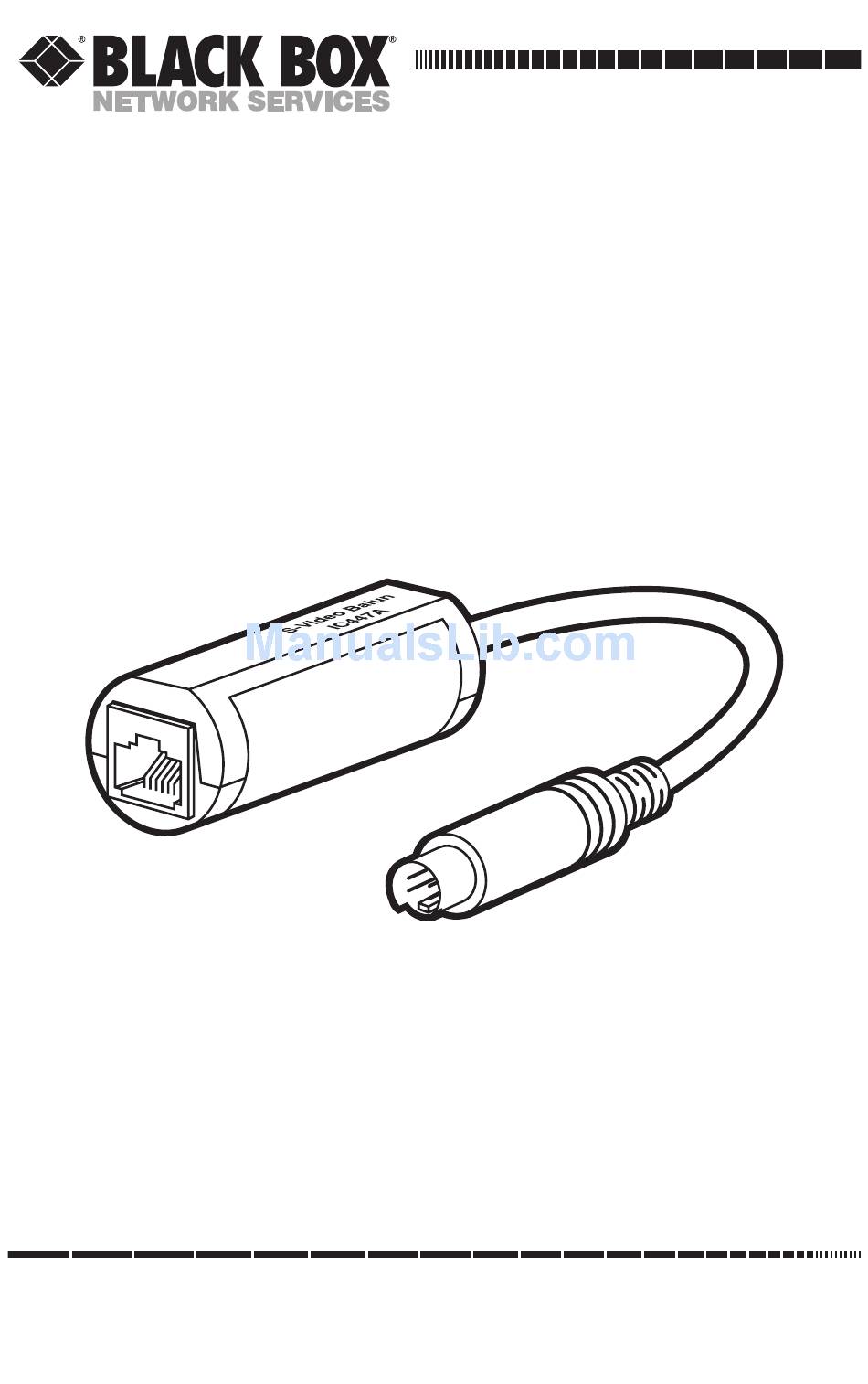

DECEMBER 2002
IC447A
S-Video Balun
CUSTOMER
Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500)
SUPPORT
FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746
INFORMATION
Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018
Web site: www.blackbox.com • E-mail: info@blackbox.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the IC447A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Black Box IC447A

Summary of Contents for Black Box IC447A

  • Page 1 Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500) SUPPORT FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746 INFORMATION Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018 Web site: www.blackbox.com • E-mail: info@blackbox.com...
  • Page 2 B prescrites dans le Règlement sur le brouillage radioélectrique publié par Industrie Canada. TRADEMARKS USED IN THIS MANUAL BLACK BOX and the logo are registered trademarks of Black Box Corporation. Any other trademarks mentioned in this manual are acknowledged to be the property of the trademark owners.
  • Page 3 S-VIDEO BALUN NORMAS OFICIALES MEXICANAS (NOM) ELECTRICAL SAFETY STATEMENT INSTRUCCIONES DE SEGURIDAD 1. Todas las instrucciones de seguridad y operación deberán ser leídas antes de que el aparato eléctrico sea operado. 2. Las instrucciones de seguridad y operación deberán ser guardadas para referencia futura.
  • Page 4 NOM STATEMENT 12. Precaución debe ser tomada de tal manera que la tierra fisica y la polarización del equipo no sea eliminada. 13. Los cables de la fuente de poder deben ser guiados de tal manera que no sean pisados ni pellizcados por objetos colocados sobre o contra ellos, poniendo particular atención a los contactos y receptáculos donde salen del aparato.

  • Page 5: Table Of Contents

    Contents Chapter Page 1. Specifications ..................... 5 2. Introduction ....................7 3. Installation ....................8 4. Troubleshooting ..................10 4.1 Things to Try If Problems Occur ............. 10 4.2 Calling Black Box ................11 4.3 Shipping and Packaging ..............11...

  • Page 6: Specifications

    CHAPTER 1: Specifications 1. Specifications Between balun pairs: Unshielded twisted pair (UTP): Cable Required: Construction standard: Category 5; Gauge: 24 AWG or lower; Core: Solid; Termination: RJ-45 plugs; Pairs: 2 or more (4 wires used); Impedance: 100 ohms at 1 MHz; Maximum capacitance: 20 pF/ft.
  • Page 7 S-VIDEO BALUN 4 (C/chrominance ring), 5 (C/chrominance tip), RJ-45 Pins Used: 7 (Y/luminance ring), and 8 (Y/luminance tip); polarity- sensitive (not autosensing or autocorrecting) Temperature Tolerance: Operating: 32 to 131˚F (0 to 55˚C); Storage: -4 to +185˚F (-20 to +85˚C) Humidity Tolerance: Up to 95% noncondensing...

  • Page 8: Introduction

    CHAPTER 2: Introduction 2. Introduction With pairs of S-Video Baluns, you can transmit a single S-Video signal point-to- point across Category 5 unshielded twisted-pair (UTP) cable, which is already wired into most commercial sites. The balun near the video source takes a single S-Video signal from the source, converts it, and transmits it over UTP cable to the other balun, which outputs it to its destination.

  • Page 9: Installation

    S-VIDEO BALUN 3. Installation To install a pair of S-Video Baluns, follow the steps below. CAUTION! Do not attempt to open the housings of the S-Video Baluns. There are no user-serviceable parts inside. 1. Make sure that the video-destination device is not too far away from the video- source device (refer to the Maximum Distance specification in Chapter 1).
  • Page 10 CHAPTER 3: Installation 6. Connect one end of a UTP cable to each balun’s RJ-45 modular jack, as shown in Figure 3-1. These cables must carry at least two wire pairs; these wires must be on RJ-45 Pins 4 (C/chrominance ring), 5 (C/chrominance tip), 7 (Y/luminance ring), and 8 (Y/luminance tip).

  • Page 11: Troubleshooting

    If at any point the problem goes away, there is probably a defect in the balun you just replaced. 6. If you still cannot diagnose the problem, call Black Box for technical support as described in the next section.

  • Page 12: Calling Black Box

    If you need to transport or ship your S-Video Balun: • Package it carefully. We recommend that you use the original container. • If you ever ship the balun back to us for any reason, contact Black Box to get a Return Authorization (RA) number.
  • Page 13 Doc. No. 94-000340-A © Copyright 2002. Black Box Corporation. All rights reserved. 1000 Park Drive • Lawrence, PA 15055-1018 • 724-746-5500 • Fax 724-746-0746...
