Black Box Quad Audio Balun Installation Manual

Specifications

Environment Unbalanced line-level analog audio.
Devices DVD players, audio receivers, audio amplifiers and audio
mixers, audio matrix switchers and other unbalanced line-level
audio equipment.
Transmission Transparent to the user.
Bandwidth (3dB Up to 1,000 ft (305m): 60Hz - 20 kHz
roll-off point)
1,000 ft (305m) to 5,000 ft (1.5 km): 100Hz - 20 kHz
(400 O source & 50
kO receiver)
Maximum Input 1.1Vp-p (+20 dBu, unbalanced < 1% THD)
Level
Insertion Loss per Less than 1 dB per pair over the frequency range
Balun Pair
Common Mode Greater than 60 dB @ 1 kHz
Rejection (CMMR)
Audio Source 100 to 600 O
Impedance
Audio Receiver 10 kO to 100 kO
Impedance
Impedance Single unit: 4:1 (source:line)
Transformation
Ratio
Cable – UTP 24 gauge or lower solid copper twisted pair wire impedance:
100 ohms at 1 MHz. Maximum capacitance: 20 pf/foot.
Attenuation: 6.6 dB/1000 ft at 1 MHz
Cable - Coax 75-ohm coaxial cable
Connectors Four (4) RCA-receptacle for audio.

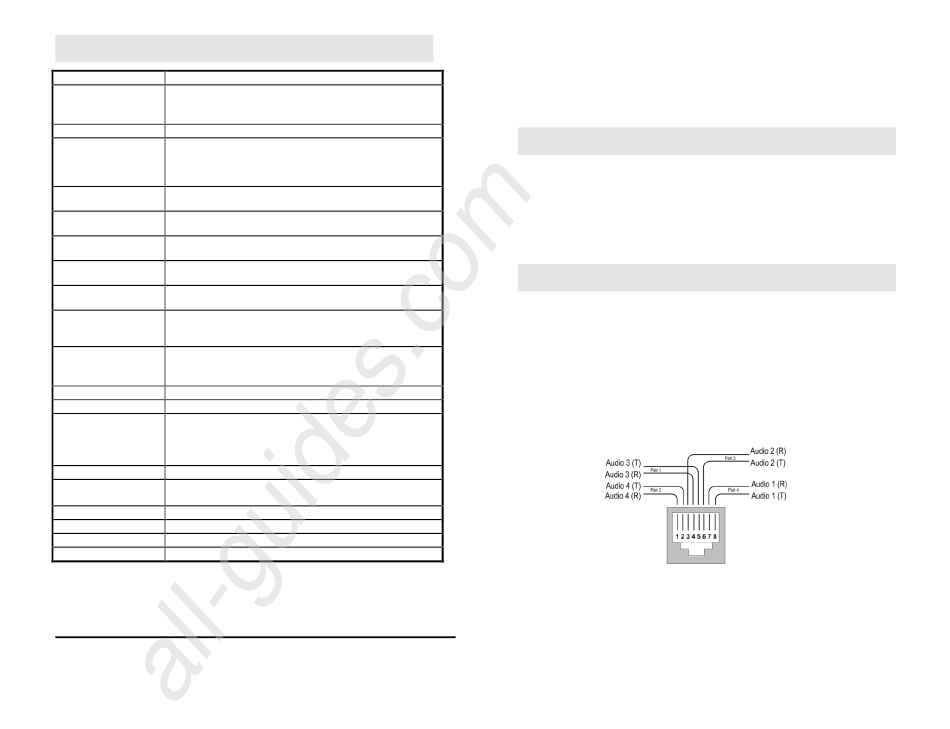

Pin Configuration Audio 1: Pins 7 (R) & 8 (T)
(T)
Audio 3: Pins 4 (R) & 5 (T)
(T)
Impedance Video: 75 ohms (RCA) unbalanced.
Temperature Operating: 0 to 55 C. Storage:-20 to 85 C. Humidity: up to
95%
Enclosure Fire retardant plastic
Dimensions 2.40" x 2.25" x 1.00" (6.1 x 5.7 x 2.54 cm)
Warranty Lifetime
Order Information IC565A
94-000386-A
All manuals and user guides at all-guides.com
One (1) RJ45 jack
Audio 2. Pins 3 (R) & 6
Audio 4: Pins 1 (R) & 2
Quad Audio Balun
SE-000417-A
Quad Audio Balun (IC565A)
Installation Guide
Introduction
The Quad Audio Balun allows up to four (4) analog line audio signals to be transmitted
via unshielded twisted pair (UTP) cable in a point-to-point connection. Used in pairs,
the Quad Audio Balun eliminates up to four (4) coaxial cables, allowing audio-video
equipment to be connected via space-efficient and cost-effective Category 5 twisted pair
cable. The Quad Audio Balun also works in conjunction with other Black Box analog
audio baluns such as the IC460A.
Installation
One (1) pair of baluns support four (4) mono unbalanced analog audio channels or two (2)
stereo audio channels via Cat5 twisted pair. To install the baluns, perform the following
steps:
1. Identify the pin configuration of the baluns. Four (4) twisted pairs are required
if all four (4) signals are transmitted. The pin configuration follows the
EIA/TIA 568A/B standard. The Quad Audio Balun is reverse polarity
sensitive. Please ensure that wiring is straight-through (Ring to Ring, Tip to
Tip).
2. At the audio source end, connect a Quad Audio Balun to the audio output using
the appropriate number of RCA cables.
3. At the audio receiver end, connect a Quad Audio Balun to the audio input using
the appropriate number of RCA cables.
