Black Box IC564A Installation Manual

Specifications

Environment Composite video. NTSC, PAL, SECAM. Component video
(480i/p)
Devices DVD players, cable boxes, video distribution amplifiers, security
video cameras, digital video recorders and other composite
video equipment.
Transmission Transparent to the user.
Bandwidth Video: DC to 8 MHz.
Maximum Video 1.1Vp-p
Input
Insertion Loss Less than 2 dB per pair over the frequency range from DC to
8 MHz
Return Loss Greater than 15 dB over the frequency range from DC to 8
MHz
Common Mode Greater than 40 dB @ 8 MHz
Rejection Ratio
Max. Distance – Composite video: 2,200 ft. Less distance may result with DVR
Cat5 UTP equipment
Component video (YPbPr): 500 ft (152 m) (480i/p only).
Cable – UTP 24 gauge or lower solid copper twisted pair wire impedance: 100
ohms at 1 MHz. Maximum capacitance: 20 pf/foot. Attenuation:
6.6 dB/1000 ft at 1 MHz
Cable - Coax 75-ohm coaxial cable
Connectors IC564A: Four (4) RCA-receptacle for video.
jack
IC567A: Four (4) BNC-receptacle for video.
jack

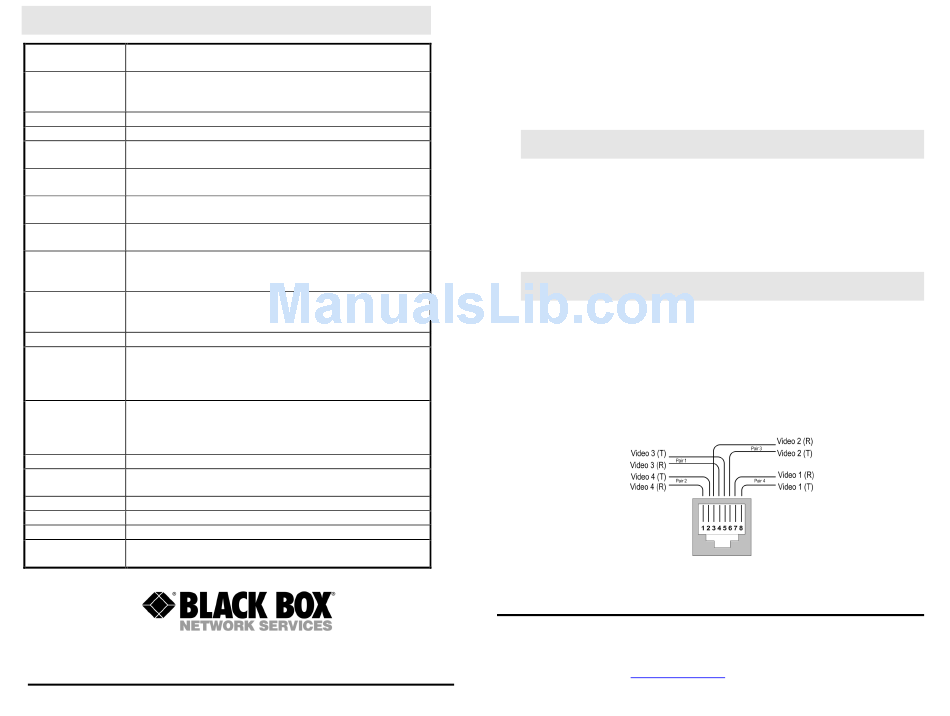

Pin Video 1: Pins 7 (R) & 8 (T)
Configuration (T)
Video 3: Pins 4 (R) & 5 (T)
(T)
Impedance Video: 75 ohms (RCA or BNC) unbalanced.
Temperature Operating: 0 to 55 C. Storage:-20 to 85 C. Humidity: up to
95%
Enclosure Fire retardant plastic
Dimensions 2.40" x 2.25" x 1.00" (6.1 x 5.7 x 2.54 cm)
Warranty Lifetime
Order IC564A
Information IC567A
© Copyright 2006. Black Box Corporation. All rights reserved
(BB)94-000385-B
One (1) RJ45
One (1) RJ45
Video 2. Pins 3 (R) & 6
Video 4: Pins 1 (R) & 2
Quad Video Balun, RCA
Quad Video Balun, BNC
(BB)SE-000416-B
Quad Video Balun, RCA (IC564A)
Quad Video Balun - BNC (IC567A)
Installation Guide
Introduction
The Quad Video Baluns allows up to four (4) composite video signals to be
transmitted via unshielded twisted pair (UTP) cable in a point-to-point connection.
Used in pairs, the Quad Video Balun eliminates up to four (4) coaxial cables, allowing
audio-video equipment to be connected via space-efficient and cost-effective
Category 5 twisted pair cable. The Quad Video Balun also works in conjunction with
other Black Box composite video baluns such as the IC440A and IC444A.
Installation
One (1) pair of baluns support four (4) composite video signals or one (1) component
video (YPbPr) and one (1) composite video signal via Cat5 twisted pair. To install the
baluns, perform the following steps:
1. Identify the pin configuration of the baluns. Four (4) twisted pairs are required
if all four (4) signals are transmitted. The pin configuration follows the EIA/TIA
568A/B standard. The Quad Video Balun is reverse polarity sensitive. Please
ensure that wiring is straight-through (Ring to Ring, Tip to Tip).
2. At the video source end, connect a Quad Video Balun to the video output using
the appropriate number of RCA or BNC-terminated cables.
