Fisher 1066 Instruction Manual

Type 1066 With H Mounting
Fisher Controls
Instruction Manual
Type 1066 on-off
Piston Rotary Actuator
With H Mounting
Adaptation
April 1984
Form5231
Introduction
Scope of Manual
This instruction manusl provides installation. operatIm
maintenanca, and parts ordering information for the Type
1066 orroff piston rotary actuator with H mounting (see
figure 1). Instructions for accessories are included in
separate instruction manuals.
Description
The Type 1066 piston rotary actuator Is doubleacting
pneumatically operated, and is normally used for on-off
applications. This actuator is field-reversible between
pusbdown4@close and push-down-to-open actuator
action of the operated equipment,
The H mounting adaptation penits the actuator to be
used with uset-provided mounting brackets and
couplings for rotary actuation of equipment other than
Fishervalve bodies. This mounting adaptation includes a
flat mounting-surface that is drilled and tapped for
attaching the user-provided bracket. Cap screws for
attaching the bracket are provided. H mounting also
includes an output shaft (with milled flats) to provide
rotary output either directly or through a user-provided
coupling. Dimensional information for the mounting
surface and the output shaft are shown in figure 3.
Specifications
Specifications are shown in table 1 fw Type 1066
actuators Some specifications for a given actuator as it
originally comes from the factory are stamped on a
nameplate (figure 2) attached to the actuator.
L

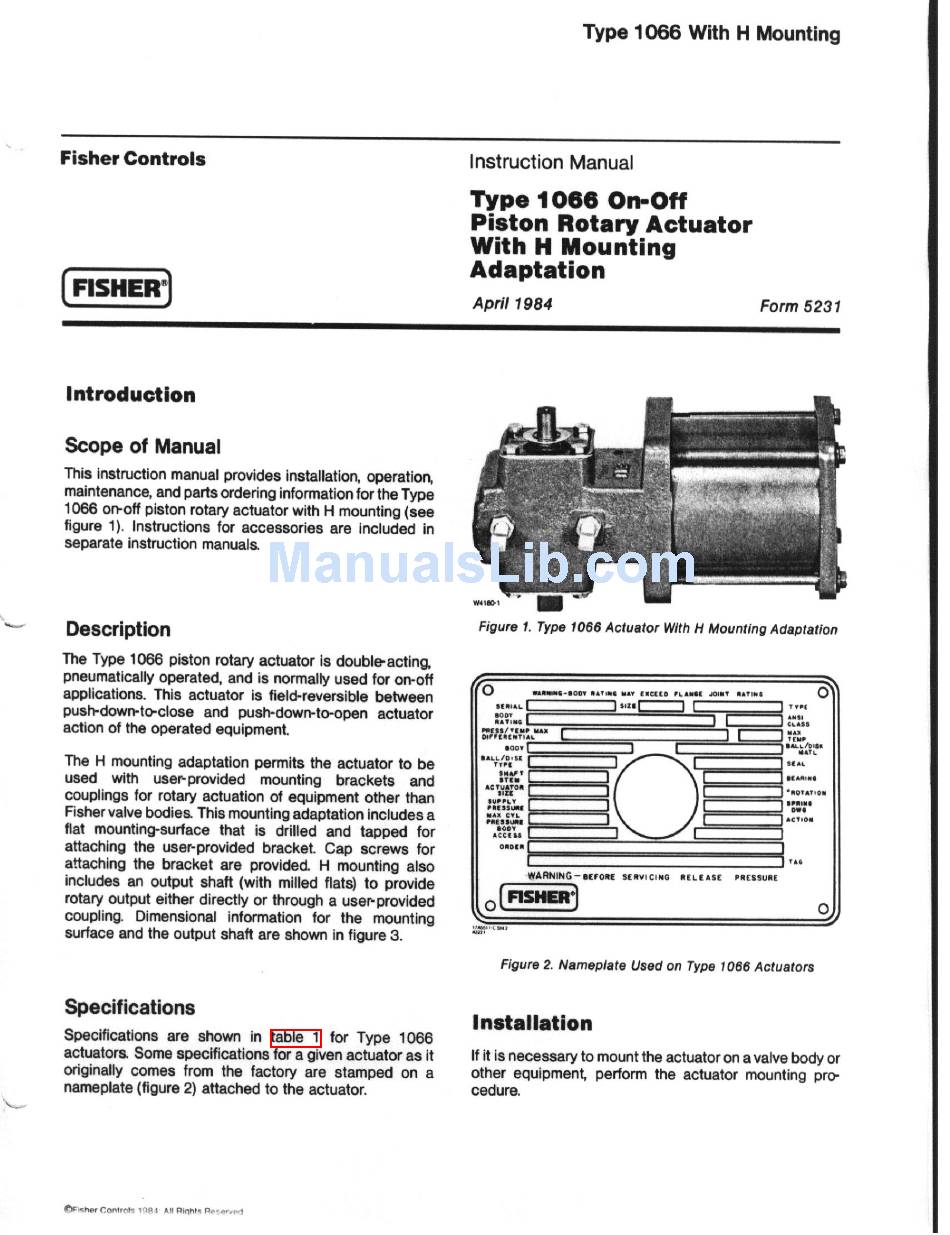

Figure 1. Type 1066 Actuator With H Mounting Adaptation
Installation
If it is necessary to mount the actuator on a valve body or
other equipment, perform the actuator mounting pro
cedure.
