Summary of Contents for Moxa Technologies AirWorks AWK-3131-M12-RCC
-

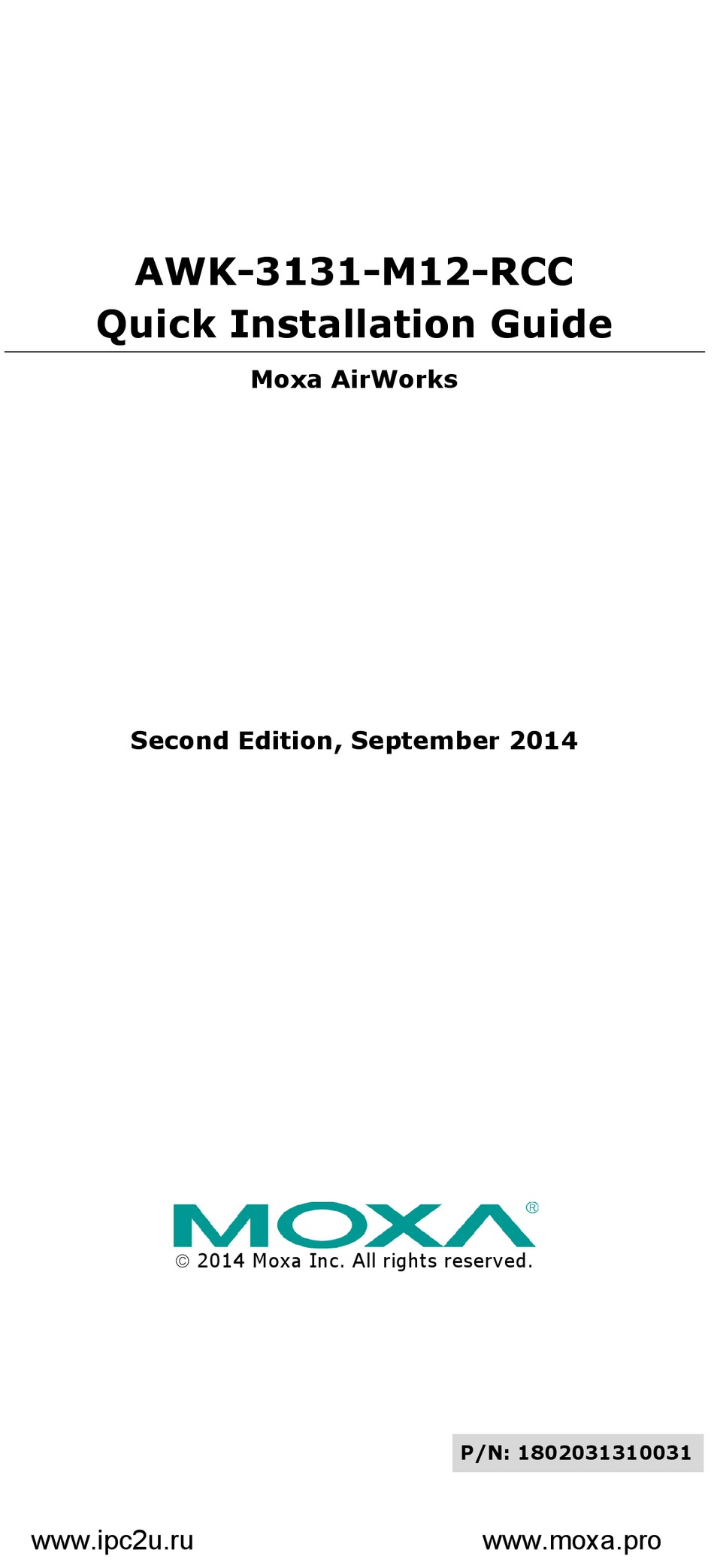

Page 1: Quick Installation Guide
AWK-3131-M12-RCC Quick Installation Guide Moxa AirWorks Second Edition, September 2014 2014 Moxa Inc. All rights reserved. P/N: 1802031310031 www.ipc2u.ru www.moxa.pro... -
Page 2: Package Checklist
Overview Moxa’s new AWK-3131-M12-RCC is a 3-in-1 industrial AP/bridge/client device designed specifically for rail carriage-to-carriage communication and can provide up to 300 Mbps with IEEE 802.11n technology. The AWK-3131-M12-RCC combines two adjacent 20 MHz channels into a single 40 MHz channel to deliver a potent combination of greater reliability and more bandwidth. - Page 3 Step 3: Set up the computer’s IP address Set an IP address on the same subnet as the AWK-3131-M12-RCC. Since the AWK-3131-M12-RCC’s default IP address is 192.168.127.253, and the subnet mask is 255.255.255.0, you should set the IP address of the computer to 192.168.127.xxx and subnet mask to 255.255.255.0.

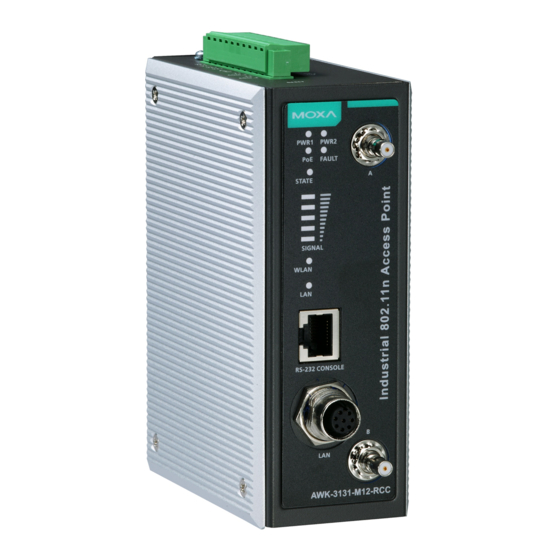

- Page 4 Panel Layout of the AWK-3131-M12-RCC 1. Grounding screw (M3) 2. Terminal block for PWR1, PWR2, relay, DI1, and DI2 3. Reset button 4. A antenna connector 5. B antenna connector 6. System LEDs: PWR1, PWR2, PoE, FAULT, and STATE 7. Signal strength indicator 8.
-
Page 5: Mounting Dimensions (Unit = Mm)
Mounting Dimensions (unit = mm) DIN-Rail Mounting The aluminum DIN-Rail attachment plate should be fixed to the back panel of the AWK-3131-M12-RCC when you take it out of the box. If you need to reattach the DIN-Rail attachment plate to the AWK-3131-M12-RCC, make sure the stiff metal spring is situated towards the top, as shown in the figures below. -
Page 6: Wall Mounting (Optional)
Wall Mounting (optional) For transportation applications that require an EN 50155 certification report, we strongly recommend the purchase of the optional AWK-3131-M12-RCC wallmount kit, which has passed EN 50155 testing. This wallmount kit is also convenient for other applications that require mounting the AWK-3131-M12-RCC to a wall. -
Page 7: Wiring Requirements
WARNING • This equipment is intended to be used in a Restricted Access Location, such as a dedicated computer room. Access can only be gained by SERVICE PERSONS or by USERS who have been instructed about the fact that the metal chassis of the equipment is extremely hot and may cause burns. -
Page 8: Wiring The Redundant Power Inputs
ATTENTION This product is intended to be supplied by a Listed Power Unit marked “Class 2” or “LPS” and rated O/P: 12 to 48 VDC, minimum 6 W (12 V to 48V), 25°C. ATTENTION Make sure the external power adaptor (includes power cords and plug assemblies) provided with the unit is certified and suitable for use in your country. -
Page 9: Wiring The Relay Contact
ATTENTION Before connecting the AWK-3131-M12-RCC to the DC power inputs, make sure the DC power source voltage is stable. Wiring the Relay Contact The AWK-3131-M12-RCC has one relay output, which consists of the two contacts of the terminal block on the AWK-3131-M12-RCC’s top panel. Refer to the previous section for detailed instructions on how to connect the wires to the terminal block connector, and how to attach the terminal block connector to the terminal block receptor. -
Page 10: Communication Connections
Communication Connections 10/100/1000BaseT(X) Ethernet Port Connection All AWK-3131-M12-RCCs have a 10/100/1000BaseT(X) Ethernet port (8-pin shielded M12 connector with A coding). The 10/100/1000TX port located on the AWK-3131-M12-RCC front panel is used to connect to Ethernet-enabled devices. Most users configure this port for Auto MDI/MDI-X mode, in which case the port’s pinouts are adjusted automatically depending on the type of Ethernet cable used (straight-through or cross-over), and the type of device (NIC-type or... -
Page 11: Reset Button
ATTENTION For railway rolling stock applications, AWK-3131-M12-RCC devices must use a galvanically isolated power supply that is compliant with the EN 50155 standard. Reset Button The RESET button is located on the top panel of the AWK-3131-RCC. You can reboot the AWK-3131-M12-RCC or reset it to factory default settings by pressing the RESET button with a pointed object such as an unfolded paper clip. -
Page 12: Specifications
Color State Description Front Panel LED Indicators (System) Amber LAN port’s 10/100 Mbps link is active. Amber Data is being transmitted at 10/100 Mbps Blink Amber LAN port’s 10/100 Mbps link is inactive Green/ Amber Green LAN port’s 1000 Mbps link is active. Green Data is being transmitted at 1000 Mbps Blink... - Page 13 TX Transmit Power 802.11b: 1 to 11 Mbps: Typ. 18 dBm (± 1.5 dBm) 802.11g: 6 to 24 Mbps: Typ. 18 dBm (± 1.5 dBm) 36 to 48 Mbps: Typ. 17 dBm (± 1.5 dBm) 54 Mbps: Typ. 15 dBm (± 1.5 dBm) 802.11a: 6 to 24 Mbps: Typ.
-
Page 14: Physical Characteristics
Physical Characteristics Housing Metal, providing IP30 protection Weight 970 g Dimensions 53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in) Installation DIN-rail mounting (standard), wall mounting (optional kit) Environmental Limits Operating Standard Models: -25 to 60°C (-13 to 140°F) Temperature Wide Temp. - Page 15 Technical Support Contact Information www.moxa.com/support Moxa Americas: Moxa China (Shanghai office): Toll-free: 1-888-669-2872 Toll-free: 800-820-5036 Tel: +1-714-528-6777 Tel: +86-21-5258-9955 Fax: +1-714-528-6778 Fax: +86-21-5258-5505 Moxa Europe: Moxa Asia-Pacific: Tel: +49-89-3 70 03 99-0 Tel: +886-2-8919-1230 Fax: +49-89-3 70 03 99-99 Fax: +886-2-8919-1231 - 15 - www.ipc2u.ru...
