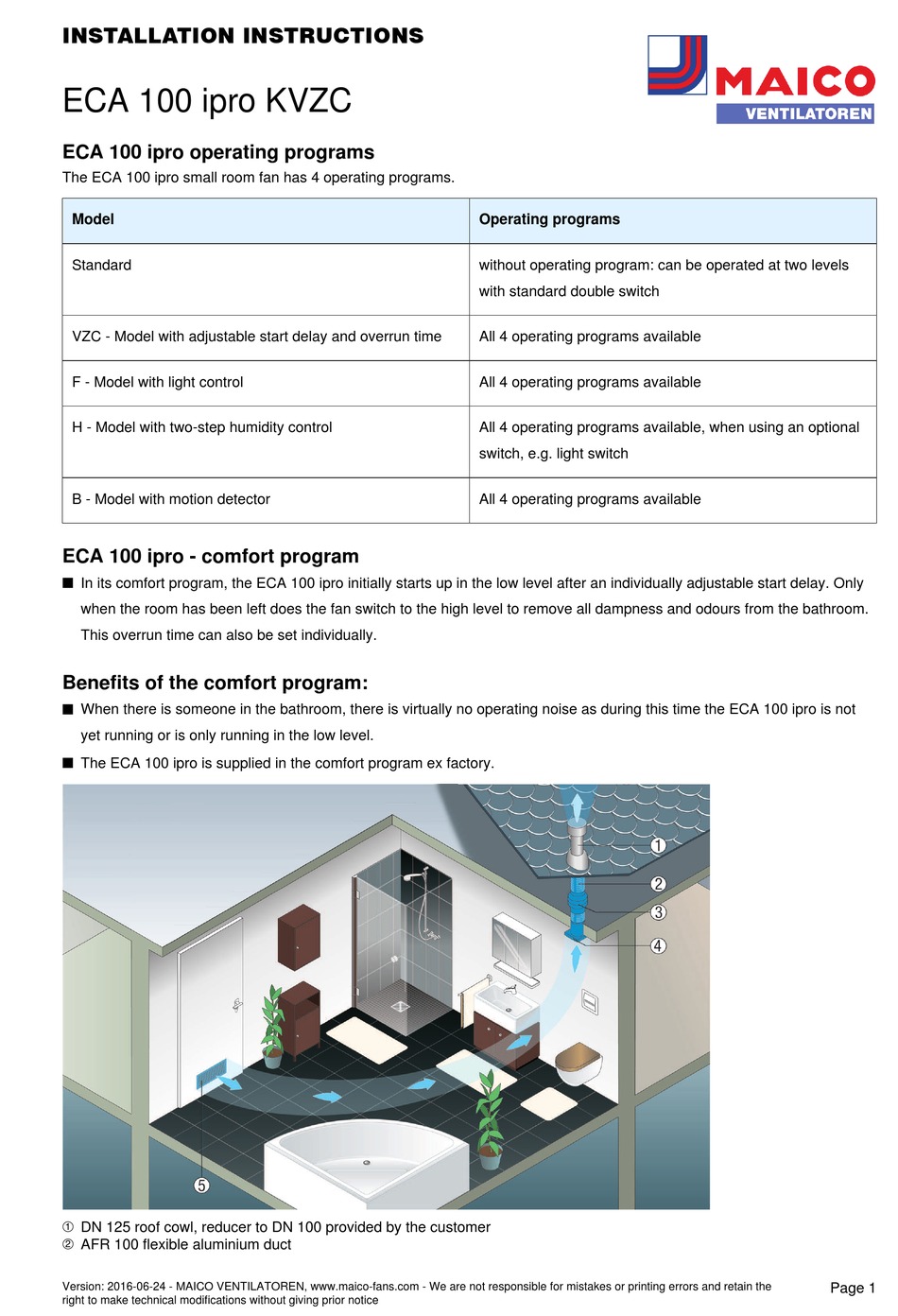

INSTALLATION INSTRUCTIONS

ECA 100 ipro KVZC
ECA 100 ipro operating programs
The ECA 100 ipro small room fan has 4 operating programs.
Model
Standard
VZC - Model with adjustable start delay and overrun time
F - Model with light control
H - Model with two-step humidity control
B - Model with motion detector
ECA 100 ipro - comfort program
In its comfort program, the ECA 100 ipro initially starts up in the low level after an individually adjustable start delay. Only
when the room has been left does the fan switch to the high level to remove all dampness and odours from the bathroom.
This overrun time can also be set individually.
Benefits of the comfort program:
When there is someone in the bathroom, there is virtually no operating noise as during this time the ECA 100 ipro is not
yet running or is only running in the low level.
The ECA 100 ipro is supplied in the comfort program ex factory.
1 DN 125 roof cowl, reducer to DN 100 provided by the customer
2 AFR 100 flexible aluminium duct
Version: 2016-06-24 - MAICO VENTILATOREN, www.maico-fans.com - We are not responsible for mistakes or printing errors and retain the
right to make technical modifications without giving prior notice
Operating programs
without operating program: can be operated at two levels
with standard double switch
All 4 operating programs available
All 4 operating programs available
All 4 operating programs available, when using an optional
switch, e.g. light switch
All 4 operating programs available
