LEICA SPRINTER Quick Guide

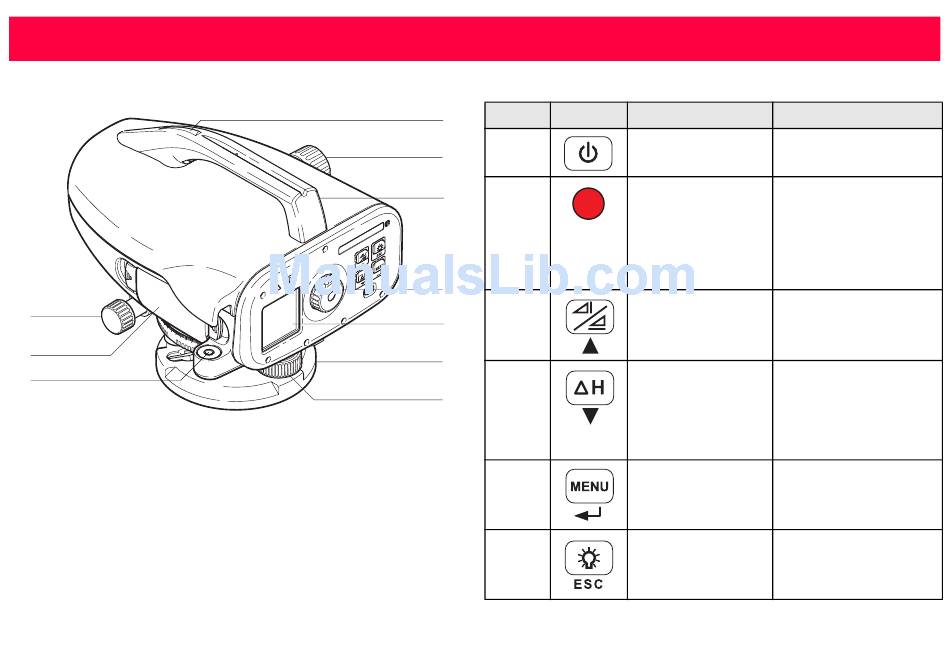

Instrument Components

a
b
c
Sprinter_01
a) Horizontal fine motion screw
b) Battery compartment
c)
Circular level
d) Gunsight
e) Focusing knob
f)
Handle
g) Eyepiece
h) LCD display
i)
Base plate
j)
Levelling footscrew

Operating Keys and Functions

Key
Symbol 1
d
On/Off
e
MEAS
f
g
Height
h
/ Dist.
i
dH
j
MENU
Back-
light
*) when in Menu mode
st
nd
level funct.
2
level funct.
Power On/Off
NONE
switch
Measuring
2nd function
trigger key for
(Continuous meas-
measuring
urement) with
height and
prolong key press of
distance
2 seconds
Alternating bet-
Cursor up *
ween Height and
Distance display
Height Differ-
Cursor down *
ence measure-
ment and RL
computation
Activation and
ENTER key for
selection of
confirmation
settings
purpose *
LCD backlight
ESC key for termi-
illumination
nation of program or
setting *
English

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SPRINTER 200M and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Leica SPRINTER 200M

  • Page 1: Instrument Components

    LEICA SPRINTER Quick Guide English Instrument Components Operating Keys and Functions Symbol 1 level funct. level funct. On/Off Power On/Off NONE switch MEAS Measuring 2nd function trigger key for (Continuous meas- measuring urement) with height and prolong key press of...
  • Page 2 Step Description Measurement Mode MEAS Press to switch on the instrument, MENU selection Mode Leica logo is displayed follow by the MENU default measurement standby mode. Adjustment Mode Aim at staff and focus. Lightly trigger Tracking Mode the measurement key to activate Icons measurement.
  • Page 3 Reduced level, Height difference, Height and Distance measurement Step Key Description Press to start height difference and reduced level function. Press, choose Input RL to change/input desired reference/benchmark level. Press to complete input. Aim at reference staff press key to initiate measurement. Reference height &...
  • Page 4 None, Odd, Even Stop Bit 1, 2 Data Bit 7, 8 *) Applicable to SPRINTER 100M/200M only 740359-1.1.0en • Leica Geosystems AG • CH-9435 Heerbrugg (Switzerland) • Phone +41 71 727 31 31 • Fax +41 71 727 46 73 • www.leica-geosystems.com...
