Version 1.0
English
Leica iCON gps 60
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iCON gps 60 and is the answer not in the manual?

Questions and answers

Dillan Forrest
January 27, 2025

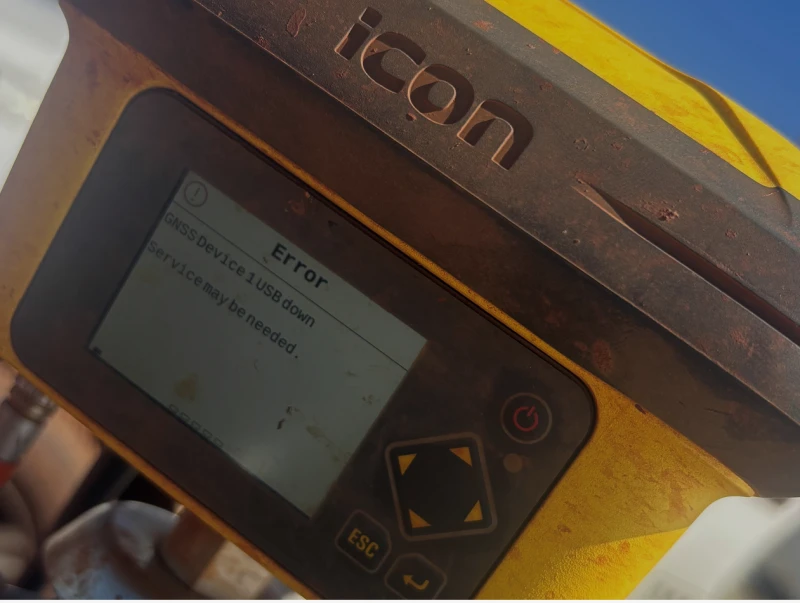

my gps isnt picking up any satellites and is coming up with an error that says (GNSS Device1 USB down) service may be needed.

User image 679707293a6a8
1
1 comments:
Mr. Anderson
February 10, 2025

Your Leica iCON GPS 60 may not be picking up satellites and showing the error "GNSS Device1 USB down" due to the following reasons:

1. Obstructed View: Ensure the receiver is in an open area with a clear sky view to track satellites properly.
2. Incorrect Setup: Verify that the tripod, mount, and tribrach are properly leveled and centered over the marker.
3. Connection Issues: Check that the GEV269 cable is correctly connected from Port 1 to the computer’s USB port.
4. Power Issues: Confirm that the antenna is turned on and receiving power.
5. GNSS Device Not Detected: The error suggests that the USB connection to the GNSS device is down. Try reconnecting the USB cable or using a different port.
6. Hardware Malfunction: If the issue persists after checking connections and setup, the GNSS device may have a hardware failure.

Try these troubleshooting steps to resolve the issue.

This answer is automatically generated

0

Related Manuals for Leica iCON gps 60

Summary of Contents for Leica iCON gps 60

  • Page 1 Leica iCON gps 60 User Manual Version 1.0 English...
  • Page 2 The type and serial number of your product are indicated on the type plate. identification Enter the type and serial number in your manual and always refer to this information when you need to contact your agency or Leica Geosystems authorised service work- shop. Type: _______________ Serial No.:...
  • Page 3 Windows is a registered trademark of Microsoft Corporation in the United States and other countries • CompactFlash and CF are trademarks of SanDisk Corporation • Bluetooth is a registered trademark of Bluetooth SIG, Inc. All other trademarks are the property of their respective owners. iCON gps 60, Introduction...
  • Page 4 60, Introduction Validity of this This manual applies to the Leica iCON gps 60 SmartAntenna. manual Available Name Description/Format documentation  Leica iCON gps All instructions required in order to operate the product 60 User to a basic level are contained in the User Manual.
  • Page 5 DVD-ROM contents The Leica iCON DVD contains software and documentation specific to Leica iCON gps 60: Type Description Software System software Software language files Documentation Leica gps 60 User Manual Leica gps 60 System Field Manual myWorld@Leica Geosystems (https://myworld.leica-geosystems.com) offers a wide range of services, information and training material.
  • Page 6 View the service history of your products in Leica Geosystems Service Centers and detailed information on the services performed on your products. For your products that are currently in Leica Geosystems Service Centers view the current service status and the expected end date of service.

  • Page 7: Table Of Contents

    Table of Contents In this manual Chapter Page Unpacking the Container Leica iCON gps 60 Container Contents Compatible Field Controllers 1.2.1 iCON Series Field Software Overview Holder and Clamps for Field Controllers Using the iCON gps 60 SmartAntenna Installing the Internal Battery 2.1.1...

  • Page 8: Icon Gps 60, Table Of Contents

    60, Table of Contents Leica iCON gps 60 User Interface Main Menu 3.1.1 Navigation in Sub Menus 3.1.2 Available Sub Menus How to Change and Edit Values Software Tools Base Setup 4.1.1 Base Setup Functions 4.1.2 Raw Data Logging...
  • Page 9 Definition of Use Limits of Use Responsibilities Hazards of Use Electromagnetic Compatibility EMC FCC Statement, Applicable in U.S. Technical Data Technical Data iCON gps 60 Antenna 8.1.1 Tracking Characteristics 8.1.2 Accuracy Technical Data MNA1202 GG Antenna Pin Assignments and Sockets...
  • Page 10 60, Table of Contents International Limited Warranty, Software Licence Agreement Index...

  • Page 11: Unpacking The Container

    Unpacking the Container Leica iCON gps 60 Container Contents Description There are four different container configurations available to cover GNSS rover and reference setups. iCON gps 60, Unpacking the Container...
  • Page 12 60, Unpacking the Container CTC1 Container The large-size CTC1 container comprises all items for the rover setup. The content of upper shell the upper shell is the same for all available container configuration. GPS60_018 a) MNA1202 GG antenna...
  • Page 13 Radio antennas iCON gps 60 SmartAntenna d) AC-adapter for controller k) Spare stylus for CC60/CC61 e) GAD108 antenna arm Spare battery for CC60/CC61 USB flash drive m) CC60/CC61 g) Allen key n) QN/TNC adapter iCON gps 60, Unpacking the Container...
  • Page 14 60, Unpacking the Container CTC1 container Large-size CTC1 container configuration with iCON CC50 controller. lower shell - iCON CC50 GPS60_017 a) Tribrach h) Manuals and iCON DVD b) GEB221 battery Ball mount c) Radio antennas iCON gps 60 SmartAntenna...
  • Page 15 CTC2 container - The small-size CTC2 container comprises the iCON gps 60 SmartAntenna and its iCON gps 60 accessories.  The container can additionally hold a iCON CC50 controller with accessories. GPS60_015 iCON gps 60, Unpacking the Container...
  • Page 16 60, Unpacking the Container a) GEB221 battery b) Spare battery for CC50 h) AC-adapter c) Spare stylus for CC50 Cable set d) iCON DVD iCON gps 60 SmartAntenna e) QN/TNC adapter k) Manuals Storage space for CC50 USB flash drive...

  • Page 17: Compatible Field Controllers

    Compatible Field Controllers  About the The iCON gps 60 SmartAntenna can be used as a standalone device or in controllers combination with compatible controllers running iCON field software. CC50 upside a) SD-card slot b) Status LEDs c) Screen d) Keyboard...
  • Page 18 60, Unpacking the Container CC50 rear side a) Camera lens b) Stylus c) Hand strap clip d) Speaker e) Battery and SIM-card compartment GPS60_020 CC60/CC61 upside a) D-SUB 9 port b) USB host port for USB stick c) Screen...
  • Page 19 CC60/CC61 rear side a) Digital camera b) Battery compartment L c) SIM card slot d) Stylus e) Docking station contacts Battery compartment R CC_003 iCON gps 60, Unpacking the Container...

  • Page 20: Icon Series Field Software Overview

    60, Unpacking the Container 1.2.1 iCON Series Field Software Overview iCON Site software - Refer to the iCON Site software on the main menu at a iCON DVD. glance...
  • Page 21 Refer to the iCON Build software on the iCON Build soft- iCON DVD. ware - main menu at a glance iCON gps 60, Unpacking the Container...

  • Page 22: Holder And Clamps For Field Controllers

    60, Unpacking the Container Holder and Clamps for Field Controllers Holder for iCON CC50 GPS60_008 Clamp: a) Pole clamp b) Tighening screw c) Unlocking bolt Holder: d) Mounting pin e) Positioning pin Instrument holder g) Tightening screw...
  • Page 23 Holder for iCON CC60/CC61 GPS60_007 Holder: a) Upper holder (fixed) b) Lower holder (extendable) c) Fixation screws (size adjustment) d) Fixation screws (angle adjustment) Clamp: e) Pole clamp Unlocking bolt g) Tightening screw iCON gps 60, Unpacking the Container...

  • Page 24: Using The Icon Gps 60 Smartantenna Installing The Internal Battery

    60, Using the iCON gps 60 SmartAntenna Using the iCON gps 60 SmartAntenna Installing the Internal Battery Insert and remove Follow the step-by-step instructions to install the internal battery. the battery  step-by-step To remove the battery, first place the instrument on a stable surface. Then follow the following instructions in reverse.
  • Page 25 Insert the battery into the holder. Check that the battery is locked in! Push the holder with battery into the battery compartment. Close the battery compartment by pushing the slide fastener in the direc- tion of the arrow with the close-lock symbol. iCON gps 60, Using the iCON gps 60 SmartAntenna...

  • Page 26: General Battery Handling

    +10°C to +20°C/+50°F to +68°F if possible. • It is normal for the battery to become warm during charging. Using the chargers recommended by Leica Geosystems, it is not possible to charge the battery if the temperature is too high. •...

  • Page 27: Installing A Sim Card

    Follow the step-by-step instructions to install a SIM card. the SIM card  step-by-step To remove the SIM card place the instrument on a stable surface first. Then follow the following instructions in reverse order. GPS60_028 iCON gps 60, Using the iCON gps 60 SmartAntenna...
  • Page 28 60, Using the iCON gps 60 SmartAntenna  Place the instrument onto a stable surface. (Not illustrated) Step Description Push the slide fastener in the direction of the arrow with the open-lock symbol. Pull out the battery holder.

  • Page 29: Understanding Antenna Heights

    Tripod setup. For height measurement devices other than the height hook, the dimensions must be determined and the vertical offset must be adapted.  Pole setup. For other than Leica poles, the dimensions must be determined. iCON gps 60, Using the iCON gps 60 SmartAntenna...

  • Page 30: The Mechanical Reference Plane, Mrp

    60, Using the iCON gps 60 SmartAntenna The Mechanical Reference Plane, MRP Description The Mechanical Reference Plane: • is where the antenna heights are measured to. • is where the phase centre variations refer to. • varies for different antennas.

  • Page 31: Measuring The Antenna Height For A Pillar Setup

    MRP. pillar setup a) Mechanical reference plane MRP b) Vertical phase centre offset for L1 c) Vertical phase centre offset for L2 d) Vertical Height Reading No vertical offset. GPS60_010 iCON gps 60, Using the iCON gps 60 SmartAntenna...
  • Page 32 60, Using the iCON gps 60 SmartAntenna Determining the Step Description antenna height Measure a height from the pillar benchmark to a surface on the carrier. with the GRT146 carrier step-by-step GS_036 Use the appropriate measurement from the diagram above. Determine the height difference between the measured surface on the carrier and where the MRP of the antenna sits on the carrier.

  • Page 33: Measuring The Antenna Height For A Tripod Setup

    Setup Type Antenna type The required measurement antenna height - Tripod iCON gps 60 Tripod the vertical height reading from the height hook. tripod setup a) Mechanical reference plane MRP b) Vertical phase centre offset for L1 c) Vertical phase centre offset for L2...

  • Page 34: Measuring The Antenna Height For A Pole Setup

    60, Using the iCON gps 60 SmartAntenna Determining the Step Description antenna height The vertical height reading = vertical height reading from the height hook. with the height hook step-by-step • The vertical height reading is the height difference between the ground mark and the bottom end of the height hook.

  • Page 35: Leica Icon Gps 60 User Interface

    Leica iCON gps 60 User Interface User Interface overview a) Display b) Navigation keys c) ENTER key d) ESC key e) Ambient light sensor Power and status LED g) ON/OFF key GPS60_001 iCON gps 60, Leica iCON gps 60 User Interface...
  • Page 36 60, Leica iCON gps 60 User Interface User Interface The instrument can be controlled and used as a stand-alone base point instrument elements via the user interface elements. Element Function Navigation keys • 4-way navigation in the menus via left, right, up and down key.
  • Page 37 Use the navigation keys to select a program icon and to navigate within submenus.  Use the key to enter a submenu and confirm settings.  Use the key to discard settings, cancel operations and to go back to the main menu. iCON gps 60, Leica iCON gps 60 User Interface...

  • Page 38: Main Menu

    60, Leica iCON gps 60 User Interface Main Menu Description The Main Menu is the first screen displayed when the instrument is switched on. Main menu on the The main menu features a matrix set of program icons.
  • Page 39 • • High accuracy position has been obtained. Error ≤ 0.05 m. • • iCON gps 60 is operating as a base. • BasePilot setup in progress. • BasePilot setup failed. iCON gps 60, Leica iCON gps 60 User Interface...
  • Page 40 60, Leica iCON gps 60 User Interface Icon Description Satellite • No satellites tracked. • Number of tracked satellites. Icon Description Radio • Radio not in use. • Radio set to receive correction data in rover mode. •...
  • Page 41 Modem set to receive correction data in rover mode. • Waves flash when correction data is received. • Modem set to transmit correction data in base mode. • Waves flash when correction data is transmitted. • Modem error. iCON gps 60, Leica iCON gps 60 User Interface...
  • Page 42 60, Leica iCON gps 60 User Interface Icon Description Bluetooth • Bluetooth OFF. • Bluetooth ON. • Bluetooth connection active.
  • Page 43 • Internal battery low. • External power is used. Internal battery is installed. • External power is used. Internal battery is not installed. Icon Description Construction • For future use. telematics iCON gps 60, Leica iCON gps 60 User Interface...
  • Page 44 60, Leica iCON gps 60 User Interface Icon Description Storage • Memory icon (internal memory). • USB flash drive inserted. • Raw data logging ongoing. • Memory error (internal memory). Can also occur in combination with USB flash drive and Raw data logging.

  • Page 45: Navigation In Sub Menus

    • Small boxes at the bottom of a submenu page indicate the number pages within the submenu, • while a solid black box indicates the current position within the submenu. iCON gps 60, Leica iCON gps 60 User Interface...

  • Page 46: Available Sub Menus

    60, Leica iCON gps 60 User Interface 3.1.2 Available Sub Menus Position Menu Informs about: • position quality • position coordinates and coordinate systems • active antenna and antenna height • RTK mode • date and time Configurable values in submenus: •...
  • Page 47 Configurable values in submenus: • radio channel • radio ON/OFF Modem Menu Informs about: • modem status information • connection details of internal modem Configurable values in submenus: • modem ON/OFF • modem connect/disconnect iCON gps 60, Leica iCON gps 60 User Interface...
  • Page 48 60, Leica iCON gps 60 User Interface Battery Menu Informs about: • battery level of internal and / or external battery Configurable values in submenus: • none Bluetooth Menu Informs about: • Bluetooth connection status Configurable value in submenu: •...
  • Page 49 RINEX logging for post processing (see " Raw Data logging") Import / Export / Delete data transfer from / to USB flash drive / deletion of files Licences add / check licences iCON gps 60, Leica iCON gps 60 User Interface...
  • Page 50 60, Leica iCON gps 60 User Interface System Information submenu: Functions Description System Information • sensor serial number • active firmware versions • other system related information System Configuration submenu: Functions Description Upload firmware firmware file must be placed on a USB...
  • Page 51 Service Information submenu: Functions Description Service Password protected - for Service & Support staff only Service Menu Functions Description Service Password protected - for Service & Support staff only iCON gps 60, Leica iCON gps 60 User Interface...

  • Page 52: How To Change And Edit Values

    60, Leica iCON gps 60 User Interface How to Change and Edit Values When entering a submenu the first edit- Select and edit able value is automatically selected. This values in a is indicated by a frame around the entry.
  • Page 53 Press key again to save the changes. The reading switches back to non- inverted mode.  Check that the desired value is displayed. iCON gps 60, Leica iCON gps 60 User Interface...
  • Page 54 60, Leica iCON gps 60 User Interface Enter numbers or The user interface is equipped with a virtual keyboard for alphanumerical typing. text  The virtual keyboard works similar to a mobile phone keyboard. Press repeatedly to toggle between the different characters.
  • Page 55 Special keys Function Moves the position of the cursor. Deletes the character left of the cursor (backspace func- tionality). Stores the current content of the textfield and ends the input mode. iCON gps 60, Leica iCON gps 60 User Interface...

  • Page 56: Software Tools

    BasePilot is a feature which conifigures and starts the SmartAntenna running as a base when the SmartAntenna is setup over a known point. Predefined base configu- rations are automatical loaded without the need of a controller. Step Description Position the iCON gps 60 over a known base point.
  • Page 57 Step Description Choose correct SmartAntenna mode: • If iCON gps 60 is in base mode: – BasePilot starts up automatically. • If iCON gps 60 is in rover mode: – Go to Settings\Tools\Base Setup and choose Find Nearest and confirm selection with key (refer also to "Function: Find...
  • Page 58 60, Software Tools  When using BasePilot, always check in the Position submenu that the SmartAntenna has selected the correct base point! Using the wrong base point can lead to an error of more than 20 m for a rover!

  • Page 59: Base Setup Functions

    The Get Here function determines the current coordinates of the instrument and step-by-step uses this position as the base point. Step Description Position the iCON gps 60 where the base point should be set up. Highlight Modify in the Position screen and confirm selection with key. iCON gps 60, Software Tools...
  • Page 60 60, Software Tools Step Description Select Get Here and confirm selection with key. Optional for external antennas: Set the correct Antenna Type, Height and Measurement Method in the antenna screen. When ready to determine the current position, confirm with Continue.
  • Page 61 The Edit function can be used to enter a set of coordinates manually. step-by-step Step Description Position the iCON gps 60 where the base point should be set up. Select Modify and confirm selection with key. Select Edit and confirm selection with key.
  • Page 62 The Find Nearest function searches through the Base Point List for base points in Nearest the vicinity. step-by-step Step Description Position the iCON gps 60 where the base point should be set up. Select Modify and press key. Select Find Nearest and confirm selection with key.
  • Page 63 When using BasePilot, always check in the Position submenu that the SmartAntenna has selected the correct base point! Using the wrong base point can lead to an error of more than 20 m for a rover! iCON gps 60, Software Tools...
  • Page 64 60, Software Tools No stored posi- If no base point in the Base Point List is close to the current instrument position an tions nearby information message shows up: If this screen appears: • Choose Continue Use Input or Get Here function to •...

  • Page 65: Raw Data Logging

    Antenna List imports a list of external antennas Welcome Screen imports a customisable welcome screen (e.g. a company logo) System Configuration overwrites the current system configura- tion (e.g. with a configuration backup from a file) iCON gps 60, Software Tools...
  • Page 66 60, Software Tools Export options from the instrument to a USB flash drive: Export to USB Description Base Point List exports a list of stored base points System Configuration makes a backup of the current system configuration (e.g. to restore or to share...

  • Page 67: Licensing

    Settings>Tools>Raw Data logging.  RINEX is used for post processing when high accurate coodinates are required. Licensing Licence Status In the Licence menu licenses can be uploaded, entered or deleted. The settings are accessible via Settings>Tools>Licences. iCON gps 60, Software Tools...

  • Page 68: Setups With Controller And Accessories

    60, Setups with Controller and Accessories Setups with Controller and Accessories Real-Time Base Setup Real-time refer- ence setup with internal modem GPS60_023...
  • Page 69 Check that the tribrach is still correctly positioned and levelled. • Hang the external battery onto a tripod leg. • Take the GEV219. • Attach the 8 pin plug connector to the iCON gps 60 antenna. iCON gps 60, Setups with Controller and Accessories...
  • Page 70 60, Setups with Controller and Accessories Step Description • Attach the 5 pin plug connector to the external battery. • Insert the battery into the field controller. • Turn on the antenna and the controller. Run the Reference Setup application of the iCON Site software •...

  • Page 71: Base Station With Mna1202

    Base Station with MNA1202 Base Station setup with external GNSS Antenna GPS60_030 iCON gps 60, Setups with Controller and Accessories...
  • Page 72 60, Setups with Controller and Accessories a) Radio antenna b) GAD34 arm, 3 cm m) GAD109 QN/TNC adapter c) GEV120 antenna cable n) CC50 field controller d) GAD32 telescopic rod o) Battery for CC50 field controller e) GHT36 - base for telescopic rod...
  • Page 73 Step Description Setting Up the iCON gps 60: • Place the iCON gps 60 SmartAntenna e.g. in a container. • Attach the QN/TNC adapter to the QN port. • Connect the TNC cable to the QN/TNC adapter of the SmartAntenna and the GAD34 at the radio antenna.
  • Page 74 60, Setups with Controller and Accessories Step Description • Connect the iCON gps 60 via the 8-pin socket to an external power source. • Use the GEV219 cable to connect the external battery GEB171 using the 5-pin socket.

  • Page 75: Real-Time Base With Raw Data Logging

    Real-Time Base with Raw Data Logging Real-time refer- ence setup for raw data logging GPS60_023 iCON gps 60, Setups with Controller and Accessories...
  • Page 76 • Check that the tribrach is still correctly positioned and levelled. • Hang the external batteries onto the tripod legs. • Take the GEV219 cable. • Attach the connector with the 8 pin plug to the iCON gps 60 antenna.
  • Page 77 Turn on the antenna and the controller. Configuring the Raw Data Logging • Refer to "Raw Data logging". Run iCON Site Base Setup application • See iCON Site software manual for more information. iCON gps 60, Setups with Controller and Accessories...

  • Page 78: Raw Data Logging Setup

    60, Setups with Controller and Accessories Raw Data Logging Setup Raw data logging setup for post- processing GPS60_024...
  • Page 79 Check that the tribrach is correctly centred over the marker. • Place and lock the carrier into the tribrach. • Screw iCON gps 60 antenna onto the carrier. • Check that the tribrach is still correctly positioned and levelled. If available: Else: •...

  • Page 80: Real-Time Rover Setup

    60, Setups with Controller and Accessories Step Description • Attach the connector with the 5 pin plug to the external battery. • Turn on the antenna. Configuring the Raw Data Logging • Refer to "Raw Data logging". Real-Time Rover Setup The following equipment setups are to be used for real-time rover with extended periods of use in the field.
  • Page 81 GEB221 battery c) GAD109 QN/TNC adapter d) Radio antenna e) Pole clamp Pole g) CC60/CC61 field controller h) Battery for CC60/CC61 field controller USB flash drive GPS60_025 Holder for CC60/CC61 field controller iCON gps 60, Setups with Controller and Accessories...
  • Page 82 60, Setups with Controller and Accessories Real-time rover setup with CC50 a) iCON gps 60 antenna b) GEB221 battery c) GAD109 QN/TNC adapter d) Radio antenna e) Pole clamp Pole g) CC50 field controller h) Holder for CC50 field controller...
  • Page 83 • Insert the battery into the iCON gps 60 antenna. • Screw iCON gps 60 antenna onto the top of the telescopic pole. • Ensure that the compression lock is not clamped. • Extend the telescopic pole and ensure that the snap-lock clicks into its position.

  • Page 84: Establish Bluetooth Data Connection

    See iCON Site software manual on for more information. Establish Bluetooth Data Connection Bluetooth connec- Activate the internal Bluetooth module of the iCON gps 60. See "Bluetooth Menu".  tion setup Follow the instructions of the controller user manual about how establish a...

  • Page 85: Care And Transport

    Always carry the product in its transport container and secure it. Shipping When transporting the product by rail, air or sea, always use the complete original Leica Geosystems packaging, transport container and cardboard box, or its equiva- lent, to protect against shock and vibration. Shipping, transport...

  • Page 86: Storage

    60, Care and Transport Storage Product Respect the temperature limits when storing the equipment, particularly in summer if the equipment is inside a vehicle. Refer to " Environmental specifications" for infor- mation about temperature limits. Li-Ion batteries •...

  • Page 87: Cleaning And Drying

    Cables and plugs Keep plugs clean and dry. Blow away any dirt lodged in the plugs of the connecting cables. Connectors with Wet connectors must be dry before attaching the dust cap. dust caps iCON gps 60, Care and Transport...

  • Page 88: Safety Directions

    60, Safety Directions Safety Directions General Introduction Description The following directions enable the person responsible for the product, and the person who actually uses the equipment, to anticipate and avoid operational hazards. The person responsible for the product must ensure that all users understand these...

  • Page 89: Definition Of Use

    Carrying out measurement tasks using various GNSS measuring techniques. • Recording GNSS and point related data. • Remote control of product. • Data communication with external appliances. • Measuring raw data and computing coordinates using carrier phase and code signal from GNSS satellites. iCON gps 60, Safety Directions...
  • Page 90 60, Safety Directions Adverse use • Use of the product without instruction. • Use outside of the intended limits. • Disabling safety systems. • Removal of hazard notices. • Opening the product using tools, for example screwdriver, unless this is permitted for certain functions.

  • Page 91: Limits Of Use

    DANGER Local safety authorities and safety experts must be contacted before working in hazardous areas, or close to electrical installations or similar situations by the person in charge of the product. iCON gps 60, Safety Directions...

  • Page 92: Responsibilities

    Manufacturers of The manufacturers of non Leica Geosystems accessories for the product are respon- non Leica Geosys- sible for developing, implementing and communicating safety concepts for their...

  • Page 93: Hazards Of Use

    Precautions: Periodically carry out test measurements and perform the field adjustments indicated in the user manual, particularly after the product has been subjected to abnormal use and before and after important measurements. iCON gps 60, Safety Directions...
  • Page 94 60, Safety Directions DANGER Because of the risk of electrocution, it is dangerous to use poles and extensions in the vicinity of electrical installations such as power cables or electrical railways. Precautions: Keep at a safe distance from electrical installations. If it is essential to work in this environment, first contact the safety authorities responsible for the electrical instal- lations and follow their instructions.
  • Page 95 Precautions: When setting-up the product, make sure that the accessories are correctly adapted, fitted, secured, and locked in position. Avoid subjecting the product to mechanical stress. iCON gps 60, Safety Directions...
  • Page 96 60, Safety Directions WARNING If the product is used with accessories, for example masts, staffs, poles, you may increase the risk of being struck by lightning. Precautions: Do not use the product in a thunderstorm. DANGER If the product is used with accessories, for example on masts, staffs, poles, you may increase the risk of being struck by lightning.
  • Page 97 GNSS signal shading. 2) On metallic structures Protection is as described for non-metallic structures, but the air terminals can be connected directly to the conducting structure without the need for down conductors. iCON gps 60, Safety Directions...
  • Page 98 60, Safety Directions Air terminal arrangement, plan view a) Antenna b) Support structure c) Air terminal GS_039 Grounding the instru- ment/antenna a) Antenna b) Lightning conductor array c) Antenna/instrument connection d) Metallic mast e) Connection to earth GS_040...
  • Page 99 WARNING Using a battery charger not recommended by Leica Geosystems can destroy the batteries. This can cause fire or explosions. Precautions: Only use chargers recommended by Leica Geosystems to charge the batteries. CAUTION During the transport, shipping or disposal of batteries it is possible for inappropriate mechanical influences to constitute a fire hazard.
  • Page 100 60, Safety Directions WARNING If battery terminals come in contact with jewellery, keys, metallised paper or other metals, short circuited battery terminals can overheat and cause injury or fire, for example by storing or transporting in pockets. Precautions: Make sure that the battery terminals do not come into contact with metallic objects.
  • Page 101 Product-specific treatment and waste management information can be downloaded from the Leica Geosystems home page at http://www.leica-geosystems.com/treatment or received from your Leica Geosystems dealer. WARNING Only Leica Geosystems authorised service workshops are entitled to repair these products. iCON gps 60, Safety Directions...

  • Page 102: Electromagnetic Compatibility Emc

    WARNING Electromagnetic radiation can cause disturbances in other equipment. Although the product meets the strict regulations and standards which are in force in this respect, Leica Geosystems cannot completely exclude the possibility that other equipment may be disturbed. CAUTION There is a risk that disturbances may be caused in other equipment if the product is used with accessories from other manufacturers, for example field computers, personal computers, two-way radios, non-standard cables or external batteries.
  • Page 103 Although the product meets the strict regulations and standards which are in force in this respect, Leica Geosystems cannot completely exclude the possibility that the product may be disturbed by intense electromagnetic radiation, for example, near radio transmitters, two-way radios or diesel generators.
  • Page 104 Precautions: Although the product meets the strict regulations and standards which are in force in this respect, Leica Geosystems cannot completely exclude the possibility that other equipment can be disturbed or that humans or animals can be affected. •...

  • Page 105: Fcc Statement, Applicable In U

    Increase the separation between the equipment and the receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. iCON gps 60, Safety Directions...
  • Page 106 60, Safety Directions WARNING Changes or modifications not expressly approved by Leica Geosystems for compli- ance could void the user's authority to operate the equipment. Labelling iCON gps 60 S.No.: ..Type: iCG60 Type: iCG60 Art.No.: ..Equip. No.: ..

  • Page 107: Technical Data

    Technical Data Technical Data iCON gps 60 Antenna Dimensions The overall dimensions are given for the housing including the sockets. Type Length [mm] Width [mm] Thickness [mm] iCON gps 60 Weight Instrument weight without battery: Type Weight [kg]/[lbs] iCON gps 60 1.45/3.20 (including internal HSPA modem)
  • Page 108 60, Technical Data Recording Data (Leica GNSS raw data and RINEX data) can be recorded on the internal memory. Capacity [MB] Data capacity • 466 MB is typically sufficient for about GPS only (12 satellites) • 3600 h L1 + L2 + L5 data logging at 15 s rate •...
  • Page 109 12 V Capacity: GEB171: 9.0 Ah Operating times The given operating times are valid for • iCON gps 60: fully charged GEB221 battery. • room temperature. Operating times will be shorter when working in cold weather. Equipment Operating time Type...
  • Page 110 60, Technical Data Electrical data Type iCON gps 60 Voltage Current Frequency GPS L1 1575.42 MHz GPS L2 1227.60 MHz GPS L5 1176.45 MHz GLONASS L1 1602.5625 MHz-1611.5 MHz GLONASS L2 1246.4375 MHz-1254.3 MHz Galileo E1 1575.42 MHz Galileo E5a 1176.45 MHz...
  • Page 111 IP67 (IEC 60529) Dust tight Waterproof to 1 m temporary immersion Humidity Type Protection Instrument Up to 100 % The effects of condensation are to be effectively counter- acted by periodically drying out the instrument. iCON gps 60, Technical Data...

  • Page 112: Tracking Characteristics

    60, Technical Data 8.1.1 Tracking Characteristics Instrument SmartTrack+ technology Satellite reception Triple frequency iCON gps 60: • Up to 16 satellites in continuous tracking on L1, L2 and L5 Instrument (GPS). channels and satellite tracking • Up to 14 satellites in continuous tracking on L1 and L2 (GLONASS).
  • Page 113 Up to 16 simultaneously on L1, L2 and L5 (GPS) + up to 14 simultaneously on L1 and Satellites tracked L2 (GLONASS) + up to 14 simultaneously on E1, E5a, E5b and Alt-BOC (Galileo) + up to four SBAS (EGNOS, WAAS, MSAS, GAGAN) iCON gps 60, Technical Data...

  • Page 114: Accuracy

    60, Technical Data 8.1.2 Accuracy  Accuracy is dependent upon various factors including the number of satellites tracked, constellation geometry, observation time, ephemeris accuracy, ionospheric disturbance, multipath and resolved ambiguities. The following accuracies, given as root mean square, are based on measurements processed using LGO and on real-time measurements.
  • Page 115 20 mm + 1 ppm Differential phase Static Kinematic in real-time Horizontal Vertical Horizontal Vertical 5 mm + 0.5 ppm 10 mm + 0.5 ppm 10 mm + 1 ppm 20 mm + 1 ppm iCON gps 60, Technical Data...

  • Page 116: Technical Data Mna1202 Gg Antenna

    60, Technical Data Technical Data MNA1202 GG Antenna Description and The GNSS antenna is selected for use based upon the application. The table gives a description and the intended use of the antenna. Type Description MNA1202 GG GPS / GLONASS L1/L2 Smart-...
  • Page 117 [m] iCON gps 60 MNA1202 GG MNA1202 GG: TNC female Connector MNA1202 GG: 5/8" Whitworth Mounting Vibration/Shock Type MNA1202 GG Vibration 8 - 500 Hz, ± 7.5 mm, 5 g Shock 60 g, 6 ms iCON gps 60, Technical Data...
  • Page 118 60, Technical Data Environmental Temperature specifications Type Operating temperature [°C] Storage temperature [°C] MNA1202 GG -40 to +70 -55 to +85 Protection against water, dust and sand Type Protection MNA1202 GG After IEC 60529: IP67 Dust tight Protected against water jets...

  • Page 119: Pin Assignments And Sockets

    Modification or adaption on base of the pin assignments and socket descriptions required need expert knowledge. WARNING Changes or modifications not expressly approved by Leica Geosystems for compli- ance could void the user's authority to operate the equipment. Port 1- Lemo Name...
  • Page 120 60, Technical Data Description Antenna signal and antenna power Shield/Ground MP_25 USB 2.0 host Type: USB-A receptacle connector Name Description Direction +5V Power supply Data signal negative In/Out 1 2 3 4 Data signal positive In/Out Power supply return and signals reference Picture: Receptacle viewed from mating side.

  • Page 121: Conformity Declarations

    Conformity • FCC Part 15, 22 and 24 (applicable in US) • Hereby, Leica Geosystems AG, declares that the product iCON gps 60 is in compli- to national ance with the essential requirements and other relevant provisions of Directive regulations 1999/5/EC.
  • Page 122 Leica Geosystems. Such software is protected by copy- right and other laws and its use is defined and regulated by the Leica Geosystems Software Licence Agreement, which covers aspects such as, but not limited to, Scope of the Licence, Warranty, Intellectual Property Rights, Limitation of Liability, Exclusion of other Assurances, Governing Law and Place of Jurisdiction.
  • Page 123 You must not install or use the software unless you have read and accepted the terms and conditions of the Leica Geosystems Software Licence Agreement. Installa- tion or use of the software or any part thereof, is deemed to be an acceptance of all the terms and conditions of such Licence Agreement.
  • Page 124 60, Index Index CC50 Rear side ............18 Antenna Topview ...........17, 17 Calibration ............. 29 CC60/CC61 Antennas Rear view ............19 Type ............116 Topview ............18 Available Sub Menus ........... 46 Connector, antennas .........117 Container contents ..........11 Base setup ............56 Base Setup Functions ..........
  • Page 125 Electrical data Keys Antenna ............116 Enter ..............36 iCON gps 60 ..........110 ESC (Escape) ..........36 Environmental specifications Navigation cross ..........36 Antenna ............118 ON/OFF ............36 Instrument ........... 111 Labelling FCC Statement ..........105 GEB221 ............106 GEB222 ............106 iCON gps 60 ..........106 Icon Licensing .............67...
  • Page 126 Antenna SIM card Vertical ..........29, 33 Insert and remove ..........27 Operating times Socket ...............119 iCON gps 60 ..........109 Software Licence Agreement ......122 Software Tools ............56 Specifications, environmental Phase center variations, vertical ......29 Antennas .............118 Pin Assginment ..........119 Instrument ...........111...
  • Page 127 Temperature, charging internal battery ....26 Time, operating ..........109 User Interface Additional icon information ......39 Description of ..........36 iCON gps 60 ........... 35 User Manual Validity of ............4 Vertical offset, antenna ........ 29, 33 iCON gps 60, Index...
  • Page 128 International Standards of Quality Management and Quality Systems (ISO standard 9001) and Environmental Management Systems (ISO standard 14001). Ask your local Leica Geosystems dealer for more information about our TQM program. Leica Geosystems AG Heinrich-Wild-Strasse...

Table of Contents

Save PDF
