- Page 1 WIZ107SR User Manual ( Version 1.1 ) ©2010 WIZnet Co., Ltd. All Rights Reserved. ☞ For more information, visit our website at http://www.wiznet.co.kr (WIZnet Co., Ltd.) WIZ107SR User Manual...
-
Page 2: Document Revision History
Document Revision History Date Revision Changes 2010-04-23 V1.0 Official Release Modify the serial command list 2010-04-28 V1.1 WIZ107SR User Manual (WIZnet Co., Ltd) - Page 3 WIZnet’s Online Technical Support If you have something to ask about WIZnet products, write down your question on Q&A Board in WIZnet website (www.wiznet.co.kr). WIZnet will give an answer as soon as possible. COPYRIGHT NOTICE Copyright 2010 WIZnet Co., Ltd. All Rights Reserved.
-
Page 4: Table Of Contents
Table of Contents 1. Introduction ........................1 1.1 Key Features ......................1 1.2 Product Contents ( WIZ107SR-EVB model ) ............... 2 1.3 Product Specification ....................4 1.3.1 WIZ107SR Module Specification ..............4 1.3.2 WIZ107SR Module Interface ................5 1.3.3 Pin Header Connector Pin-Assignment ............6 2. - Page 5 ..................20 13. WIZ107SR D ) ..................21 IGURE IMENSIONS UNIT 14. WIZ107SR I IGURE NTERFACE OARD CHEMATIC ................22 WIZ107SR User Manual (WIZnet Co., Ltd)
- Page 6 Tables 1. P ABLE RODUCT ONTENTS ........................3 2. WIZ107SR M ABLE ODULE PECIFICATION ....................4 3. P PIN-A ABLE EADER ONNECTOR SSIGNMENT ESCRIPTION ............. 6 4. S ABLE ERIAL COMMAND LIST ........................19 WIZ107SR User Manual (WIZnet Co., Ltd)
-
Page 7: Introduction

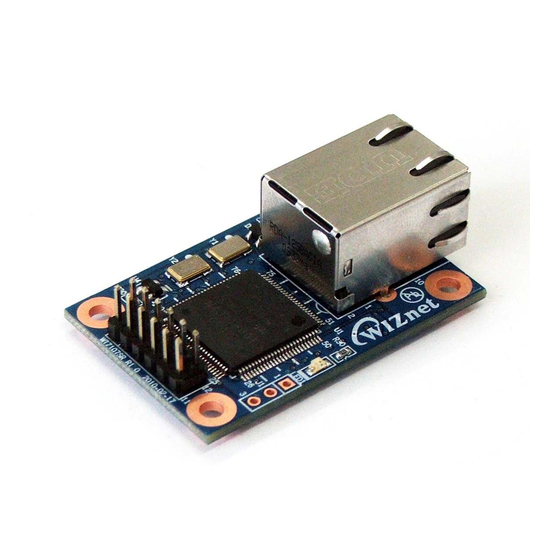

WIZ107SR is a gateway module between serial device and Ethernet. It can transmit serial data to Ethernet and vice versa. With WIZ107SR, you can connect your serial device with Ethernet via WIZ107SR provides interface quite easier and shorten your development period to obtain more gains. -
Page 8: Product Contents ( Wiz107Sr-Evb Model )
1.2 Product Contents ( WIZ107SR-EVB model ) WIZ107SR WIZ107SR Interface Board 12pin Cable ( Connect WIZ107SR with Interface Board ) Serial Cable LAN Cable (WIZnet Co., Ltd.) WIZ107SR User Manual... - Page 9 ( DC 5V / 2A Adaptor ) Data CD ( Manual, H/W & S/W materials inside ) Table 1. Product Contents ☞ If there is any missing item, contact to the shop where you purchased. (WIZnet Co., Ltd.) WIZ107SR User Manual...
-
Page 10: Product Specification
Ethernet are all supported and one standard Ethernet Jack is mounted in WIZ107SR. One serial port is provided in WIZ107SR via 12-pin connector which feathers standard RS-232 specification. WIZ107SR can be powered by a DC 3.3V power supply with at least 250mA current supply. The detailed specifications are listed in Table 2... -
Page 11: Wiz107Sr Module Interface
1.3.2 WIZ107SR Module Interface Figure 1. WIZ107SR Interface (WIZnet Co., Ltd.) WIZ107SR User Manual... -
Page 12: Pin Header Connector Pin-Assignment
1.3.3 Pin Header Connector Pin-Assignment WIZ107SR provides an external connector to connect it with your application board. The pin assignment and definition of the connector are introduced in Figure 2 and the specification of each pin is described in Table 3. -
Page 13: Getting Started
2. Getting Started 2.1 Configuration Tool 2.1.1 Network Configuration Figure 3. WIZ107SR Configuration Tool (Network Configuration Page) 1) Search The Search function is used to search all devices existing in the same LAN or one specified one device in WAN. By using UDP broadcast as shown in Figure 4, all connected devices in the same subnet will be found. -
Page 14: Figure 4. Searching With Udp Broadcast Method
“Setting” button to complete the configuration. The module will re-initialize with the changed configuration. Changed value is saved in the EEPROM of the module. Thus, the value is not removed even though power is disconnected. 3) Upload Firmware will be uploaded through network (WIZnet Co., Ltd.) WIZ107SR User Manual... -
Page 15: Figure 6. Simple Ping Test Program
(PPPoE mode is not supported at current version) - Using the follow IP Address (Static) This is option for setting WIZ107SR module’s IP with static IP address. Firstly, select MAC address which you wanted to set as static IP in the board list. Then “Device IP, Subnet, Gateway box”... - Page 16 WIZ107SR operates as client at the TCP Client mode on the process of connection, and tries to connect to the server’s IP and Port. Mixed modes supports both of Server and Client.
- Page 17 As like TCP Server mode, the Mixed mode is useful for the case that the monitoring center tries to connect to the serial device (in which WIZ107SR is used) to check device status. In addition to this, if any emergency occurs in the serial device, the module will change to Client mode to establish the connection to the server and deliver the emergency status of the device.
-
Page 18: Serial Configuration
2) COM port Setting The parameters of COM port of WIZ107SR are listed well in this page. Users can set the COM port of WIZ107SR by selecting the value of each parameter in the drop down list. ☞ By clicking the “Setting” button, changed value can be applied. - Page 19 This function is for module configuration not through network with Configuration tool but through serial communication. At the default status, the serial command mode is disabled. When you want to set via serial communication, check “enable”. (WIZnet Co., Ltd.) WIZ107SR User Manual...
-
Page 20: Option Configuration
In order to close the connection, the ‘Close’ command should be given. This function can be used for more than two or more systems to connect to a WIZ107SR module. If one system holds the connection to the WIZ107SR, other systems cannot connect to the module. - Page 21 For the security issues, WIZ107SR can have its own password for searching. The password is stored in the EEPROM of WIZ107SR, and it can be modified via this configuration tool. The password can be any alphabet or number. Its length can be variable and its maximum length is 8 bytes.
-
Page 22: Firmware Upload
4) When the window as shown below Figure is displayed, select file for upload and click “Open” button. ☞ Do not upload any other files except for WIZ107SR application firmware file. Figure 9. File open dialog box for Firmware uploading (WIZnet Co., Ltd.) -
Page 23: Figure 10. Firmware Uploaded Successfully
5) When the firmware is uploaded successfully, the following message box will be shown. Figure 10. Firmware uploaded successfully (WIZnet Co., Ltd.) WIZ107SR User Manual... -
Page 24: Serial Configuration
3. Serial Configuration 3.1 Serial Command Format If WIZ107SR is in serial configuration mode, users can use the following predefined commands to configure WIZ107SR via serial interface. The format of serial command is shown in Figure 11. Each command starts with a command name (2 characters) and ends with ‘\r\n’. - Page 25 WIZ108SR is not supported this CMD. Debug log message (read only) Error message (read only) Save setting message Reboot the device UART counter (read only) Exit from command mode Factory Reset Table 4. Serial command list (WIZnet Co., Ltd.) WIZ107SR User Manual...
-
Page 26: Serial Command Executing Example
WIZ107SR into serial configuration mode. And then, the user inputs command ‘MC’ with ‘Enter’ key pressed to read the MAC address of the WIZ107SR. You can find that the WIZ107SR responses with ‘MC00:08:DC:01:02:03’. In the same way, we can read the IP address of WIZ107SR. -
Page 27: Hardware Specification
4. Hardware Specification 4.1 WIZ107SR Dimension 30.00 3.50 11.50 11.50 3.50 3.00 3.50 38.00 3.50 48.00 2.54 2.73 8.65 2.54 Figure 13. WIZ107SR Dimensions (unit : mm) (WIZnet Co., Ltd.) WIZ107SR User Manual... -
Page 28: Wiz107Sr Interface Board Schematic
4.2 WIZ107SR Interface Board Schematic Figure 14. WIZ107SR Interface Board Schematic (WIZnet Co., Ltd.) WIZ107SR User Manual... -
Page 29: Warranty
WIZnet warrants our products and its parts against defects in materials and workmanship under normal use for period of standard ONE(1) YEAR for the WIZ107SR board and labor warranty after the date of original retail purchase. During this period, WIZnet will repair or replace a defective products or part free of charge.
