WIZ6000 User's Manual
(Version 1.0)
©2010 WIZnet Co., Ltd. All Rights Reserved.
☞ For more information, visit our website at
http://www.wiznet.co.kr
(WIZnet Co., Ltd.)
- 1 -
WIZ6000 User's Manual
Downloaded from
Elcodis.com
electronic components distributor

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WIZ6000 and is the answer not in the manual?

Questions and answers

Related Manuals for Wiznet WIZ6000

Summary of Contents for Wiznet WIZ6000

  • Page 1 WIZ6000 User’s Manual (Version 1.0) ©2010 WIZnet Co., Ltd. All Rights Reserved. ☞ For more information, visit our website at http://www.wiznet.co.kr (WIZnet Co., Ltd.) - 1 - WIZ6000 User’s Manual Downloaded from Elcodis.com electronic components distributor...

  • Page 2: Document Revision History

    Document Revision History Date Revision Changes 2010-03-15 V1.0 Release (WIZnet Co,. Ltd.) WIZ6000 User’s Manual - 2 - Downloaded from Elcodis.com electronic components distributor...
  • Page 3 CE for Class B ITE INFORMATION TO THE USER Hereby, WIZnet. Declares that this WIZ6000 is in compliance with the essential requirements and other relevant provisions of directive 1999/5/EC. WARNING: This is a class B product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.
  • Page 4 Q&A Board. We will reply your questions as soon as possible COPYRIGHT NOTICE Copyright 2010 WIZnet Co., Ltd. All Rights Reserved. Technical Support: support@wiznet.co.kr Sales & Distribution: sales@wiznet.co.kr...

  • Page 5: Table Of Contents

    Contents 1. Introduction ................................1 Products Contents ..........................2 Product Specification ........................3 WIZ6000 Device server Interface ....................5 1.3.1 Hardware Installation ........................5 2. Hardware Specification ............................6 2.1 WIZ6000 Dimension ..........................6 2.2 Connector Specification ........................... 7 2.2.1 RJ-45 Connector ..........................7 3.2.2 RS-232C Connector ........................
  • Page 6 Figures 1. WIZ6000 D ......................5 IGURE EVICE ERVER NTERFACE 2. WIZ6000 D ) ......................6 IGURE IMENSIONS UNIT 3. RJ-45 PIN A ..........................7 IGURE SSIGNMENT 4. S ................... 8 IGURE ERIAL ERMINAL ROGRAM CONFIGURATION 5. W ......................9...
  • Page 7 ..................12 ABLE ERIAL ONFIGURATION EPLY RAME FORMAT 8. S STX & ETX ......................12 ABLE ERIAL ONFIGURATION 9. S ......................13 ABLE ERIAL ONFIGURATION EPLY (WIZnet Co,. Ltd.) WIZ6000 User’s Manual - 7 - Downloaded from Elcodis.com electronic components distributor...

  • Page 8: Introduction

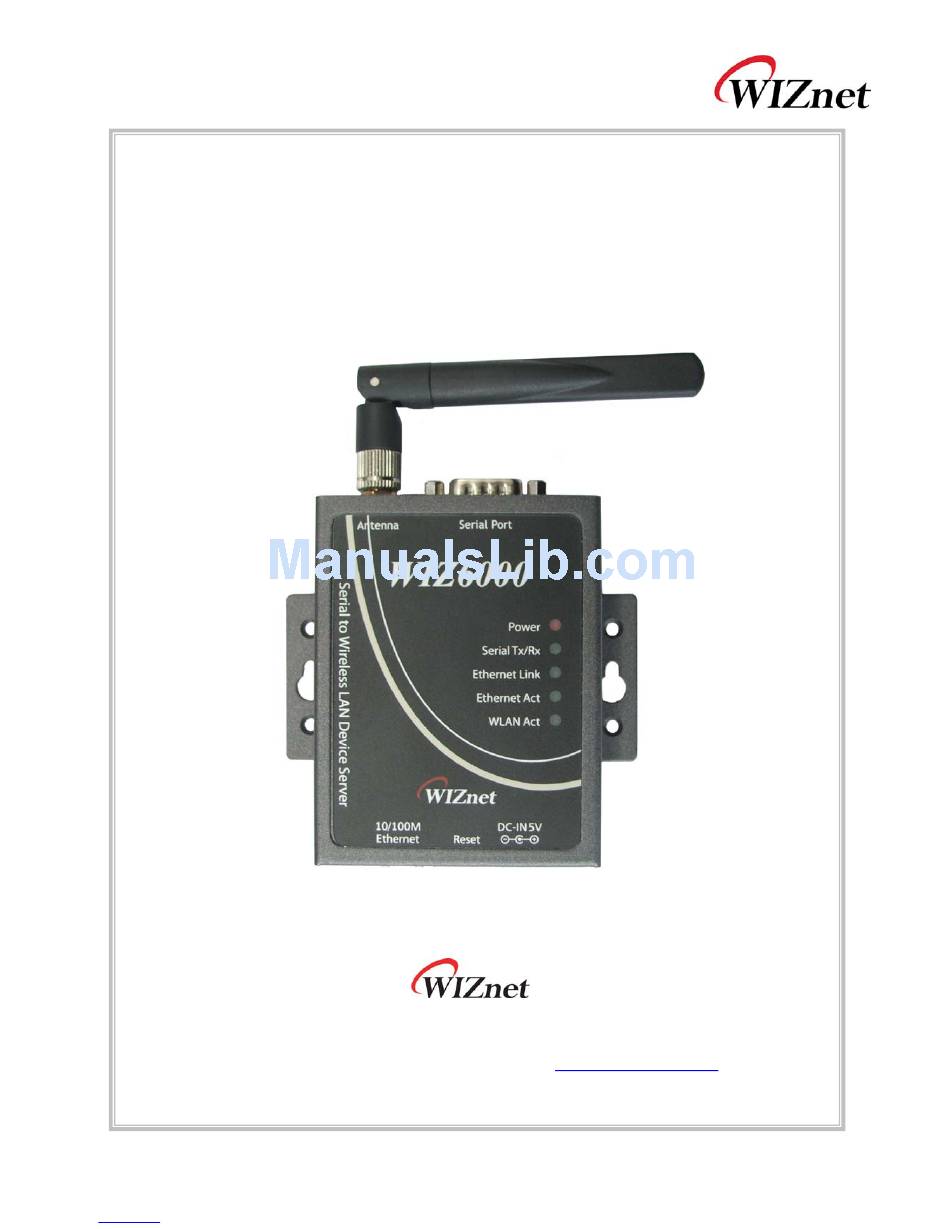

    1. Introduction WIZ6000 is the external gate way module which provides a bridge for RS-232 or Ethernet to IEEE802.11 b/g wireless communications. Devices with the interface of RS-232C serial or Ethernet can established a wireless network which can enable remote monitoring, management and controlling.

  • Page 9: Products Contents

    1.1 Products Contents WIZ6000 Device Server Included Dipole Antenna (2.5dBi SMA Type) Serial Cable Network Cable (Crossover Cable) Power (DC 5V / 2A Adaptor) Data CD (Manual, H/W & SW related Materials) Table 1. Products Contents. (WIZnet Co., Ltd.) WIZ6000 User’s Manual Downloaded from Elcodis.com...

  • Page 10: Product Specification

    ARP, UDP, TCP, Telnet, ICMP, IGMP DHCP, PPPoE, Protocol BOOTP, HTTP, TFTP WEP 64/128big WPA/WPA2 PSK/AES/TKIP Security 802.1x(Radius) Management HTTP, Telnet, Serial, UDP Notification Event Logging Table 3. Products Specification - Software (WIZnet Co., Ltd.) WIZ6000 User’s Manual Downloaded from Elcodis.com electronic components distributor...

  • Page 11: Table 4. Products Specification - Hardware

    CTS / RTS (Hardware), None Power DC 5V input Power Consumption Under 600mA ( 3.3V ) Dimension 90.5mm X 94.5mm X 22.7mm (Excluded antenna size) Table 4. Products Specification - Hardware (WIZnet Co., Ltd.) WIZ6000 User’s Manual Downloaded from Elcodis.com electronic components distributor...

  • Page 12: Wiz6000 Device Server Interface

    Figure 1. WIZ6000 Device Server Interface 1.3.1 Hardware Installation STEP1: Connect the WIZ6000 to the HUB or PC by using a network cable. STEP2: Connect the WIZ6000 to the serial device by using the RS-232C serial cable. STEP3: Insert the power supply connector to the WIZ6000 by using the 5V / 2A DC power adaptor.

  • Page 13: Hardware Specification

    Hardware Specification 2.1 WIZ6000 Dimension 90.5 67.5 11.5 14.5 26.0 27.0 22.5 11.5 16.5 22.5 87.5 94.5 Figure 2. WIZ6000 Dimensions (unit : mm) (WIZnet Co., Ltd.) WIZ6000 User’s Manual Downloaded from Elcodis.com electronic components distributor...

  • Page 14: Connector Specification

    External Power Ground (Internally shorted to GND) Ground Not connect Request To Send Clear To Send EXT_VCC External Power Input (5V) / Optional Table 5. RS-232 PIN Assignment (WIZnet Co., Ltd.) WIZ6000 User’s Manual Downloaded from Elcodis.com electronic components distributor...

  • Page 15: Demonstration And Test

    3. Demonstration and Test In this chapter, an example is provided for you to test the functionality of WIZ6000. The testing environments are the followings: <Hardware> A PC equipped with a RS-232 serial port WIZ6000 Device Server Connect PC and module’s Ethernet port by using an Ethernet Cable (Direct or Crossover) Connect PC and module’s serial port by using a serial cable...

  • Page 16: Figure 5. Wireless Network Connection

    ③ Connect to “WIZ6000” in the Wireless Network Setting of your PC Figure 5. Wireless Network Connection ④ Execute one more terminal program, and set IP address and Port number. Figure 6. Network Terminal Program configuration ⑤ Input any characters in the Hyper Terminal for Serial. (In the example below, “01234567890”...

  • Page 17: Figure 7. Received Data By Network Terminal Program

    ⑥ In the same way, input any character at the screen of terminal program for network, and check if same character is displayed at the screen for serial. ( Ethernet to Serial ) (WIZnet Co., Ltd.) WIZ6000 User’s Manual Downloaded from Elcodis.com...

  • Page 18: Figure 9. Device Terminal Program

    Server IP of the module. If Server mode is not checked, Device Terminal will operate as client mode, and the module as server. For the IP address and port, please input your IP address and port number of WIZ6000 and click the “Connect” button to start a network communication.

  • Page 19: Serial Configuration

    Serial Configuration Serial Command Format It is possible to configure WIZ6000 by using serial command. RS-232C port’s Pin number 1 of WIZ6000 is Hardware trigger pin. ( ‘1’: H/W trigger disable, ‘0’: enable ) < Frame Format > Command Frame format...

  • Page 20: Table 9. Serial Configuration Reply Code

    Start/End IP <Sxxx.xxx.xxx.xxx_xxx.xxx.xxx.xxx> DHCP Start address_End address Start/End IP <xxx.xxx.xxx.xxx_xxx.xxx.xxx.xxx> Wireless MAC address_Channel_TxRate_RSSI Active Client <Sxxxxxxxxxxxx_xx_xx_xx[:xxxxxxxxxxxx_xx_xx_xx:…]> List <IP address_MAC address> DHCP Client <Sxxx.xxx.xxx.xxx_xxxxxxxxxxxx[:xxx.xxx.xxx.xxx_xxxxxxxxxx List xx:…]> DNS Server 1:Enable, 0:Disable (WIZnet Co., Ltd.) WIZ6000 User’s Manual Downloaded from Elcodis.com electronic components distributor...
  • Page 21 0: 11b+g, 2: 11b, 3:11g, 6: n, 9:b+g+n Band <Sx> Wireless 0: 11b+g, 2: 11b, 3:11g, 6: n, 9:b+g+n Band <x> Operation 0:AP, 1:Gateway, 2: AP+WDS, 3:Client Mode <Sx> Operation 0:AP, 1:Gateway, 2: AP+WDS, 3:Client (WIZnet Co., Ltd.) WIZ6000 User’s Manual Downloaded from Elcodis.com electronic components distributor...
  • Page 22 <xx> Broadcast 0:Enable, 1:Disable SSID <Sx> Broadcast 0:Enable, 1:Disable SSID <x> 1:Enable, 0:Disable <Sx> 1:Enable, 0:Disable <x> 0:Disable,1:AllowListed,2:DenyListed[_count[_MACaddress_C MAC Access omment]] Control <Sx_x_xxxxxxxxxxxx_xxx~> MAC Access 0:Disable,1:AllowListed,2:DenyListed[_1:add,2:delete_count_ Control MACaddress_Comment] (WIZnet Co., Ltd.) WIZ6000 User’s Manual Downloaded from Elcodis.com electronic components distributor...
  • Page 23 4(WPA), 5(WPA-PSK), 6(WPA2), 7(WPA2-PSK), Security Encrypt: 0(None),1 (WEP), 2(TKIP), 3(AES), 4(TKIP_AES) Control KeyLength: 0(None), 1(WEP64), 2(WEP128) KeyFormat(WEP): 0(Ascii), 1(Hex) KeyFormat(WPA-PSK): 0(Passphrase), 1(Hex) (WPA-PSK KeyValue:8~63byte) <x_x_x_x_x_x_x_x> Serial TCP_0, UDP_1 Protocol <Sx> (WIZnet Co., Ltd.) WIZ6000 User’s Manual Downloaded from Elcodis.com electronic components distributor...
  • Page 24 [parity] 0: no parity, 1: Odd, 2: Even low_Stopbits [Flow] 0: no, 1: Xon/Xoff, 2: RTS/CTS [Stopbits]; 1: 1stop, 2:2stop <xxxxx> 0~65535 Time <Sxxxxx> 0~65535 Time <xxxxx> 0~255 Size <Sxxx> (WIZnet Co., Ltd.) WIZ6000 User’s Manual Downloaded from Elcodis.com electronic components distributor...
  • Page 25 Wrong Parameter factor <3> ">" is wrong error code <4> Do not work in current mode No more add list. -Limit- <5> *WDS: 4 list *ACL: 16 list (WIZnet Co., Ltd.) WIZ6000 User’s Manual Downloaded from Elcodis.com electronic components distributor...
  • Page 26 If multi command input, response time be delayed For example DA, GA, DW, GW Notice Security Available mode AP/GW Mode AuthMode: 0-7 EncryptType: 0-3 Client Mode AuthMode: 1,3,5,7 EncryptType: 0,1,4 **Security Example parameter <GU5_2_0_0_12345678> <GU4_2_0_0_12345678_abcd_192.168.123.111_1812> (WIZnet Co., Ltd.) WIZ6000 User’s Manual Downloaded from Elcodis.com electronic components distributor...

  • Page 27: Warranty

    WIZnet warrants our products and its parts against defects in materials and workmanship under normal use for period of standard ONE(1) YEAR for the WIZ6000 board and labor warranty after the date of original retail purchase. During this period, WIZnet will repair or replace a defective products or part free of charge.
