Lippert Components Ground Control 3.0 Quick Reference page 2

Using the Auto Leveling Control touch Pad - 5th Wheels
B
C
* LED Indicator
•
Off - Touch pad is locked
•
Solid Green - Touch pad is active
¤
Blinking Green - Jacks are moving and/or pump active
•
Solid Red - Low battery
¤ Blinking Red - Error (Consult OneControl Touch Panel or
OneControl App for instructions.
* LED Indicator
•
Off - Touch pad is locked
•
Solid Green - Touch pad is active
¤
Blinking Green - Jacks are moving and/or pump active
•
Solid Red - Low battery
¤
Blinking Red - Error: Most codes can be cleared by pressing
"Retract All." Otherwise, consult OneControl Touch Panel
or OneControl App for instructions. Three faults cannot
be cleared from the Auto Leveling Control Touch Pad and
must be addressed inside the trailer: Hall power short, bad
calibration and sensor problem.
¤
Slowly Blinking Faded Red (Red and Green Blinking
Simultaneously) - Jack Fault: Can clear by holding down
"Retract All" until the jacks begin to retract or by utilizing
OneControl Touch Panel or OneControl App.
Contact us: Lippert Components Inc. - www.lci1.com/support - Phone: (574) 537-8900 - Email: warranty@lci1.com
Rev: 03.20.2017
A
D
(Rev. A)
(Rev. B)
E
F
Page 2

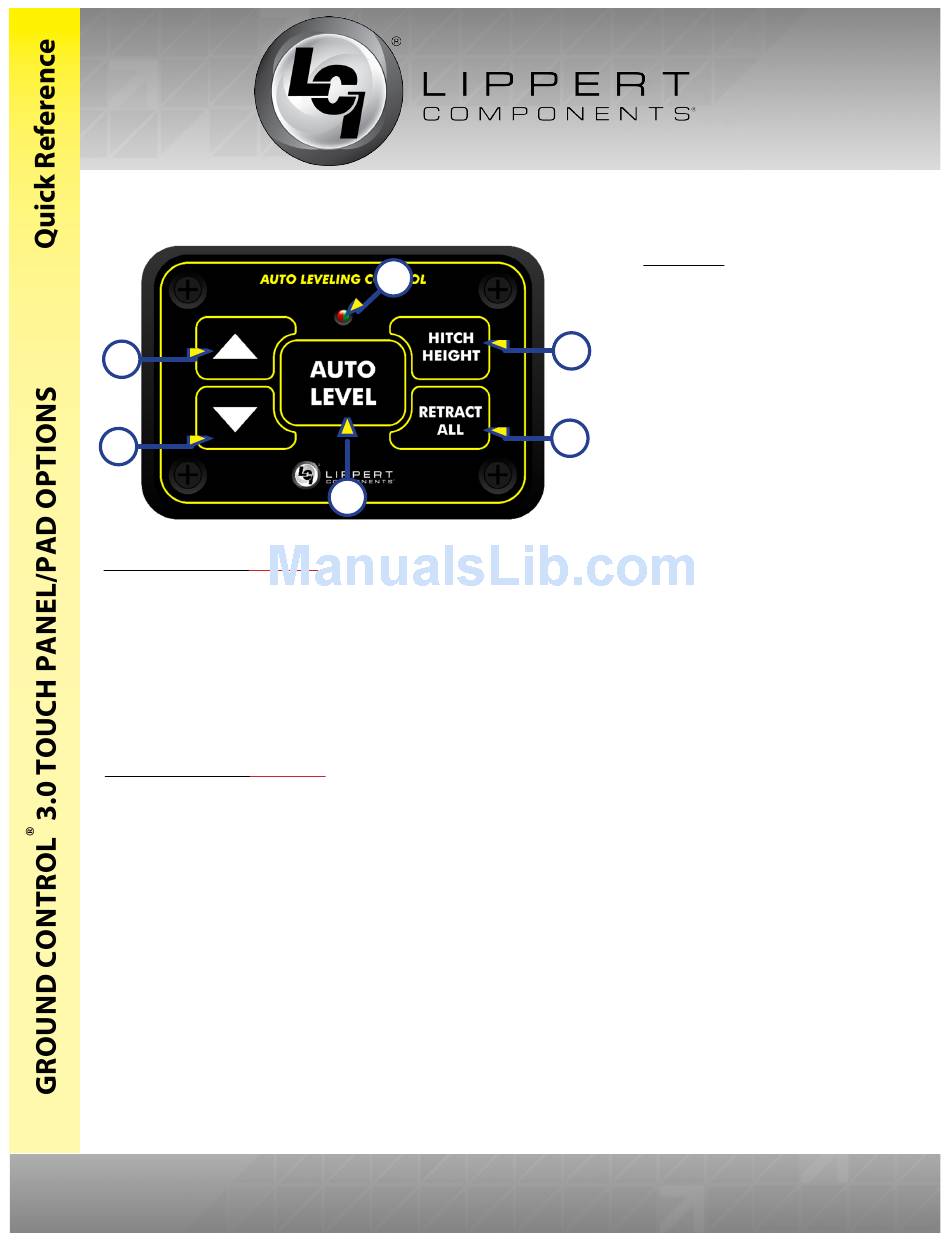

Features
