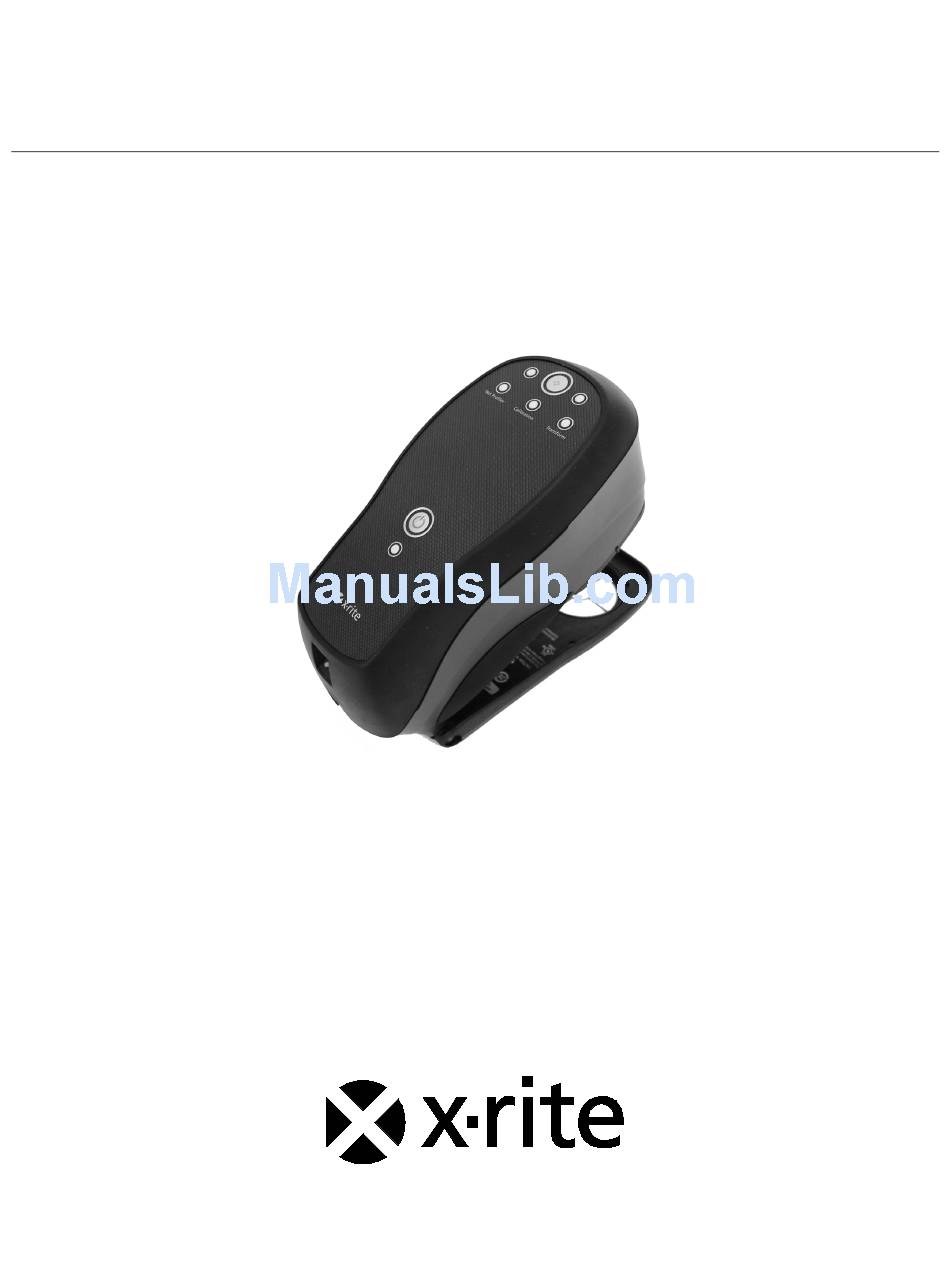

  • Page 1 Ci51/Ci52 Spectrophotometer User Guide...
  • Page 3 Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada. Equipment Information Use of this equipment in a manner other than that specified by X-Rite, Incorporated may compromise design integrity and become unsafe. WARNING: This instrument is not for use in explosive environments.

  • Page 4: Warranty Information

    X-Rite, Incorporated. Patents: www.xrite.com/ip “© 2017, X-Rite, Incorporated. All rights reserved” X-Rite® is a registered trademark of X-Rite, Incorporated. All other logos, brand names, and product names mentioned are the properties of their respective holders. Warranty Information X-Rite, Incorporated (“X-Rite”) warrants each instrument manufactured to be free of defects in...
  • Page 5 S P E C T R O P H O T O M E T E R equipment will void all warranty claims. Contact the X-Rite Support or the nearest X-Rite Service Center, if you believe that the unit does not work anymore or does not work correctly.

  • Page 6: Table Of Contents

    C i 5 1 / C i 5 2 S P E C T R O P H O T O M E T E R Table of Contents Introduction and Setup Packaging Attaching the Cord Strain Relief Connecting the AC Adapter Connecting the USB Cable Power Button Instrument Indicators...

  • Page 7: Introduction And Setup

    Shoe AC adapter input Packaging Your instrument packaging should contain all the items listed below. If any of these items are missing or damaged, contact X-Rite or your Authorized Representative. • Ci51 or Ci52 instrument • USB interface cabling •...

  • Page 8: Attaching The Cord Strain Relief

    C i 5 1 / C i 5 2 S P E C T R O P H O T O M E T E R Attaching the Cord Strain Relief A cord strain relief and strap is supplied to help prevent inadvertent cord disconnection during instrument use.
  • Page 9 C i 5 1 / C i 5 2 S P E C T R O P H O T O M E T E R 5. Pull the strain relief away from the instrument, allowing the looped end to tighten around the small hole.

  • Page 10: Connecting The Ac Adapter

    Output: 12VDC @ 2.5A AC adapter Operational hazard exists if an connector AC adapter other than X-Rite SE30-277 is used. Connecting the USB Cable IMPORTANT: You must install the instrument driver before connecting the instrument to your computer. 1. Install the software application if not already installed. Refer to the software documentation for additional information.

  • Page 11: Power Button

    C i 5 1 / C i 5 2 S P E C T R O P H O T O M E T E R Power Button The power button can be used to wake the instrument after it goes into a power down state. A power on condition is designated by a solid green power indicator.

  • Page 12: Calibrating

    C i 5 1 / C i 5 2 S P E C T R O P H O T O M E T E R CALIBRATING The software application prompts for an instrument calibration when required. The frequency at which this occurs depends on the application.
  • Page 13 C i 5 1 / C i 5 2 S P E C T R O P H O T O M E T E R 4. Press the instrument firmly to the shoe. Hold steady until the measurement status indicators change to amber and then green.

  • Page 14: Taking Measurements

    C i 5 1 / C i 5 2 S P E C T R O P H O T O M E T E R TAKING MEASUREMENTS You should refer to the documentation for the software program that you are using with your instrument.

  • Page 15: Appendices

    For sales questions or to order cables and accessories, visit our web site ( ) or www.xrite.com contact your nearest X-Rite dealer or service center. • Problems and questions can also be faxed to your local X-Rite office listed on our web site.

  • Page 16: Cleaning The Instrument

    C i 5 1 / C i 5 2 S P E C T R O P H O T O M E T E R Cleaning the Instrument Your instrument requires very little maintenance to achieve years of reliable operation. However, to protect your investment and maintain reading accuracy, a few simple-cleaning procedures should be performed from time to time.

  • Page 17: Cleaning The Calibration Reference

    C i 5 1 / C i 5 2 S P E C T R O P H O T O M E T E R Cleaning the Calibration Reference The calibration reference consists of a white ceramic plaque and a green ceramic plaque (if equipped), and a black trap opening.
  • Page 18 C i 5 1 / C i 5 2 S P E C T R O P H O T O M E T E R Black Trap Cleaning Procedure 1. Take apart the two sections by compressing the two locking tabs on both sides with your fingers and separating.

  • Page 19: Troubleshooting

    C i 5 1 / C i 5 2 S P E C T R O P H O T O M E T E R Troubleshooting Prior to contacting the support department for instrument problems, try the applicable solution(s) described below.

  • Page 20: Technical Specifications

    Measurement Range: 0 to 200% reflectance Measuring Time: Approx. 2 seconds Inter-Instrument Agreement: Ci51: 0.30 ∆E* ab , based on avg. of 12 BCRA series II tiles Ci51: 0.50 ∆E* ab max. on any tile (specular component included). Ci52: 0.20 ∆E* ab , based on avg. of 12 BCRA series II tiles Ci52: 0.40 ∆E* ab max.

  • Page 21: Green Tile Color Check (Ci52 Only)

    C i 5 1 / C i 5 2 S P E C T R O P H O T O M E T E R Green Tile Color Check (Ci52 only) 1. Perform a calibration procedure if you have not already done so. Refer to the Calibrating section. 2.
  • Page 23 8105 Regensdorf Switzerland Phone (+41) 44 842 24 00 Fax (+41) 44 842 22 22 Asia Pacific Headquarters X-Rite Asia Pacific Limited Suite 2801, 28th Floor, AXA Tower Landmark East, 100 How Ming Street Kwun Tong, Kowloon, Hong Kong Phone (852)2568-6283...
