12. USB Input
This input is used for data backup to USB MEM Stick or ULink cable. You can also use it for
USB work light.
13. Fog machine button
This button is used to trigger fog machine which should be connected to rear of console.
14. Chase buttons (1 - 12)
These buttons are used when storing or playing back a relevant scene.
15. Program button
This button is used to enter and exit record mode when programming.
16. Music/Bkc button
This button is used to engage audio mode for chase synchronization and to copy a bank of
scenes to another.
17. Midi/Rec button
This button is used to record scenes and chase steps. It is also used to setup midi operation.
18. Auto/Del button
This button is used to enter auto mode for automatic scene bank sequence or to delete a
scene or chase.
19. Tap/Disp button
This button is used to tap sync chase playback and to change display view operation.
20. Blackout Taste
This button is used to bring all current output down to zero.

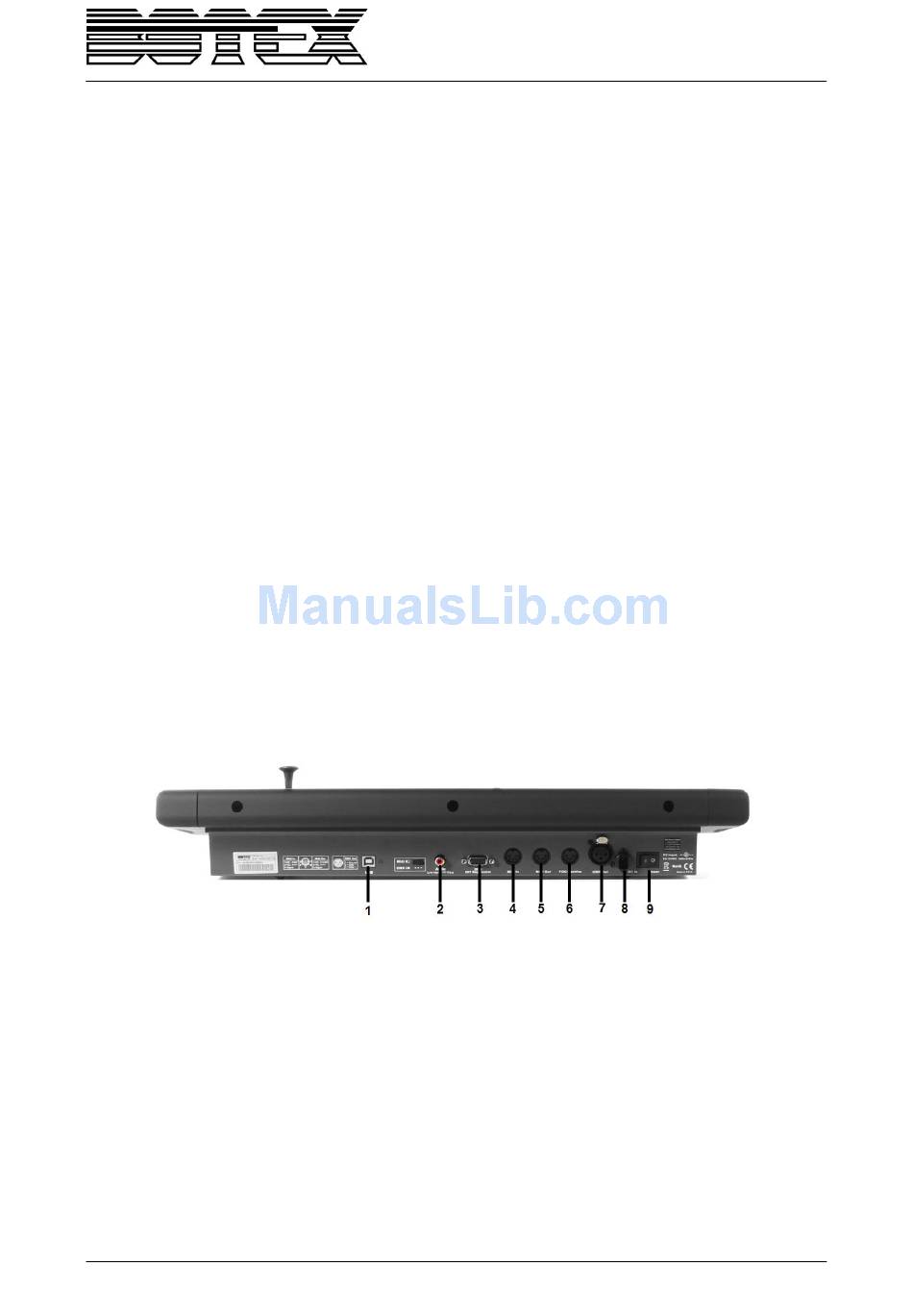

2.2. Rear view

1. USB Connector
2. Audio Input
To connect line level input for audio trigger. (0.1V – 1Vp-p)
3. DB-9 Connector
Use this input to connect an optional external chase step controller.
4. MIDI IN
This input is used to receive MIDI information from a midi sequencer or compatible device.
5. MIDI Out
This output is used to connect a midi device.
6. Fog machine connector
Use this connector to connect a compatible fog machine.
